| Operation Wavelength: | ITU 100GHz Grid | Fiber Type: | 250um Bare Fiber 0.9/2.0/3.0mm Loose Tube |
|---|---|---|---|
| Fiber Length: | 1M Or Customized | In/Out Connector: | FC SC LC ST |
| Number Of Channels: | 4/8/16CH | 1st Channel: | C21 C22 C23...C59 C60 C61 |
| Configuration: | Mux/Demux | Packages: | ABS Box, LGX Cassette, Rack Mounted |
| High Light: | fiber optic multiplexer,cwdm passive multiplexer |
||

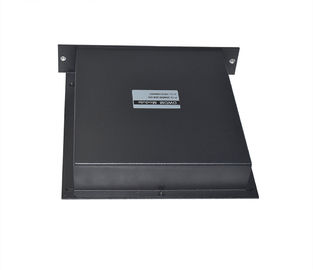

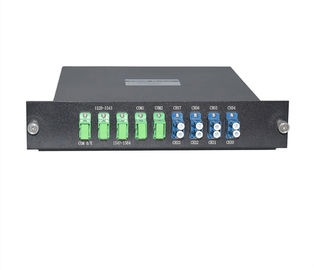

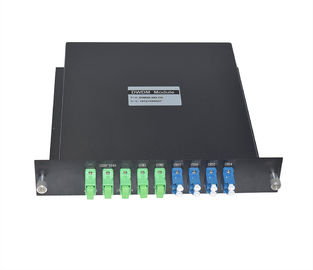

100GHz 2x4ch DWDM Mux/Demux plug-in Module,5G passive WDM/CWDM/DWDM in LGX box
UNIFIBER's 100GHz dense wavelength division multiplexer (DWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.
Features
DWDM MUX is based on the use of the wavelength ITU grid
High Channel Isolation
Low Insertion Loss
Optical Path Epoxy Free
Telcordia 1221 Compliant
Ultra Low TDL
Applications
DWDM Network
PON Networks
CATV Links
Fiber Optical Amplifier
Parameters
| Parameter | Unit | Value | |||||
| Central Wavelength | nm | ITU-T Grid | |||||
| Channel Spacing | nm | 0.8 (100GHz) | 1.6 (200GHz) | ||||
| Number of Channels | ---- | 8 | 16 | 8 | |||
| Channel Passband | Min | nm | 0.11 | 0.11 | 0.25 | ||
| Insertion Loss | Ty | dB | 3 | 4 | 3 | ||
| Max | dB | 2.5 | 3.5 | 3.5 | |||
| Ripple | Max | dB | 0.5 | 0.5 | 0.5 | ||
| Channel Uniformity | Max | dB | 1 | 1.5 | 1 | ||
| Isolation | Adjacent Channels | Min | dB | 25 | |||
| Non-adjacent Channels | Min | dB | 40 | ||||
| Directivity | Min | dB | 50 | ||||
| Optical Return Loss | Min | dB | 45 | ||||
| PDL | Max | dB | 0.15 | ||||
| Thermal Stability | Max | dB/°C | 0.007 | ||||
| Thermal Wavelength DriftMax | Max | nm/°C | 0.001 | 0.002 | |||
| Operating Temperature | °C | 0 to 70 | |||||
| Storage Temperature | °C | - 40 to 85 | |||||
| Package Dimension | mm | 140 100 13 | |||||
| Maximum Power Handling | mW |
300 |
|||||
