| Operation Wavelength: | ITU 100GHz Grid | Fiber Type: | 250um Bare Fiber 0.9/2.0/3.0mm Loose Tube |
|---|---|---|---|
| Fiber Length: | 1M Or Customized | In/Out Connector: | FC SC LC ST |
| Number Of Channels: | 4/8/16/18CH | 1st Channel: | C21 C22 C23...C59 C60 C61 |
| Configuration: | Mux/Demux | Packages: | ABS Box, LGX Cassette, Rack Mounted |
| High Light: | fiber optic multiplexer,cwdm passive multiplexer |
||

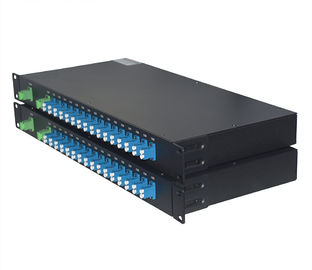

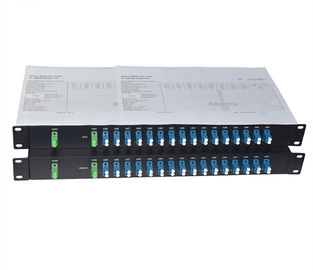

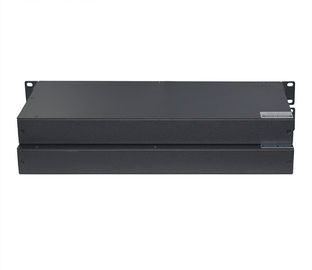

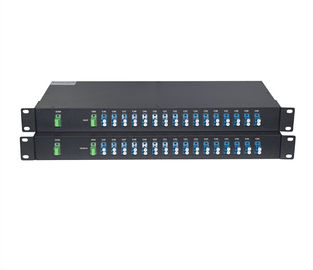

100G 16CH dense wavelength division multiplexer DWDM Mux/Demux dual fiber 19" rack-mounted for Long Haul Transmission
DWDM Mux Demux is usually used for long-haul transmission where wavelengths are packed tightly together over the C-band, up to 48 wavelengths in 100GHz grid(0.8nm) and 96 wavelengths in 50GHz grid(0.4nm). It's protocol transparent and suit applications including 10/1G Ethernet, SDH/SONET, 16/8/4/2/1G Fibre Channel, FTTx and CATV.
Features
100GHz ITU Channel Spacing
Low insertion loss
broadband transmission
high channel isolation
High stability and reliability
Epoxy-free optical path
Applications:
DWDM Network
Channel Add/Drop
CATV System
Wavelength Routing
Fiber Optical Amplifier
Parameters
| Parameters | |||||||
| Channel Space (GHz) | 100 | 200 | |||||
| Channel Number | 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16 | |
| Center Wavelength (nm) | ITU Grid | ||||||
| Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 | |||||
| Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 | |||||
| Fiber Type | SMF-28e with 900um loose tube or customer specified | ||||||
| IL (dB) | 1.4 | 2.5 | 3.8 | 1.7 | 2.9 | 3.8 | |
| Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 | |
| Isolation (dB) | Adjacent Channel | 25 | 28 | ||||
| Non-Adjacent Channel | 40 | ||||||
| PDL (dB) | 0.2 | ||||||
| PMD (ps) | 0.1 | ||||||
| RL (dB) | 45 | ||||||
| Directivity (dB) | 50 | ||||||
| Maximum Optical Power (mw) | 500 | ||||||
| Operating Temperature (°C) | -20~70 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| BOX Package (mm) | 100*80*10 or 140*115*18 | ||||||
| LGX Package | 1U,2U | ||||||
| 19’’ Rack mount Package | 1U | ||||||
