Product Details:
Payment & Shipping Terms:
|
| Operation Wavelength: | ITU 100GHz Grid | Fiber Type: | 250um Bare Fiber 0.9/2.0/3.0mm Loose Tube |
|---|---|---|---|
| Fiber Length: | 1M Or Customized | In/Out Connector: | FC SC LC ST |
| Number Of Channels: | 4/8/16/18CH | 1st Channel: | C21 C22 C23...C59 C60 C61 |
| Configuration: | Mux/Demux | Packages: | ABS Box, LGX Cassette, Rack Mounted |
| High Light: | fiber optic multiplexer,cwdm passive multiplexer |
||

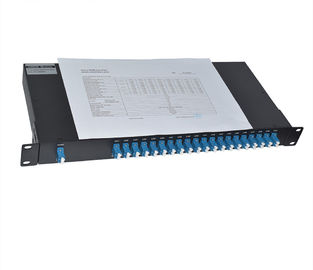

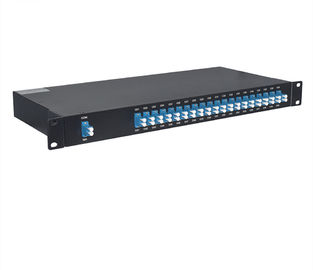

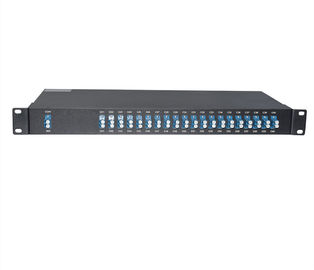

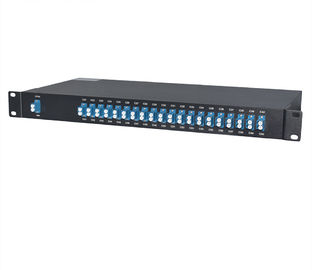

Customized 40CH AAWG DWDM Mux Demux dual fiber FMU 1U Rack Mount Dense Wavelength Division Multiplexer
Athermal Arrayed Waveguide Grating (AAWG) Dense Wavelength Division Multiplexer (DWDM) based on silica on silicon technology is designed for ITU channel spacing applications where no electrical power is required. It operates at 50GHz or 100GHz channel spacing ITU Grid DWDM wavelengths from 1526nm to 1565nm. The AAWG DWDM can be used to replace the filter-type DWDM Mux DeMux for cases where no power is available. The low cost and high performance make it the ideal solution for metro and long-haul DWDM applications. Gigalight provides a series of customized AAWG DWDM within standard metal box or rack mount to meet different requirements on Port Configuration (32 to 96 channels, 1310nm/monitoring ports available), Operating Wavelength, Fiber Type, Fiber Length, Input Connector, and Output Connector
Features
Advanced AAWG Gaussian Technology
Large channel number
Compact size
High stability and reliability
Low insertion loss, high isolation increase system margin
Applications
DWDM Networks
Metro and long haul network
Telecommunication
Parameters
| Wavelength | 40 channels C21-C60 | Channel Spacing | 100GHz (0.8nm) |
| Channel Passband | ±0.11nm | Insertion Loss | ≤ 4.5dB, 3.0dB typical (with connectors and adapters) |
| Insertion Loss @ 1% Mon | ≤ 26dB (with connectors and adapters) | Technology | AAWG (Gaussian) |
| Adjacent channel Isolation | ≥ 25dB | Non-adjacent channel Isolation | ≥ 29dB |
| Return Loss | ≥ 40dB | Directivity | ≥ 40dB |
| Polarization Dependent Loss | ≤ 0.3dB | Polarization Mode Dispersion | ≤ 0.1ps |
| Operating Temperature | -5°C~ +65°C | Storage Temperature | -40°C~+85°C |
| Net Weight | 4.5kg (10lb) | Dimensions (HxWxD) | 1.73"x19"x10.28" (44x481.8x261.2mm) |
