Product Details:
Payment & Shipping Terms:
|
| Material: | ABS Plastic | Capacity: | 12/24F |
|---|---|---|---|
| Connectors: | SC/FC/ST/LC | Pigtails: | 12 Colored Pigtails |
| Name: | Pigtail Fiber Splice Cassettes | Adapters: | SC/FC/ST Adapters |
| High Light: | fiber optic cable termination patch panel,optical distribution frame |
||

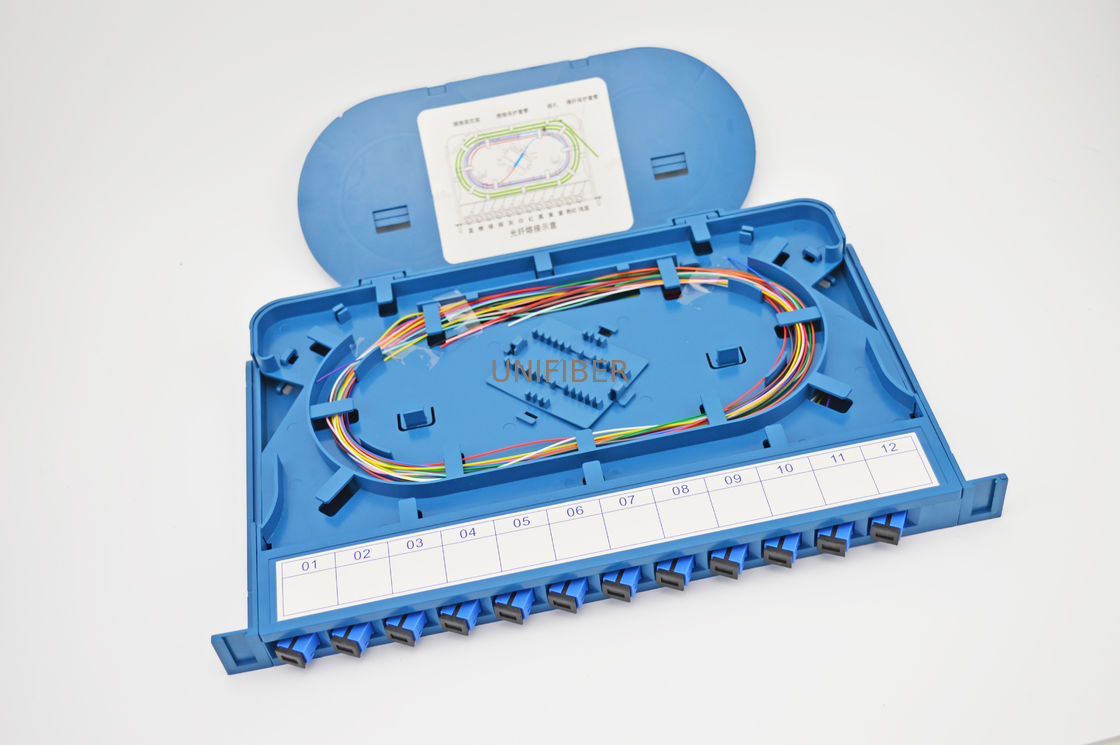

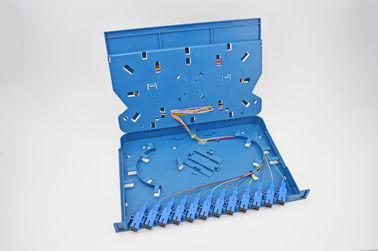

12/24 Fibers Fusion Splice Tray, Pigtailed fiber splice cassettes SC/FC/ST adapters for ODF Unit
Fiber splice trays provide the function of protection, storage and splicing fibers, connecting (LC/ST/FC/2LC). They allow fiber is installed in a guided and orderly, serving with the radius of curvature. The splice tray is made of plastic and designed for easy and efficient access to its interior, as well as to perform multiple, rapid interventions (open and close the tray) without requiring the use of special tools. The cover is easily assembled in the tray, in addition it provides protection to fiber stocks..
Features
Clear and smart design
Easy to installation
24 cores capacity
Excellence in fiber protection
Durable injection-molded plastic trays and covers
Center holes for mounting of the tray
Applications
Optical distribution frame
Fiber optic terminal box and FTTH terminal box
Fiber Optical Splice Closure
Fiber welding(fusion splice) or branch in ODF or corss cabinet
Cover can flip, overlay, expand capacity, easy and convenient to install and use.
Specification:
| Material | ABS |
| Tensile Strength(N) | 100 |
| Durability(dB) | ≤0.2 |
| Typical Change | 1000 Matings |
| Repeatability(dB) | ≤0.1 |
| Insertion Loss(dB) | ≤0.3 |
| Storage/Operating Temperature | -40°C to + 80°C |
