Product Details:
Payment & Shipping Terms:
|
| CH: | 4 | Connector: | SC/LC |
|---|---|---|---|
| Wavelength: | 1271/1291/1311/1331 | Package: | ABS Box |
| No. Of Fiber: | 8 | Application: | FTTX WDM System |
| Highlight: | WDM Mux Demux Module,Mux Demux Fiber Optic Multiplexer |
||

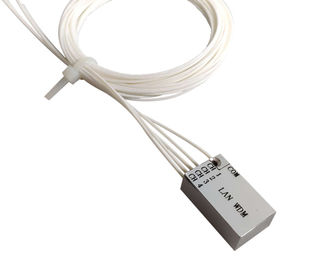

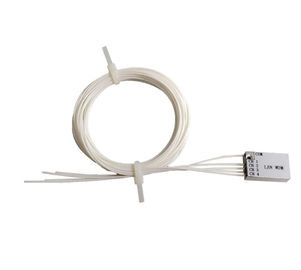

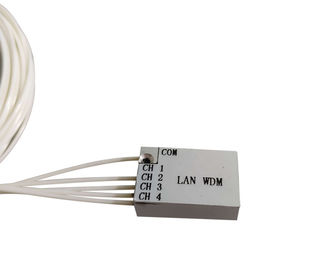

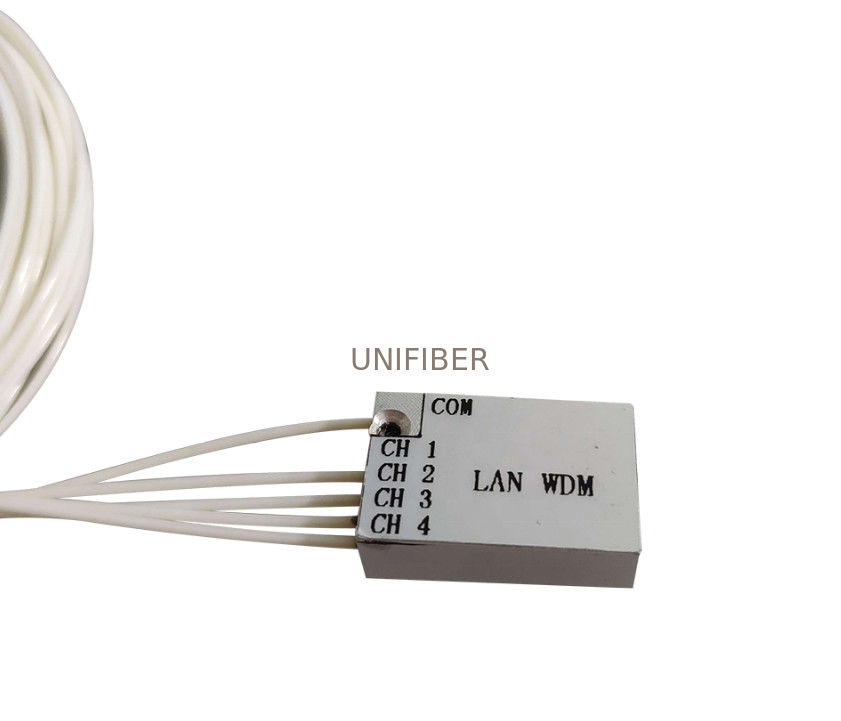

Ultra compact size 4CH LAN-WDM Mux Demux, ABS Pigtailed Module, LC/UPC
Single Fiber LAN-WDM Mux Demux is usually used for 5G fronthaul network where wavelengths are packed tightly together over the O-band, up to 8 wavelengths in 800GHz grid(4.5nm). Based on Thin-Film-Filter (TFF), this LAN-WDM Mux Demux features small form factor, ultra-low insertion loss, high channel isolation, and unparallel reliability. It incorporates the existing 4G network and manage highly dense fiber connections in 5G network in a cost-effective way.
Features
Low Insertion Loss
High Stability and reliability
High Channel Isolation
Ultra compact size
Epoxy-free on Optical Path
Applications
WDM Network
SFP transceivers
Data communication
40G or 100G applications
Specifications
| Parameter | 4 Channel Module | |
| Channel Wavelength(nm) | 1271/1291/1311/1331 | |
| Center wavelength Accuracy(nm) | +/-0.5 | |
| Channel Spacing(nm) | 20 | |
| Channel Passband (nm) | +/-6.5 | |
| Insertion Loss(dB) | ≤1.4 | |
| Channel Ripple(dB) | ≤0.3 | |
| Isolation (dB) | Adjacent | >30 |
| Non-adjacent | >45 | |
| Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | |
| Wavelength Temperature Shifting(nm/℃) | <0.002 | |
| Polarization Dependent Loss(dB) | <0.2 | |
| Polarization Mode Dispersion | <0.2 | |
| Directivity (dB) | >50 | |
| Return Loss (dB) | >45 | |
| Maximum Power Handling(mW) | 300 | |
| Operating Temperature(℃) | -10~+80 | |
| Storage Temperature(℃) | -40~+85 | |
| Package Dimension(mm) | L20*W12.4*H6.4 |
