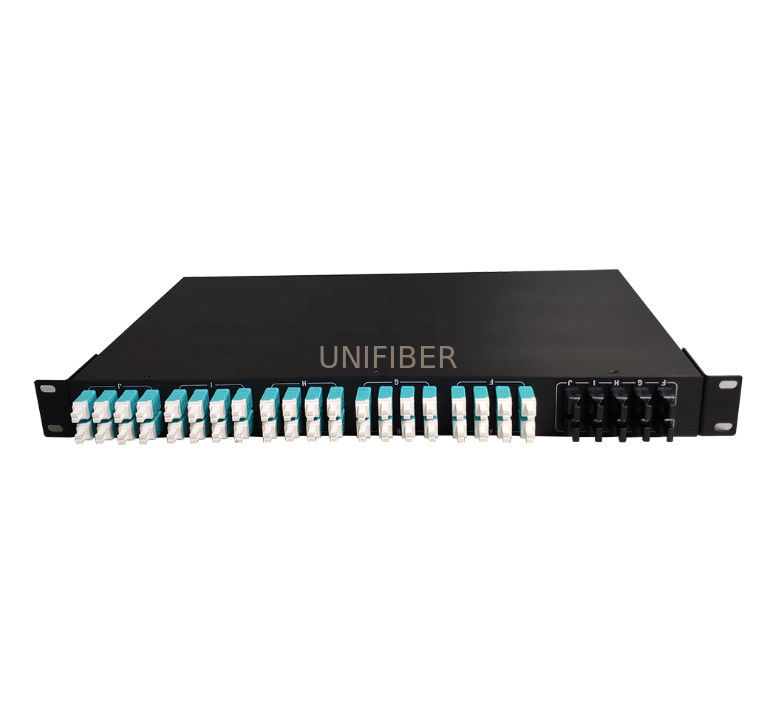

1U 19 Rack Mount MTP/MPO Fiber Optic Patch Panel

MTP/MPO fiber patch panel 1U 19 rack mount 96 ports

MPO Fiber Optic Patch Panel is used for trunk cable connection and distribution cable management in distribution area of MDA, IDA or HAD data centers.it could be installed in 19 inch racks and cabinets. It could accommodate transition modules or MPO adapter front panels.

FEATURES
Could install in 19 inch rakes and cabinets, manage MPO cassette modules
Through modular design to realize the growth of port number and provide high density connection capabilities
1U MPO Fiber Optic Patch Panel can accommodate 4pcs of MPO cassette modules.MPO cassette modules can install duplex LC adapters with the capacity up to 96 fibers maximum, simplex SC adapters with the capacity up to 48 fibers maximum and MPO adapters with the capacity up to 288 fibers maximum
Made of premium cold rolled steel
The steel is processed by degreasing,pickling, rustproof phosphating, cleaning with water and electrostatic spraying. The thickness of spraying is 80 Mm-100μm and comply with European RoHS regulations
MPO patch Panel includes cable management and labels
Convenient installation and easy management

The density is more than 4 times than traditional splicing patch panels. It saves much room of cabinets and improve use ratio of cabinets, creating value for data center construction
Modular design is easy for upgrade and maintenance
Including 1U/2U/3U tidy fiber frame frame design
