Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 1270nm~1610nm | Package: | 1X2 Glass Tube |
|---|---|---|---|
| Pigtail Type: | 250um Bare Fiber | Connector Type: | FC,SC,LC,ST Or Customized |

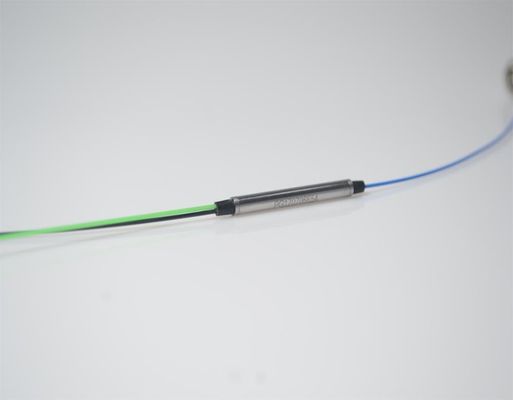

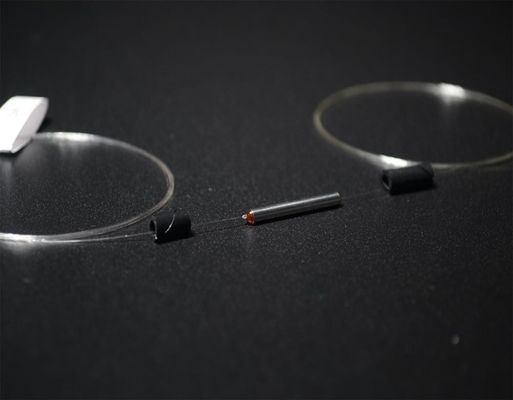

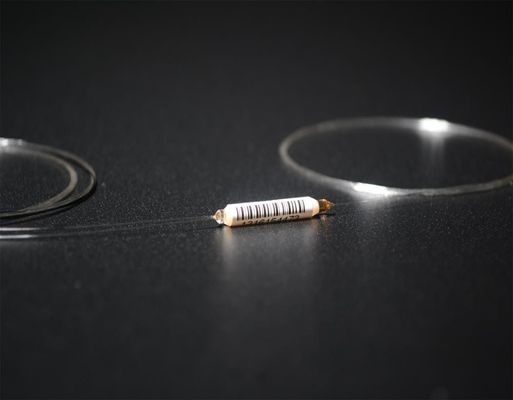

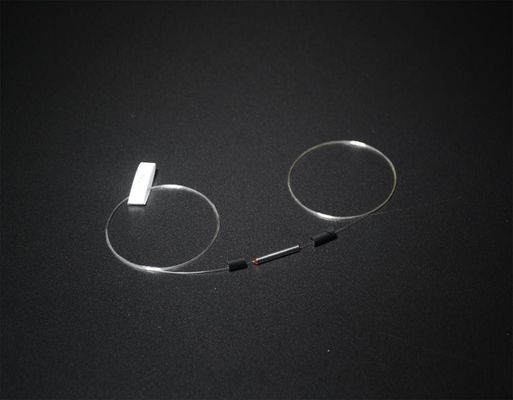

1X2 Glass Tube CWDM Device 3 ports WDM filter 1270nm~1610nm
Glass tube Fiber optic 1x2 mini CWDM device 3 ports WDM filter includes wavelength from 1270nm, 1290nm,1310nm, 1330nm, 1350nm, 1370nm, 1390nm, 1410nm, 1430nm, 1450nm, 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm. Or 1271, 1291, 1311, 1351, 1371, 1391, 1411, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611
Features
Compact Design
Wide passband
Low insertion loss & PDL
High channel isolation
High stability and reliability
Applications
Optical communication systems
Optical devices
Wavelength division multiplexing systems
PON Networks
| Parameter | Multiplexer | Demultiplexer |
| Operating central wavelength | 1270nm – 1610 nm | |
| Central wavelength accuracy | ± 0.5 nm | |
| Channel spacing | 20 nm | |
| Passband at -0.5dB | Minimum 13 nm | |
| Insertion Loss (dB) | pass<0.6dB, reflection<0.4dB | |
| Channel uniformity | Maximum 1 dB | |
| Channel ripple | Maximum 0.3 dB | |
| Adjacent isolation | N/A | Minimum 30 dB |
| Non-adjacent isolation | N/A | Minimum 40 dB |
| Insertion loss temperature sensitivity | Maximum 0.003 dB/ºC | |
| Wavelength temperature shifting | Maximum 0.002 nm/ ºC | |
| Polarization temperature loss | Maximum 0.1 dB | |
| Polarization mode dispersion | Maximum 0.1 ps | |
| Directivity | Minimum 50 dB | |
| Return loss | Minimum 45 dB | |
| Power handling | 500 mW | |
| Operating temperature range | -5 to 76 ºC | |
| Storage temperature range | -40 to 85 ºC | |
