Product Details:
Payment & Shipping Terms:
|
| Material: | SPCC(cold Rolled Steel Sheet) | Operating Temperature: | -20°C~+55°C |
|---|---|---|---|
| Painting Finish: | Powder Coat Matt Finish | Painting Color: | 9005: RAL Black |
| Fiber Mode: | G657A1; OM1; OM2; OM3; OM4 | Capacity: | 144F |

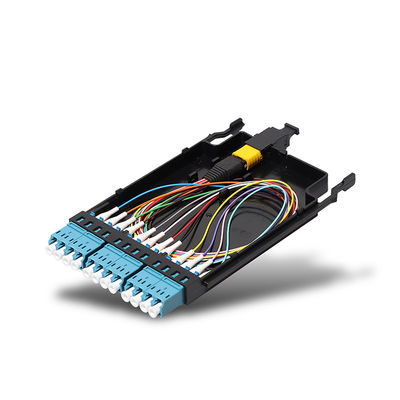

| Cassettes: | 12 X12F MTP-LC Module | Adapter: | Quad LC |
| High Light: | SPCC Optical Fiber Patch Panel,LC Adapter Optical Patch Panel |
||

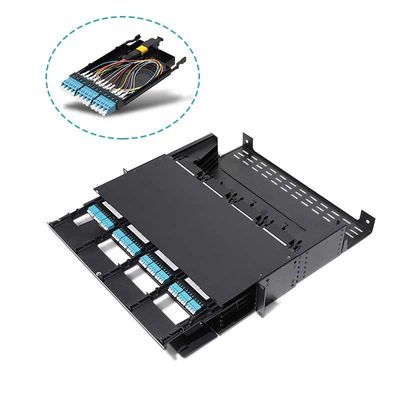

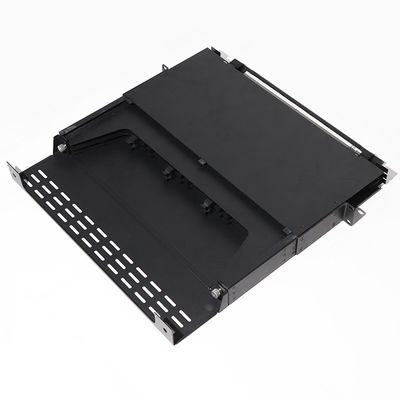

MTP/MPO fiber patch panel, 1U 144 core with 12 x 12F MTP/MPO cassettes
Fiber optic enclosure houses, organizes, manages, and protects fiber optic cable, terminations, splices, connectors and patch cords. The 1U enclosure houses 3 independently sliding drawers, each drawer is able to hold MTP-12 cassettes or fiber adapter panels by default.
Features
Up to 144 fibers in 1U space.
Matching for FHX series MTP-12 cassettes
Adjustable mounting brackets are better suited to cabinets.
Smooth slide rail allows the drawer to extend steady in a straight line.
Application
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Specification
| Model | Capacity | Material | Dimension | Description | Color |
| UNF144 | 144Core | Metal | 44*443*451mm | 1u rack + 12 x12F MTP-LC module boxes | RAL9005 |
