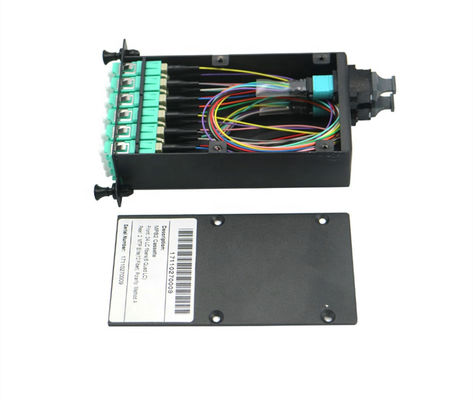

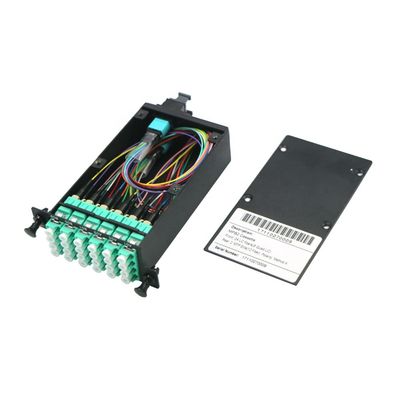

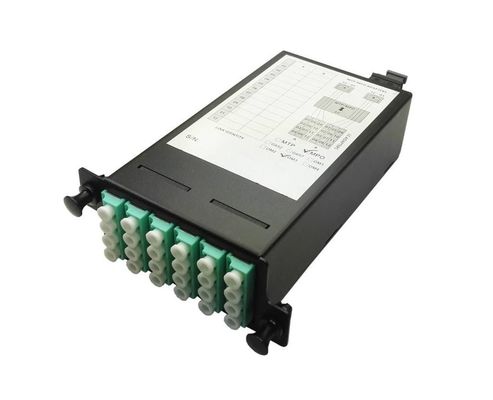

24F Quad LC OM3 24 Core MPO LGX Fiber Optic Box For 40G/100G

24F Quad LC OM3 24 Core MPO LGX Fiber Optic Box For 40G/100G
24F Quad LC OM3 24 Core MPO LGX Fiber Optic Box For 40G/100G 24F Quad LC OM3 24 Core MPO LGX Fiber Optic Box For 40G/100G 24F Quad LC OM3 24 Core MPO LGX Fiber Optic Box For 40G/100G

Large Image :  24F Quad LC OM3 24 Core MPO LGX Fiber Optic Box For 40G/100G

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: MTP to LC Cassette Module
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Individual carton box
Delivery Time: 5~7business days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Material: SPCC(cold Rolled Steel Sheet) Operating Temperature: -20°C~+55°C
(front)Adapter Type: LC Quad (w/o Flange)×6Pcs (front)Adapter Color: Aqua: OM3/OM4 ; Blue: SM-UPC ; Green: SM-APC
(rear)Adapter Type: MPO/MTP(Full Flange/Opposed) (rear)Adapter Color: Black
Connector A: SM :LC-UPC,0.9mm Or LC-APC,0.9mm MM:LC-UPC,0.9mm Connector B: SM : MPO/MTP(male)-APC MM: MPO/MTP(male)-PC
Polarity: TypeA Weight: 0.22kg
Painting Finish: Powder Coat Matt Finish Painting Color: 9005: RAL Black
Fiber Mode: G657A1; OM1; OM2; OM3; OM4 Product: MTP To LC Cassette
High Light:

MPO LGX Fiber Optic Box

,

24F Fiber Optic Box

,

OM3 Optical Fiber Patch Panel

24F MTP to LC Cassette With Quad LC OM3, 24core MPO LGX Box For 40G/100G

MTP/MPO cassettes are used to interconnect MTP/ MPO backbones with LC/SC/ST/FC patching. Unifiber offers a wide range ofsingle-mode and multi-mode MTP/MPO cassettes with 12-strand or 24-strand configuration. The standard MTP/MPO cassettes can accommodate 12 and 24 port configurations.
The fiber system has a higher and higher demand on fiber optic connectors with the changes from single mode fiber to multi-mode fiber, from 10G to 40G, 100G. Ethernet transmission of 40G and 100G also becomes the developing trend in data center cabling system. Traditional connectors are more and more difficult to achieve Multi-Fiber and High- performance. According to the International standard, high density MTP/MPO connector has been a standard port in the Ethernet transmission of 40G and 100G.

UNIFIBER develops a high density MTP/MPO cabling solution with it’s constant innovation in the field. The MTP/MPO is a standard mini, high- density connector, equipped with Multi-fiber cable, which makes the connection stable and reliable. The connection and testing of high density connector with ribbon cable are finished in factory, so that it can be plugged and played with the equipments on site directly, and support the rapid deployment at users’ data center, which makes MTP/MPO cabling system become an ideal solution with the growing demands on high-capacity cabling data center. Simple installation, compact design, high precision, plug and play, etc. UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;



Feature
Modules are made of cold rolled steel sheet.
Module comes up to 24 LC or 12 SC adapter ports.
Factory pre- terminated module, plug and play on site.
1U patch panel (MP2)capacity come up to 120F fully loaded with 5 modules.



Application
Optical Access Network (OAN)
Data Processing Centers
Cable Television(CATV)
Local Area Network(LAN)



Connector Type
12-Fiber Or 24Fiber MPO/MTP (non-pinned)
Polish
PC(MM); APC(SM)
Housing Colour
MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical (MTP/MPO)
≤ 0.10 dB
Insertion loss, max. (MTP/MPO)
≤ 0.3 dB
Return loss (MTP/MPO SM)
PC >55dB; APC> 60dB
Insertion Loss, Typical (LC/SC)
≤ 0.10 dB
Insertion loss, max. (LC/SC)
≤ 0.3 dB
Return loss (LC/SC SM)
PC >55dB; APC> 65dB
Durability(500 Matings)
< 0.2dB



24F Quad LC OM3 24 Core MPO LGX Fiber Optic Box For 40G/100G 0
