Product Details:
Payment & Shipping Terms:
|
| Material: | SPCC(cold Rolled Steel Sheet) | Operating Temperature: | -20°C~+55°C |
|---|---|---|---|

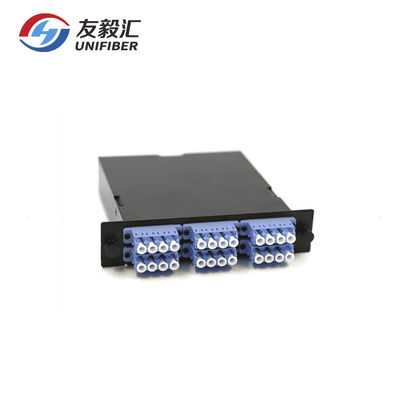

| (front)Adapter Type: | LC-HL-DX ×6Pcs,LC- QT ×6Pcs,SC- DX ×6Pcs | (front)Adapter Color: | Aqua: OM3/OM4 ; Blue: SM-UPC ; Green: SM-APC |
| (rear)Adapter Type: | 2Pcs MPO/MTP(Full Flange/Opposed) | (rear)Adapter Color: | Black |
| Connector A: | SM :LC-UPC,0.9mm Or LC-APC,0.9mm MM:LC-UPC,0.9mm | Connector B: | SM : MPO/MTP(male)-APC MM: MPO/MTP(male)-PC |
| Polarity: | TypeA | L×W×H(mm): | 129×141.5×30mm |
| Painting Finish: | Powder Coat Matt Finish | Painting Color: | 9005: RAL Black |
| Fiber Mode: | G657A1; OM1; OM2; OM3; OM4 | Product: | 24 Fiber Mpo To Lc Cassette Module |
| Highlight: | LGX Footprint Fiber Patch Panel,Mpo To Lc Fiber Patch Panel,Pre Assembled MPO MTP Modules |
||

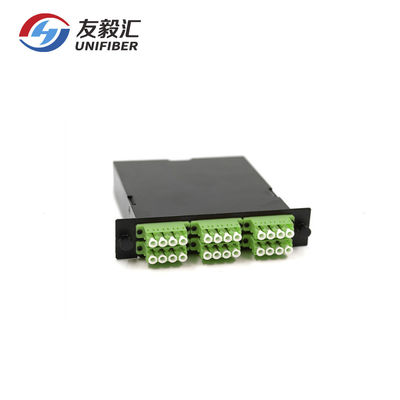

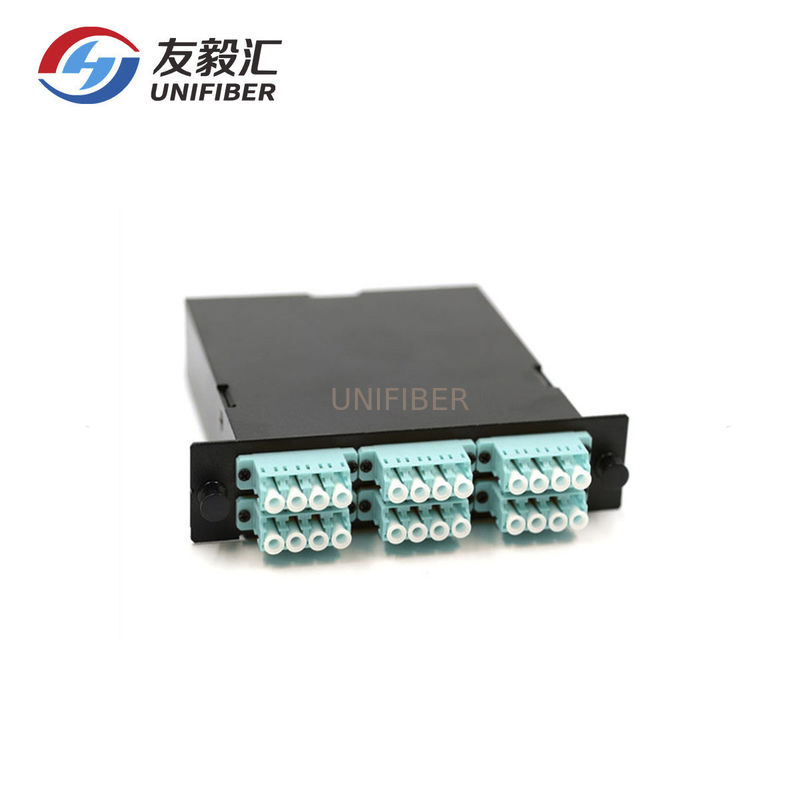

24 fiber mpo to lc cassette module, multimode 10G OM3 50/125um, LGX Footprint, Type A, 24 LC Ports
Pre-assembled MPO MTP modules improve the speed of installation. Modules with external MPO/MTP ports can be easily and efficiently connected to trunks or patchleads. Single MPO/MTP mating action provides instant connection for 24 fibres at the time. UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;
Feature
Standard and Elite low loss MPO/ MTP connectors,
SM and MM (OM3/OM4) Versions.

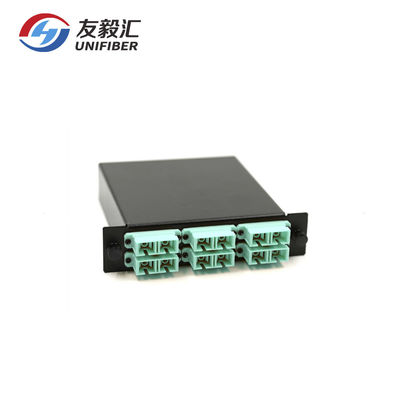

Can be installed 24 or 12 (LC) fibres,12 SC fibers in LGX module.
24 Fibre ferrule MPO/MTP interface.
Premium LC Low Loss terminations.
Aplication
Data Centre Infrastructure
Storage Area Network- Fiber Channel
Parallel Optics
InfiniBand
Emerging 40 and 100Gbps Protocols
Specification:
.
