Product Details:
Payment & Shipping Terms:
|
| Product: | 80-CH 50Ghz Athermal AWG DWDM Module In 1U Rackmount | Configuration: | Mux,Demux |
|---|---|---|---|
| First Channel: | C21 C22 C23...C59 C60 C61 | Number Of Channel: | 80 |
| Fiber Type: | 250um,0.9mm | In/Out Connector: | LC/UPC |
| High Light: | Athermal AWG DWDM Module,50Ghz AWG DWDM Module,80CH DWDM Demux Multiplexer |
||

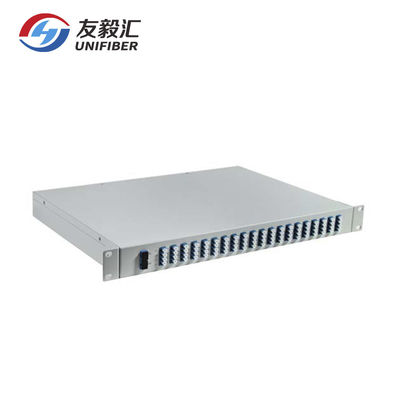

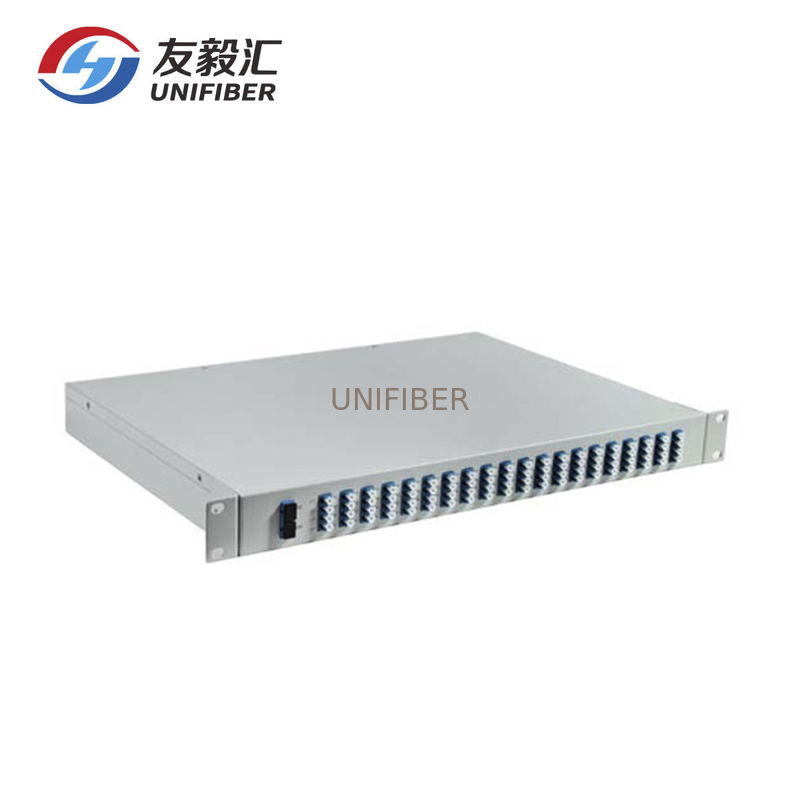

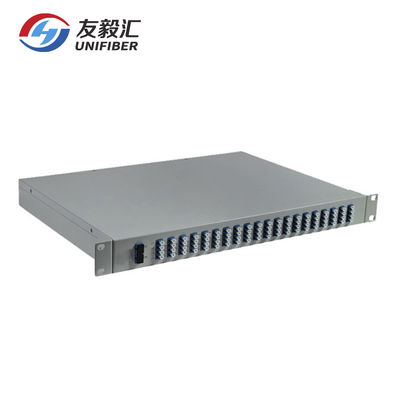

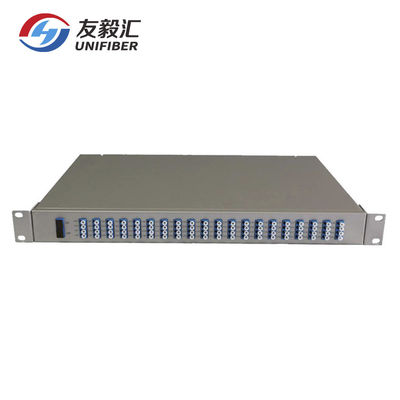

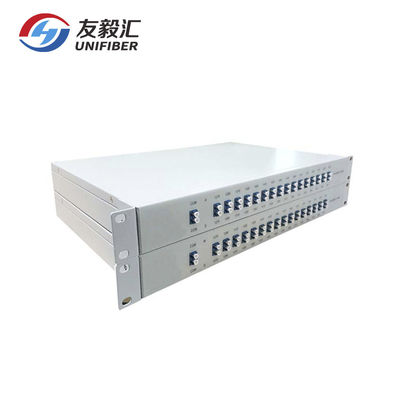

80-CH 50Ghz Athermal AWG DWDM Module Mux/Demux is a highperformance DWDM mux/demux device operating on 50GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics.These AWG offer low insertion loss,excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package
Features
MUX/DEMUX Functionality
Compact Package
Multi-channel Number
Telcordia GR-1209/1221 compliant
Athermal Design, Electrical Power is Not Required
Low Insertion Loss,Low PDL,High Channel Isolation
Application
DWDM Transmission
Metro Area Networks
Long-haul Networks
PON Networks
Building Blocks for ROADM
Building Blocks for VMUX
Specification
|
Parameters/参数
|
Condition/条件
|
Specs/规格
|
Units
|
||
|
MIN
|
Typ.
|
MAX
|
单位 | ||
|
通道数/Number of Channels
|
96
|
96
|
CH
|
||
|
通道间隔/Number Channel Spacing
|
50GHz
|
50
|
GHz
|
||
|
中心波长/Center Wavelength
|
ITU frequency, measured in vacuum.
|
C-band
|
nm
|
||
|
通道带宽/Clear Channel Passband
|
Centered at each ITU channel frequency
|
±6.25
|
GHz
|
||
|
波长精度/Wavelength Stability
|
Maximum range of the wavelength error of all channels and temperatures in average polarization.
|
±0.05
|
nm
|
||
|
-1dB带宽/-1dB Channel Bandwidth
|
Clear channel bandwidth defined by passband shape. For each Channel.
|
0.2
|
|
|
nm
|
|
-3dB带宽/-3dB Channel Bandwidth
|
Clear channel bandwidth defined by passband shape. For each channel.
|
0.28
|
|
|
nm
|
|
ITU波长通道插损
|
Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations
|
|
|
12
|
dB
|
| Optical Insertion Loss at ITU grid | with connectors. | ||||
|
相邻通道隔离度
|
Ratio of peak transmission to the maximum transmission over both adjacent ITU wavelengths
|
25
|
|
|
dB
|
| Adjacent Channel Isolation | |||||
|
非相邻通道隔离度
|
Ratio of peak transmission in channel
|
30
|
|
|
dB
|
| Non-Adjacent, Channel Isolation | passband to the maximum transmission over all non-adjacent ITU wavelength | ||||
|
总串扰/ Total Crosstalk
|
Ratio of power in channel to power in all other ITU wavelength
|
20
|
|
|
dB
|
|
插损一致性
|
The difference between the maximum and minimum of passband across all channels
|
|
0.8
|
1.3
|
dB
|
| Insertion Loss Uniformity | |||||
|
方向性/Directivity(Mux Only)
|
Ratio of reflected power out of any channel(other than channel n)to power in from the input channel n
|
40
|
|
|
dB
|
|
回损/Optical Return loss
|
Input & output ports
|
45
|
|
|
dB
|
|
偏振相关损耗
|
Worst-case value measured in ± 20GHz around ITU wavelength for each port.
|
|
0.3
|
0.5
|
dB
|
| Polarization Dependent Loss in Clear Channel Band | |||||
|
偏振模式色散
|
Maximum differential group delay within reference ITU wavelength
|
|
|
1
|
ps
|
| Polarization Mode Dispersion | |||||
|
色度色散/Chromatic Dispersion
|
Maximum change rate of group delay versus wavelength within reference ITU wavelength
|
-20
|
|
20
|
ps/nm
|
|
最大输入光功率
|
Maximum continuous optical power
|
|
|
500
|
mW
|
| Maximum Input Optical Power | |||||
|
Channel
|
ITU
|
Frequency
|
Wavelength
|
Channel
|
ITU
|
Frequency
|
Wavelength
|
|
No.
|
Channel
|
THz
|
nm
|
No.
|
Channel
|
THz
|
nm
|
|
1
|
60
|
196
|
1529.553
|
25
|
36
|
193.6
|
1547.715
|
|
2
|
59
|
195.9
|
1530.334
|
26
|
35
|
193.5
|
1548.515
|
|
3
|
58
|
195.8
|
1531.116
|
27
|
34
|
193.4
|
1549.315
|
|
4
|
57
|
195.7
|
1531.898
|
28
|
33
|
193.3
|
1550.116
|
|
5
|
56
|
195.6
|
1532.681
|
29
|
32
|
193.2
|
1550.918
|
|
6
|
55
|
195.5
|
1533.465
|
30
|
31
|
193.1
|
1551.721
|
|
7
|
54
|
195.4
|
1534.25
|
31
|
30
|
193
|
1552.524
|
|
8
|
53
|
195.3
|
1535.036
|
32
|
29
|
192.9
|
1553.329
|
|
9
|
52
|
195.2
|
1535.822
|
33
|
28
|
192.8
|
1554.134
|
|
10
|
51
|
195.1
|
1536.609
|
34
|
27
|
192.7
|
1554.94
|
|
11
|
50
|
195
|
1537.397
|
35
|
26
|
192.6
|
1555.747
|
|
12
|
49
|
194.9
|
1538.186
|
36
|
25
|
192.5
|
1556.555
|
|
13
|
48
|
194.8
|
1538.976
|
37
|
24
|
192.4
|
1557.363
|
|
14
|
47
|
194.7
|
1539.766
|
38
|
23
|
192.3
|
1558.173
|
|
15
|
46
|
194.6
|
1540.557
|
39
|
22
|
192.2
|
1558.983
|
|
16
|
45
|
194.5
|
1541.349
|
40
|
21
|
192.1
|
1559.794
|
|
17
|
44
|
194.4
|
1542.142
|
41
|
20
|
192
|
1560.606
|
|
18
|
43
|
194.3
|
1542.936
|
42
|
19
|
191.9
|
1561.419
|
|
19
|
42
|
194.2
|
1543.73
|
43
|
18
|
191.8
|
1562.233
|
|
20
|
41
|
194.1
|
1544.526
|
44
|
17
|
191.7
|
1563.047
|
|
21
|
40
|
194
|
1545.322
|
45
|
16
|
191.6
|
|
|
22
|
39
|
193.9
|
1545.322
|
46
|
15
|
191.5
|
|
|
23
|
38
|
193.8
|
1546.119
|
47
|
14
|
191.4
|
|
|
24
|
37
|
193.7
|
1546.917
|
48
|
13
|
191.3
|
|
XAWG
|
X
|
XX
|
X
|
XXX
|
X
|
X
|
X
|
XX
|
|
Type
|
Band
|
Number of Channels
|
Spacing
|
1st Channel
|
Chip Type
|
Package
|
Fiber Length
|
In/Out Connector
|
| (Total Length) | ||||||||
|
AAWG=
|
C=C-Band
|
16=16-CH
|
1=100G
|
C62=C62
|
G=Gaussian
|
M=Module
|
1=0.5m
|
0=None
|
| Athermal AWG | L=L-Band | 32=32-CH | 2=200G | H61=H61 | F=Flat Top | R=Rack | 2=1m | 1=FC/APC |
| D=C+L-Band | 40=40-CH | 5=50G | C60=C60 | X=Special | 3=1.5m | 2=FC/PC | ||
| X=Customize | 48=48-CH | X=Special | H59=H59 | 4=2m | 3=SC/APC | |||
| 96=96-CH | . | X=Specify | 4=SC/PC | |||||
| XX=Special | XXX=special | 5=LC/APC | ||||||
| 6=LC/PC | ||||||||
| 7=ST/UPC | ||||||||
| X=Specify |
