Product Details:
Payment & Shipping Terms:
|
| Product: | 3U 144 Core Duplex SC Rack Mount Enclosure Box | Material: | Metal Cold Rolled Steel |
|---|---|---|---|
| Dimension: | 19" X 3U Height | Connector: | Duplex SC |
| Color: | Black Or Gray | Installation: | 19 Inch Rack Mount |
| Highlight: | 144core Rack Mount Enclosure Box,3U Rack Mount Enclosure Box,19in Drawer Optical Patch Panel |
||

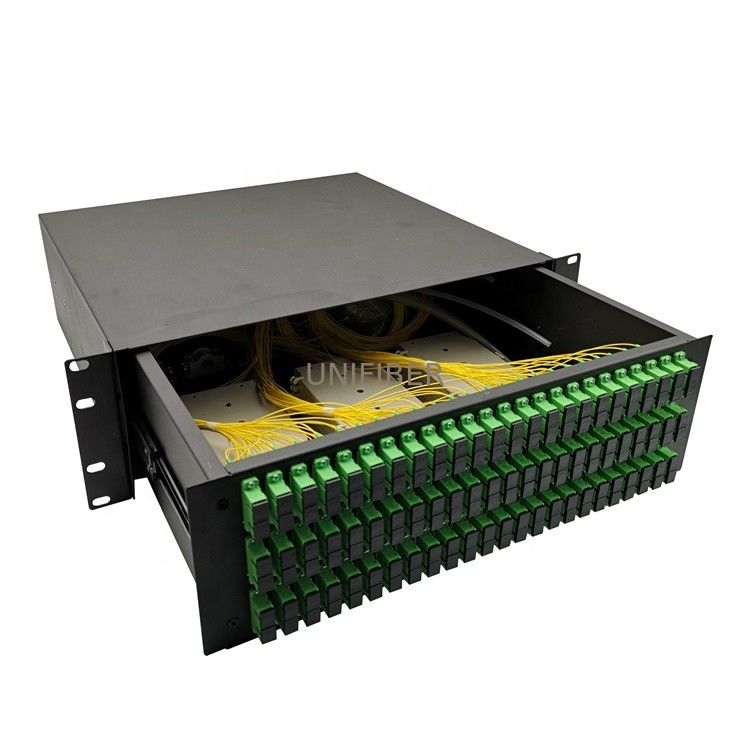

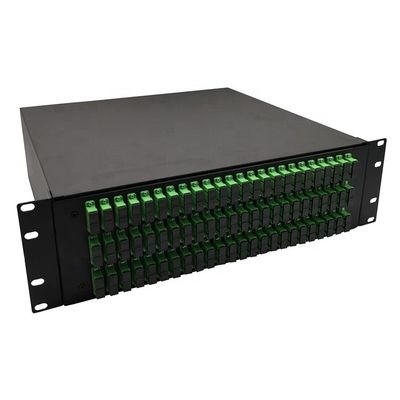

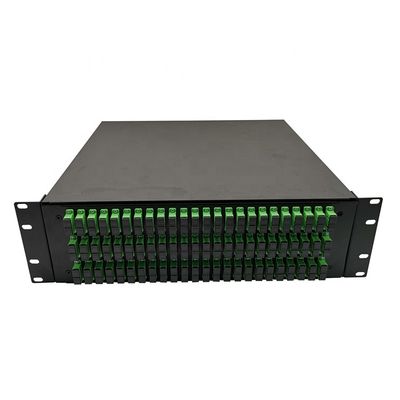

This 3U 144 Core Duplex SC Rack Mount Enclosure Fiber Optic Termination Box/Patch Panel(OTB) is mainly used as terminal equipment of fiber optical cable for optical fiber wiring, fixation, fusion, and patching.
Features:
Capacity: 12-24-36-48-72-96-144 fibers, etc.
19/23inches: 1U to 5U standard installation
Color: Black, White, and grey, or customized
Several adapters can be installed: FC, SC, ST, LC
Cable ports suitable for single, ribbon and bunchy fiber cables
Size: 19 inch X3U X400mm
Application:
Easy to operate and convenient maintenance
Excellent mechanic performance, solid and durable
It is mainly used in the CATV, telecommunication
equipment room and network equipment room.
Specification:
| Name | 3U 144 Core Duplex SC/LC Rack Mount Enclosure Box |
| Height | 3U |
| Capacity | 144 Fibers LC/SC Duplex |
| Material | Cold-rolled Steel |
| Installation | Drawer type Rack-mount |
| Splice Tray Capacity | 12 fibers/tray; 24fibers/tray |
| Size | 19 inch X3U X400mm |
