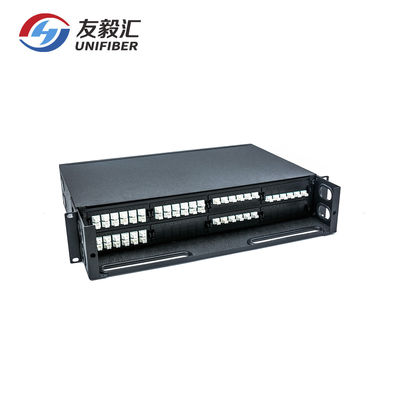

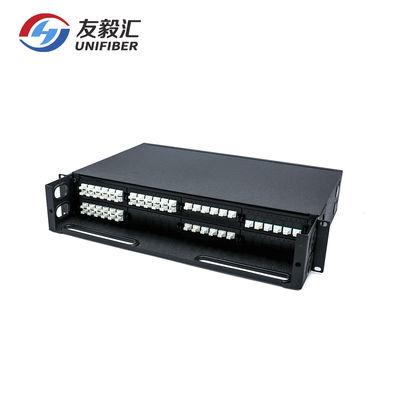

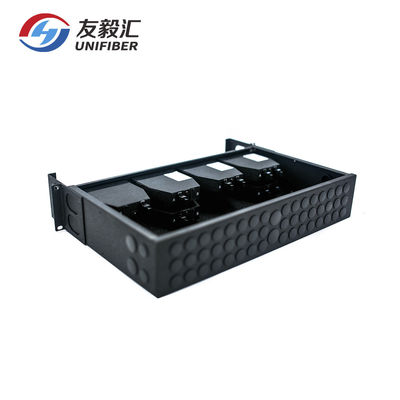

8x24 LC Duplex 2U 192core MPO To LC Fiber Patch Panel

The panel is made with cold rolled sheet and frosted painting; cassette is made with aluminum, and adapter plate is made with plastic. the cassette is fixed on the panel with pressing valve MPO fiber optic patch panel, SC/FC/ST/LC,UPC,APC connectors,1U,2U,4U, we are manufacturer of MPO fiber optic patch panels and cassettes, MPO cable assemblies and components. Typical MPO fiber optic patch panel is with 1U 19 standard size, inside the patch panel, it can be splice trays with 1XN MPO fiber cableassemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel, the 1U MPO fiber patch panel can be with max 48 cores or 72 cores output optical strand, the output connectors can be SC/FC/ST/LC.UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;

Features:

19"rack mount, the panel and modules are made of cold rolled steel sheet.
Modular in design with higher density, special mini module comes up to 24 LC or 12 SC adapter ports and switch to MTP/MPO connection.
1U patch panel capacity come up to 120F fully loaded with 5 modules. and 2U capacity come up to 288F fully loaded with 12 modules, save more space for large data centers and reduce combined cost.
Unique tool-free installation design for easy and fast assembly and installation.
Factory pre- terminated module, plug and play on site, no need fiber splicing and cable wiring which saves labor cost.
This system can also support application of optoelectronic hybrid with Standard RJ45 keystone jack , achieve the function of network distribution and cover a wider application.
Front cable management function is convinent for managing cable and identifying link label.

Application

High integrated equiement and devices
High density cable wiring system
Switching between trunk line and distribution line
Connection of trunk line
Local area networks
Wide area networks

Specification
