3 Ports 1x2 Passive CWDM Components 1270~1610nm LC APC

3 Ports 1x2 Passive CWDM Components 1270~1610nm LC APC
3 Ports 1x2 Passive CWDM Components 1270~1610nm LC APC 3 Ports 1x2 Passive CWDM Components 1270~1610nm LC APC 3 Ports 1x2 Passive CWDM Components 1270~1610nm LC APC 3 Ports 1x2 Passive CWDM Components 1270~1610nm LC APC

Large Image :  3 Ports 1x2 Passive CWDM Components 1270~1610nm LC APC

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: 1x2 Passive CWDM Components
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable

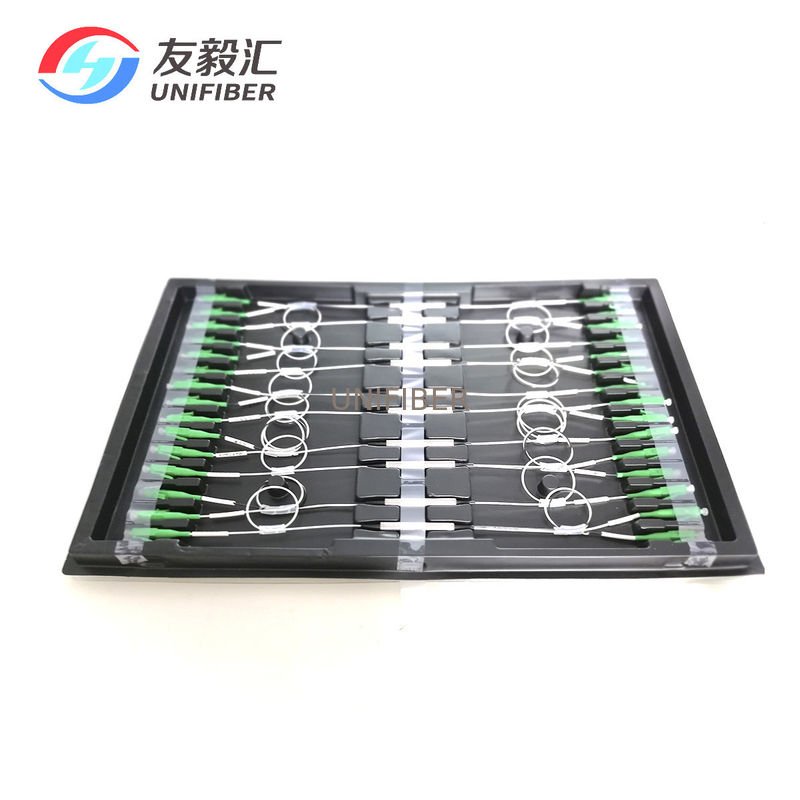

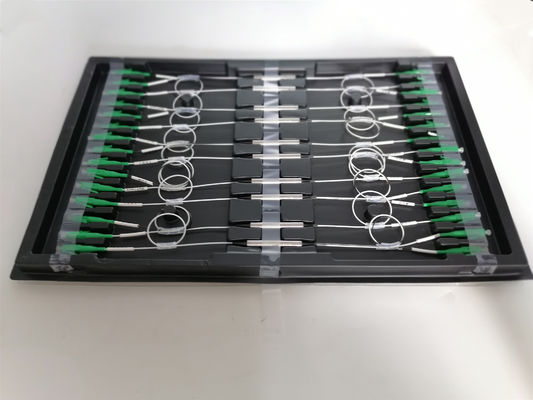

Packaging Details: Blister Case
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: 1x2 Passive CWDM Components Operation Wavelength: 1270nm~1610nm Or 1271~1611nm
Channel Space: 20nm Channel Passband: ±7.5 Or ±6.5nm
Connector: LC/APC Dimension: 5.5*38mm
High Light:

3 Ports Passive CWDM Components

,

1x2 Passive CWDM Components

,

LC APC Fiber Optic Multiplexer

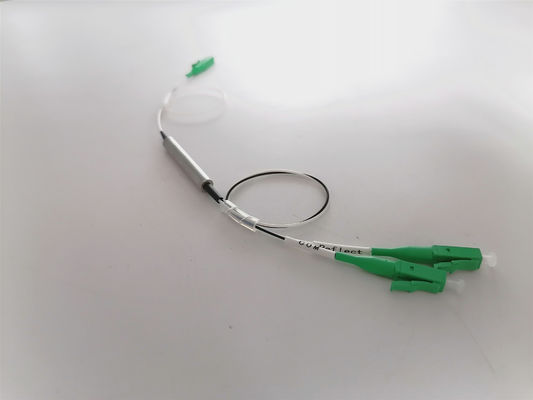

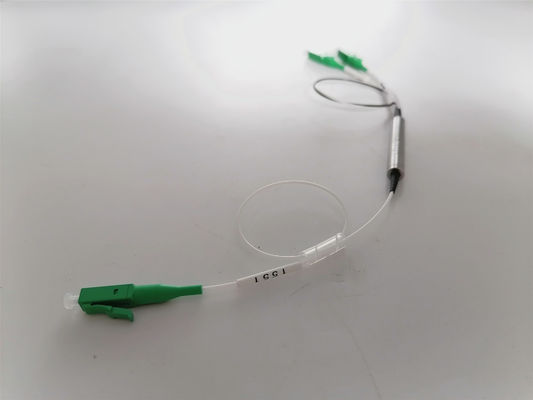

Three-port CWDM device is mainly used in passive wavelength division multiplexing module. It is a kind of wavelength division multiplexing technology based on TFF (thin film filter). It has a variety of package sizes and wavelength options. It consists of three ports: COM, Pass and Reflect. The wavelength range meets the ITU-I G.695 standard. It can multiplex, demultiplex or add-drop multiplexing different light in WDM system, as well as increasing signal transmission speed and communication capacity. CWDM device is widely used in telecommunications, radio and television, enterprise network, campus network and other fields.



Features Applications
Low Insertion Loss Line monitoring
Wide pass band WDM network
High channel Telecommunication
High stability and reliability Cellular application
Epoxy free on optical path Fiber optical amplifier
Access network

Specification:

Parameter Specification
Channel Wavelength (nm) 1270~1610 or 1271~1611
Channel Spacing(nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Pass Channel Insertion Loss (dB) ≤0.6
Reflection Channel Insertion Loss (dB) ≤0.4
Channel Ripple (dB) <0.3
Isolation (dB) Adjacent ≥30
Non-adjacent ≥40
Inertion Loss Temperature Sensitivity (dB/℃) <0.005
Wavelength Temperature Shifting (nm/℃) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion(ps) <0.1
Directivity (dB) >50
Return Loss(dB) >45
Maximum Power Handling (mW) 300
Opterating Temperature (℃) -20~+75
Storage Temperature (℃) -40~+85
Package dimension (mm) Φ5.5xL38
