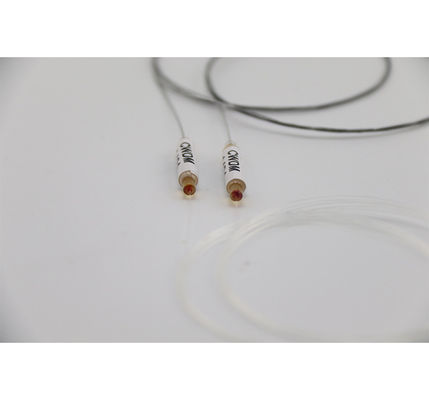

1620nm 1x2 Glass Tube CWDM Filter Device For WDM System

1620nm 1x2 Glass Tube CWDM Filter Device For WDM System
1620nm 1x2 Glass Tube CWDM Filter Device For WDM System 1620nm 1x2 Glass Tube CWDM Filter Device For WDM System 1620nm 1x2 Glass Tube CWDM Filter Device For WDM System

Large Image :  1620nm 1x2 Glass Tube CWDM Filter Device For WDM System

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: Glass tube CWDM component
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Blister Case
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: 1x2 Glass Tube CWDM Filter Central Wavelength: 1270~1610nm(1271~1611nm)
Operating Wavelength:: 1260~1620nm Channel Number:: 1x2
Package Dimension:: D 4xL25mm Glass Tube Application: WDM System
High Light:

1x2 Glass Tube CWDM Filter

,

1620nm Glass Tube CWDM Filter

,

WDM System Thin Film Filter

CWDM are based on thin film filter technology,used for network expansion,suitable for 4G and 5G network.Especially for 5G Fronthaul AAU/BBU widely with 10G,25G or other type optical transceiver.Exceed provide CWDM basic unit,1x2 CWDM Glass tube package, it’s made to be CWDM module,CWDM LGX,or CWDM 1U Rack mount.1x2 CWDM glass tube is CWDM basic unit,1x2 CWDM,2x2 CWDM,8skip0 CWDM,10skip0 CWDM,6skip0 CWDM,4skip0 CWDM,2skip0 CWDM,etc.



Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path


Applications
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Acess Network



Specification

Parameter Unit Value
Channel Number CH 1x2
Channel Space nm 20
Central Wavelength nm 1270~1610(1271~1611)
Operating wavelength nm 1260-1620
Center wavelength accuracy nm ±0.5
Passband(@-0.5dB bandwidth) nm ±7.5
Pass band Flatness(Ripple) dB ≤0.5
Insertion Loss Pass Channel(Max.) dB 0.6
Reflection Channel(Max.) dB 0.4
Isolation Adjacent Channel(Min.) dB 30
Non-Adjacent Channel(Min.) dB 45
Polarization Mode Dispersion ps ≤0.1
Polarization Dependent Loss dB ≤0.1
Directivity dB ≥50
Return Loss dB 45
Insertion Loss Temperature Sensitivity dB/°C 0.005
Wavelength Temperature Shifting nm/°C 0.002
Operation Temperature °C -5~+70
Storage Temperature °C -40~+85
Package Dimension mm Glass Tube



1620nm 1x2 Glass Tube CWDM Filter Device For WDM System 01620nm 1x2 Glass Tube CWDM Filter Device For WDM System 1
