Product Details:
Payment & Shipping Terms:
|

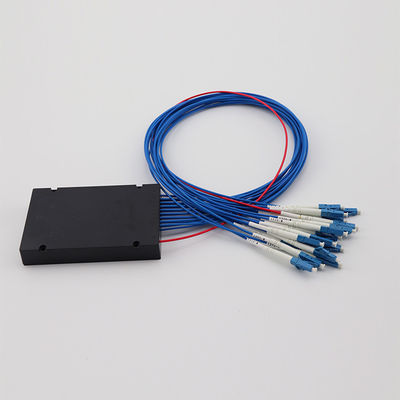

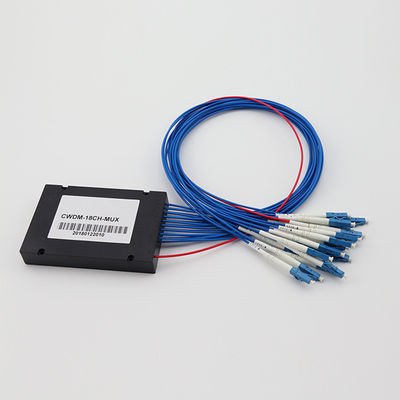

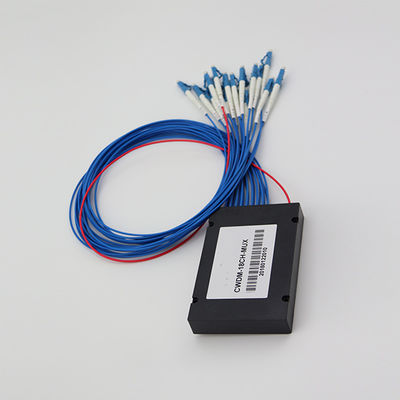

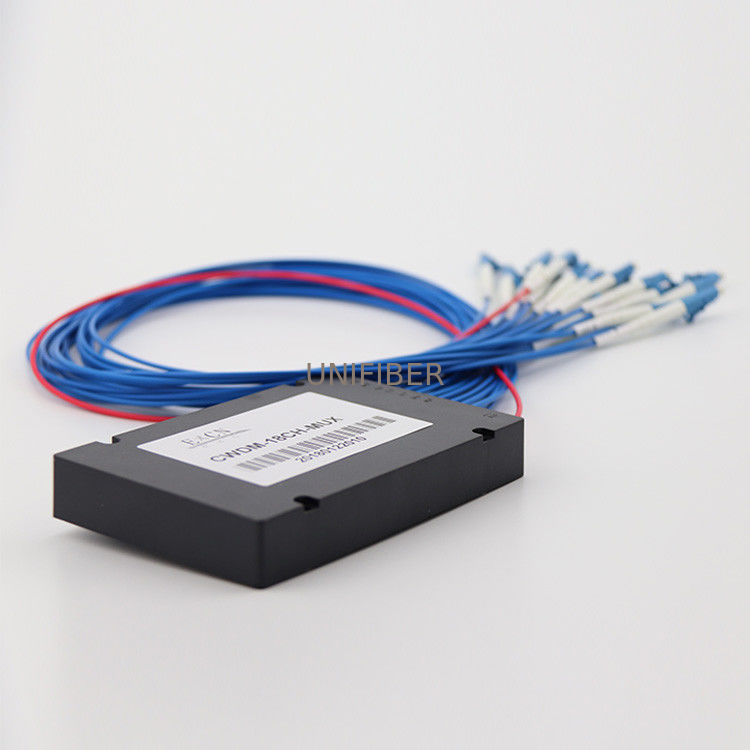

| Product: | 4 8 12 16 18Ch Single Fiber CWDM MUX/DEMUX Module | No Of Channels: | 4 8 12 16 18Ch |
|---|---|---|---|
| Configurations: | MUX/DEMUX | Central Wavelength:: | 1270~1610nm (1271~1611nm) |
| Channel Space: | 20nm | Connector: | LC/UPC |
| Application: | WDM System | ||
| Highlight: | CWDM Wavelength Division Multiplexer,Single Fiber Wavelength Division Multiplexer,18Ch DEMUX Module |
||
CWDM are based on thin film filter technology,used for network expansion,suitable for 4G and 5G network.Especially for 5G Fronthaul AAU/BBU widely with 10G,25G or other type optical transceiver. UNIFIBER provide up to 18Ch module,achieve bidirectional MUX/DEMUX over single fiber.
Under 18Ch CWDM,available with UPG port.Up to 18Ch will be w/o UPG port.All types of number channel can support Monitor port,1% or 2% optional.In generally,WDM module,LGX and Rack Mount(Chassis) all have three types about MUX DEMUX:
1.MUX-from the first channel to the final channel-insertion loss from low to high
2.DEMUX-from the first channel to the final channel-insertion loss from high to low
3.MUX/DEMUX in one-MUX part from the first channel to final channel-insertion loss from low to high,DEMUX part from the first channel to final channel-insertion loss from high to low
Features
Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
Epoxy free on Optic path
Application
Line monitoring
WDM network
Telecommunication
Cellular application
Fiber Optic amplifier
Access network
Specification
| arameter | Unit | Value | |||
| Channel Number | CH | 2 | 4 | 8 | 18 |
| Channel Space | nm | 20 | |||
| Central Wavelength | nm | 1270~1610(1271~1611) | |||
| Operating wavelength | nm | 1260-1620 | |||
| Center wavelength accuracy | nm | ±0.5 | |||
| Passband(@-0.5dB bandwidth) | nm | ±7.5 | |||
| Pass band Flatness(Ripple) | dB | ≤0.5 | |||
| Insertion Loss (Max.) | dB | 1.0 | 1.5 | 2.5 | 3.2 |
| Adjacent Channel Isolation | dB | ≥30 | |||
| Non-adjacent Channel Isolation | dB | ≥45 | |||
| Polarization Mode Dispersion | ps | ≤0.1 | |||
| Polarization Dependent Loss | dB | ≤0.1 | |||
| Directivity | dB | ≥50 | |||
| Return Loss | dB | ≥45 | |||
| Insertion Loss Temperature Sensitivity | dB/°C | 0.005 | |||
| Wavelength Temperature Shifting | nm/°C | 0.002 | |||
| Operation Temperature | °C | -5~+70 | |||
| Storage Temperature | °C | -40~+85 | |||
| Package Dimension | mm | ABS Box | |||
