Product Details:
Payment & Shipping Terms:
|

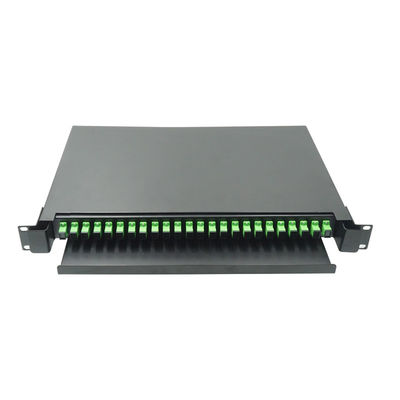

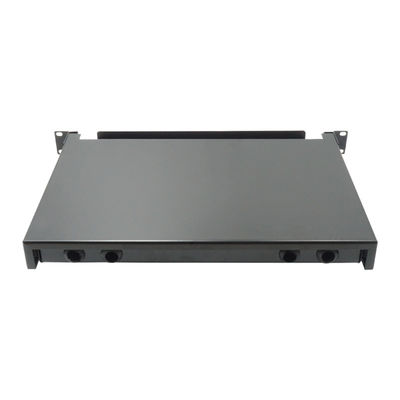

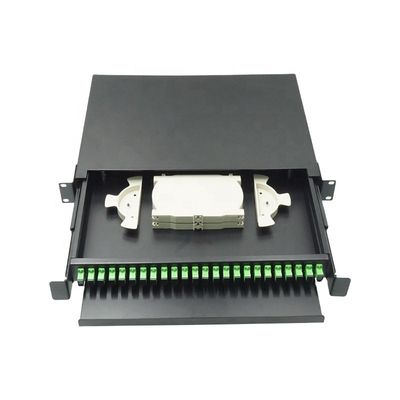

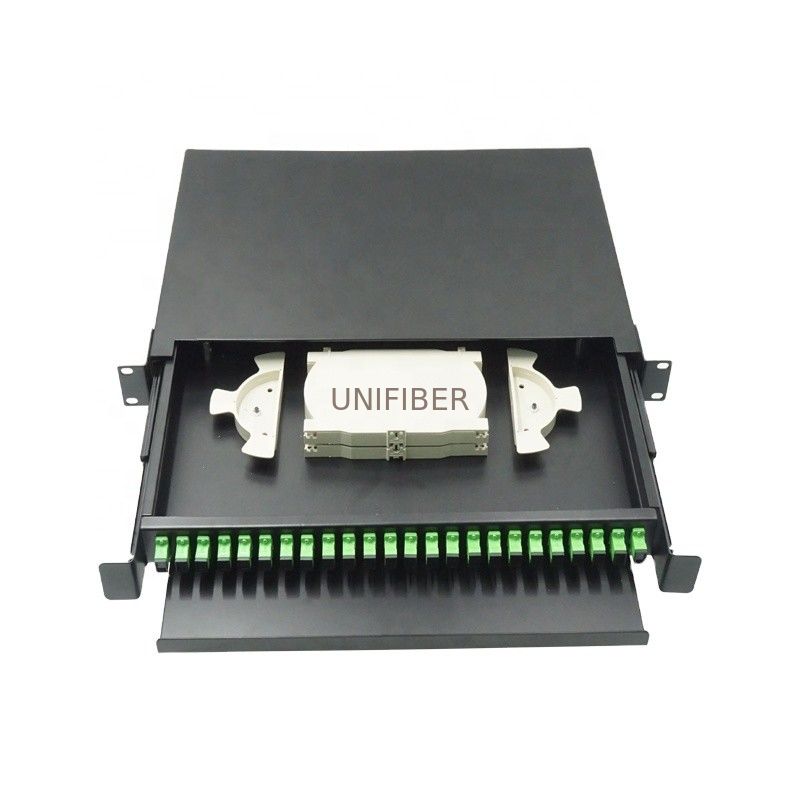

| Product: | 1U Rack Mount 24 Port SC Fiber Optic Patch Panel | No Of Ports: | 24 |
|---|---|---|---|
| Connector: | SC/APC | Material: | Cold Rolled Steel Or Aluminium |
| Color: | Black Or Gray | Accessaries: | Adapters & Pigtails |
| Application: | FTTx | ||
| High Light: | 48 Splice Fiber Optic Patch Panel,SC APC Fiber Optic Patch Panel,FTTx Patch Panel Enclosure |
||
This kind patch panel can be applied in branch connection of optical cable termination, 19' standard structure, sliding design, rack mounted , suitable for FC, SC, ST, LC adapters.
Features
Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.
capacity: 12,24,32,48 splices, max.48 splice
19 inches; 1U, 2U.
Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
Suitable for ribbon and bunchy fiber cable
Application:
Fiber to the home (FTTH)
CATV
LAN/WAN
Telecommunications subscriber loop
Order information:
| Model | Fiber Quantity | Height | Dimension(cm) | Weight(Kg) |
| ODF-RS12 | 12 | 1U | 45x 32x4.45 | 4 |
| ODF-RS24 | 24 | 1U | 45x 32x4.45 | 4.2 |
| ODF-RS48 | 48 | 2U | 48x32x8.9 | 4.31 |
| ODF-RS96 | 96 | 2.5U | 48x32x11 | 5.05 |
