Product Details:
Payment & Shipping Terms:
|
| Product: | 1U 12 Port Rack Mount Fiber Enclosure | No Of Ports: | 12 |
|---|---|---|---|
| Connector: | SC | Material: | Cold Rolled Steel Or Aluminium |
| Color: | Gray | Accessaries: | Adapters & Pigtails |
| Application: | FTTx | ||
| High Light: | 2 SC Rack Mount Fiber Enclosure,FTTB Rack Mount Fiber Enclosure,1U Fiber Patch Panel Enclosure |
||

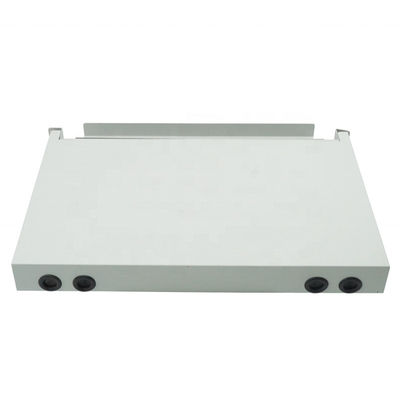

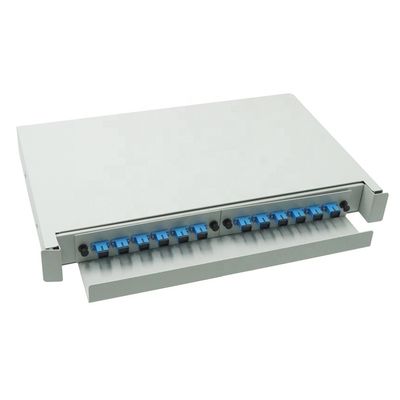

This 1U 12 Port Rack Mount Fiber Enclosure is mainly used for connection and storage between optical fiber cable and pigtail in equipment. The box body is made of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation is convenient.
Features
High quality cold rolled sheet forming, electrostatic powder spraying technology, smooth surface, not east to rust. High strength sheet metal, long-term using is not easy to deformation.
The edges of metal parts are designed with rounded corners to avoid damage to cables.

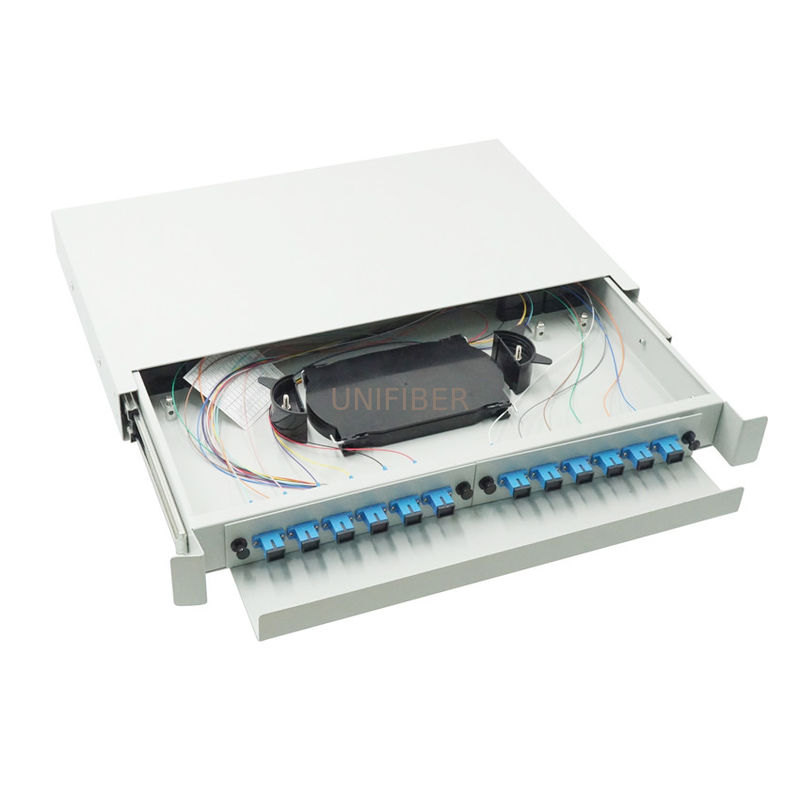

The bottom plate is designed with sliding design, for the patch panel already installed on the cabinet, the wiring can be adjusted without removing the patch panel.
Application:
Sliding rack mount patch panel integrates the 3 functions of fiber fusion, storage and distribution.
It's used widely in local end main cable net of fiber optic communication area.
Suitable for the FTTB, FTTH system.
Order information:
| Model | Fiber Quantity | Height | Dimension(cm) | Weight(Kg) |
| ODF-RS12 | 12 | 1U | 45x 32x4.45 | 4 |
| ODF-RS24 | 24 | 1U | 45x 32x4.45 | 4.2 |
| ODF-RS48 | 48 | 2U | 48x32x8.9 | 4.31 |
| ODF-RS96 | 96 | 2.5U | 48x32x11 | 5.05 |
