| Product: | 1U 24 Port Rackmount Fiber Enclosure | No Of Ports: | 24 Ports |
|---|---|---|---|
| Connector: | SC Simplex Or LC Duplex | Material: | Cold Rolled Steel Or Aluminium |
| Accessaries: | Adapters & Pigtails | Application: | FTTx |
| High Light: | SC LC Fiber Optic Enclosure,FTTx Fiber Optic Enclosure,LC Duplex Rack Mount Patch Panel |
||

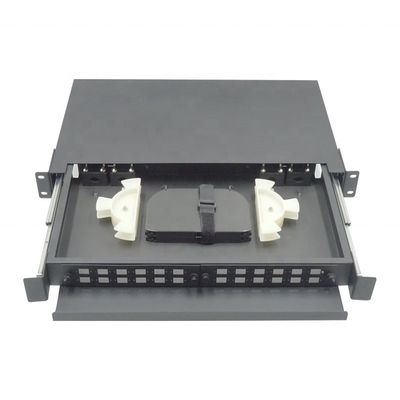

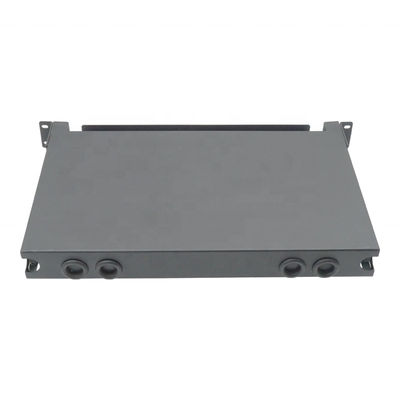

This 24 Port Rack Mount ODF made with high quality cold rolled steel,it with 1U 19' standard structure, with sliding drawer for easy operation, it is suitable for SC simplex or LC duplex fiber optic adapters, customer can choose the box with pigtails and adapters pre-loaded at the factory or empty box, UNIFIBER also can support customized designs per specific requirements.
Features
1U 19 inches Rack Mount
Normally come with 12 or 24 Ports
Can load SC simplex or LC duplex adapter
4 Separate removable adapter plate
With Sliding drawer for easy operation
Custom can choose empty patch panel or fully loaded with pigtail or adapters
Application:
Fiber Optic Cabling Solution
Data Center Solution
Fiber to the home (FTTH)
Telecommunications
Order information:
| Model | Fiber Quantity | Height | Dimension(cm) | Weight(Kg) |
| ODF-RS12 | 12 | 1U | 45x 32x4.45 | 4 |
| ODF-RS24 | 24 | 1U | 45x 32x4.45 | 4.2 |
| ODF-RS48 | 48 | 2U | 48x32x8.9 | 4.31 |
| ODF-RS96 | 96 | 2.5U | 48x32x11 | 5.05 |
