Product Details:
Payment & Shipping Terms:
|
| Product: | 19 Inch Rack Mount Patch Panel | Adapter Plate: | 4 Separate Changable Adapter Plate |
|---|---|---|---|
| No Of Ports: | 24 Ports | Connector: | LC Duplex Or SC Simplex Adapter |
| Material: | Cold Rolled Steel Or Aluminium | Color: | Gray Or Black Painting |
| Accessaries: | Adapters & Pigtails | Application: | Data Center |
| Highlight: | 1U 19" Rack Mount Patch Panel,FTTH Rack Mount Patch Panel,SC LC Adapter Optical Patch Panel |
||

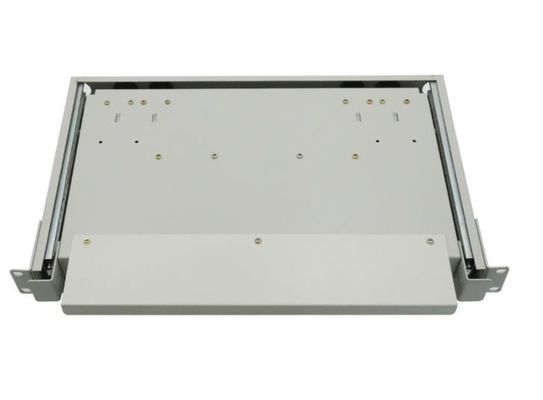

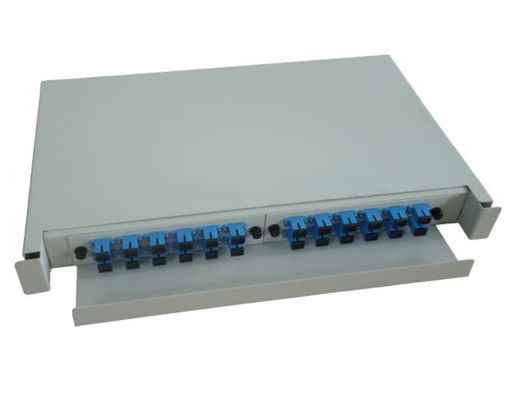

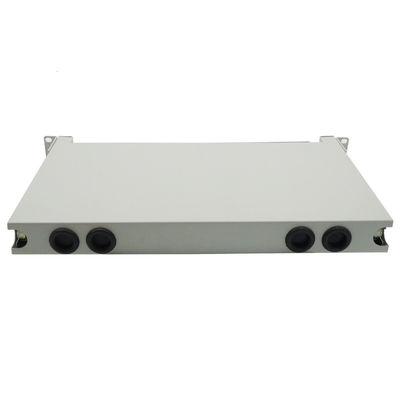

This 1U 19 inch rack mount patch panel made with high quality cold rolled steel,it with sliding drawer, suitable for LC duplex or SC simplex fiber optic adapters, customer can choose empty enclosure box or asked to have pigtails and adapters fully pre-loaded at the factory .
Features
4 Separate removable adapter plate
With Sliding drawer for easy operation
12 or 24 Ports avaliable
Load with SC simplex or LC duplex adapter
Standard Rack Mount 1U 19 inch installation
Application:
Fiber to the home (FTTH)
Telecommunications
Fiber Optic Cabling Solution
Data Center Solution
Order information:
| Model | Fiber Quantity | Height | Dimension(cm) | Weight(Kg) |
| ODF-RS12 | 12 | 1U | 45x 32x4.45 | 4 |
| ODF-RS24 | 24 | 1U | 45x 32x4.45 | 4.2 |
| ODF-RS48 | 48 | 2U | 48x32x8.9 | 4.31 |
| ODF-RS96 | 96 | 2.5U | 48x32x11 | 5.05 |
