Product: | Wall Mount Fiber Patch Panel | No Of Ports: | 12/24/48 Ports |
---|---|---|---|
Connectors: | SC/FC/LC/ST | Material: | Cold Roll Steel |
Color: | Light Gray | Installation: | Wall Mounting |
High Light: | LC Duplex Fiber Patch Panel,CATV Fiber Patch Panel,FC Rack Mount Patch Panels |

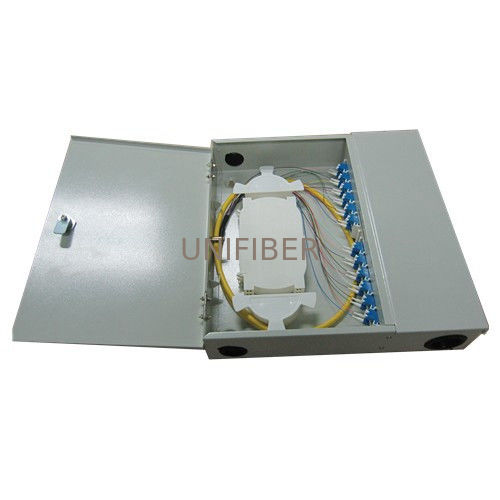

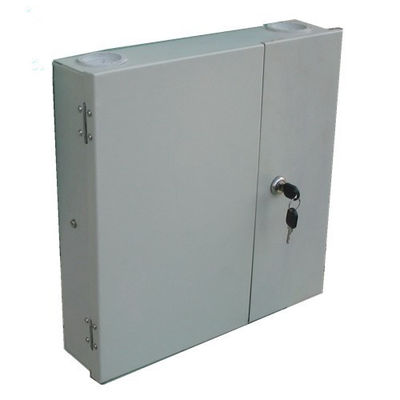

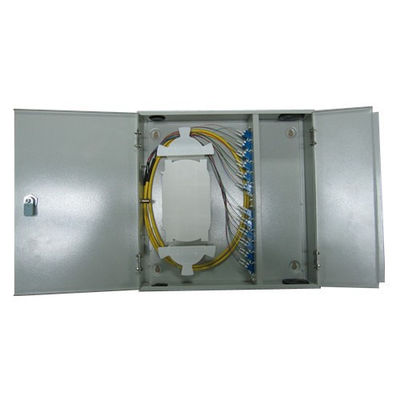

This indoor 24/48 Port Wall Mount Fiber Patch Panel made by high quality cold rolled steel, it can manage both single fiber and ribbon & bundle fiber cables,can load with SC,LC,FC or ST connectors, there are 4 removable adapter plate, with large working space. Customer can choose empty enclosure box or asked to fully loaded with adapter and pigtails.
Features
With cold-roll steel box, splicing unit, distribution unit and panel
Various panel plate to fit different adapter interface
Adapters can be installed: FC, SC, ST, LC
Suitable for single fiber and ribbon & bundle fiber cables
Special design ensures the excess fiber cords and pigtails in good order
No interval and easy for management and operation
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/ WAN/CATV
Type | Size(mm) H*W*D | Max capacity | Outer carton dimension | Outer cartion weight |
GP(05)A-24 | 455*405*80 | 24 | 500*450*490/4pcs | 29.5 |
GP(05)A-48 | 455*405*120 | 48 | 500*450*490/3pcs | 25.3 |
GP(05)A-72 | 455*405*150 | 72 | 500*450*390/2pcs | 19.5 |
GP(05)B-48 | 455*405*120 | 48 | 500*450*490/3pcs | 27 |
GP(05)B-72 | 455*405*150 | 72 | 500*450*390/2pcs | 20.5 |
GP(05)A-24A | 350*350*80 | 24 | 405*405*605/5pcs | 20.8 |
GP(05)B-24B | 455*405*80 | 24 | 500*450*490/4pcs | 29 |
GP(05)C | 350*300*80 | 12 | 405*355*605/5pcs | 19.5 |
GP(05)D | 350*300*80 | 24 | 405*355*605/5pcs | 19.5 |
