Product Details:
Payment & Shipping Terms:
|
| Product: | 1U 19" 24 Port Single Mode LC Duplex Fiber Patch Panel | No Of Ports: | 24 Port (48 Fiber) |
|---|---|---|---|
| Connector: | LC Duplex | Material: | Cold Rolled Steel |
| Color: | Black Or Gray | Adapters & Pigtails: | Fully Loaded Or Unloaded |
| Application: | FTTX | ||
| High Light: | LC Duplex Fiber Optic Patch Panel,FTTX Fiber Optic Patch Panel,Single Mode Fiber Patch Panel Enclosure |
||

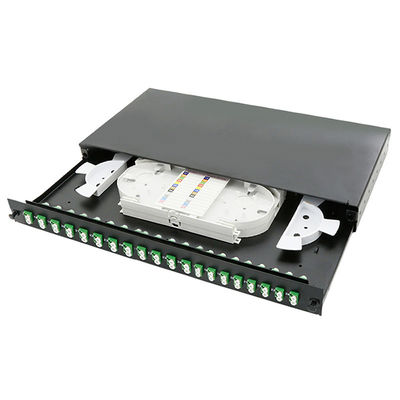

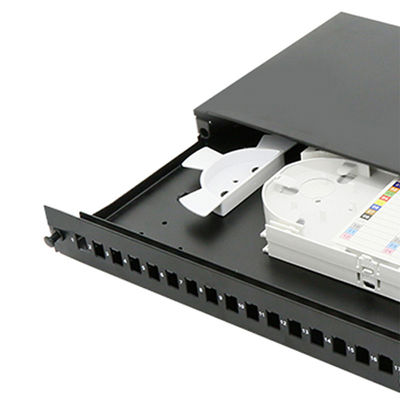

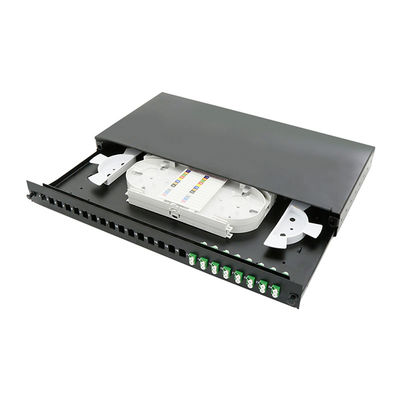

1U 19" 24 Port Single Mode LC Duplex Fiber Patch Panel made with high quality cold rolled steel, it is suitable for SC simplex or LC duplex fiber optic adapters, customer can choose the box with pigtails and adapters pre-loaded at the factory or empty box, UNIFIBER also can support customized designs per specific requirements.
Features
Standard 1U 19 inches rack mount installation
With siliding drawer for easy operation
Suitable for ribbon and bunchy fiber cable
Support 12,24,32,48 splices, max.48 splice
Support for SC simplex or LC duplex adapters
Application:
Fiber to the home (FTTH)
LAN/WAN/CATV
Telecommunications subscriber loop
Order information:
| Model | Fiber Quantity | Height | Dimension(cm) | Weight(Kg) |
| ODF-RS12 | 12 | 1U | 45x 32x4.45 | 4 |
| ODF-RS24 | 24 | 1U | 45x 32x4.45 | 4.2 |
| ODF-RS48 | 48 | 2U | 48x32x8.9 | 4.31 |
| ODF-RS96 | 96 | 2.5U | 48x32x11 | 5.05 |
