LC APC Pigtail 1650nm FBG Fiber Optic Reflector Low Insertion Loss

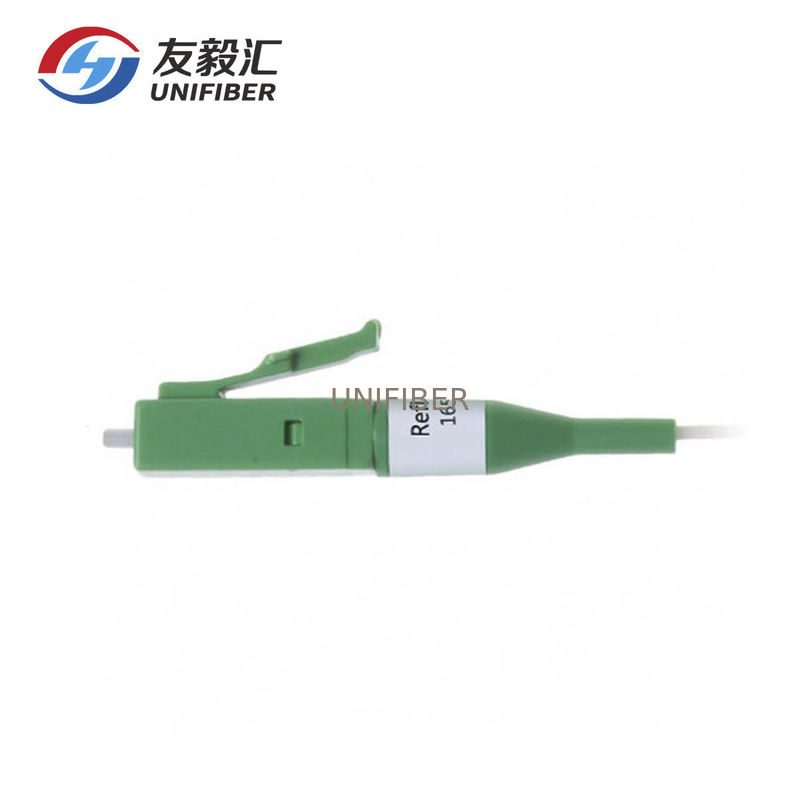

Large Image : LC APC Pigtail 1650nm FBG Fiber Optic Reflector Low Insertion Loss

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	LC/APC Pigtail 1650nm FBG Fiber Optic Reflector

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	LC/APC Pigtail 1650nm FBG Fiber Optic Reflector	Pass Band:	1310+1550nm
Reflect Band:	1650nm	Operation Wavelength:	1625 -1650nm
Connector:	LC/APC	Name:	Fiber Optic Reflector
Highlight:	FBG Fiber Optic Reflector , 1650nm Fiber Optic Reflector , LC APC Optical Fiber Reflector

Fiber reflector,also known as fiber Bragg grating filter,is usually installed in the front end of ONU of optical network. Combined with OTDR equipment it can realize the point-to-point(PTP)or point-to- multipoint (PTMP) network monitoring of optical link.which can reflect the network abnormality quickly and accurately; The LC pigtail fiber (FBG) reflector provided by UNIFIBER has the advantages of low insertion loss, high reflectivity,convenient installation, etc.and is an ideal optical device for network link monitoring; It is widely used in PON network,OTDR testing,central computer room testing,FTTXand other fields.

Features:

High stability and reliability

Remote real-time detection
Low insertion loss

Easy connection for adapter structure
Compliant with Telcordia GR-326-CORE, Telcordia GR-1221-CORE
Compliant with RoHS

Application:

Detection and maintenance of Passive Optical Network lines (applied to FTTx).

Specification:

ltem		LC FBG Reflector,Pigtail type
Operating band	Transmission band	1260~1625nm	1260~1600nm
	Reflection band	1645~1655nm	1620~1630nm
IL		≤1.4dB@1260~1360nm	≤1.4dB@1260~1360nm
		≤1.4dB@1460~1600nm	≤1.4dB@1460~1580nm
		≤2.0dB@1600~1625nm	≤2.0dB@1580~1600nm
		>21dB@1645~1655nm	>21dB@1620~1630nm
ORL		>35dB @1260~1360nm	>35dB @1260~1360nm
		>35dB @1460~1600nm	>35dB @1460~1580nm
		>25dB @1600~1625nm	>25dB @1580~1600nm
		≤1.0dB@1645~1655nm	≤1.0dB@1620~1630nm
PDL		≤0.4 dB
Riple		≤0.6 dB
TDL		≤0.5 dB
Maximum opicl power		≤27 dBm
Ferule type		PC or APC
Fiber type		Corning G657A2 and 900um loose tube
Transmission direction		Unidirectional
Operating temperature		-20~+70°C
Operating humidity		5~95
Storage temperature		‘-40~+85°C
