1.6m Cable SC LC Wall Mount Fiber Enclosure 500N For Patching Splicing

Name: 1.6m Cable SC LC Wall Mount Fiber Enclosure 500N For Patching Splicing
Brand: UNIFIBER-OEM
SKU: GP(05)A-24A
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (161 reviews)

Large Image : 1.6m Cable SC LC Wall Mount Fiber Enclosure 500N For Patching Splicing

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	GP(05)A-24A

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	Wall Mount Fiber Enclosure	Material:	Metal Steel
Capacity:	12/24/48	Connector:	SC Simplex Or LC Duplex
Installation:	Indoor Wall Mounted	Application:	FTTH
High Light:	SC LC Wall Mount Fiber Enclosure , 1.6m Cable Wall Mount Fiber Enclosure , 500N Fiber Optic Terminal Boxes

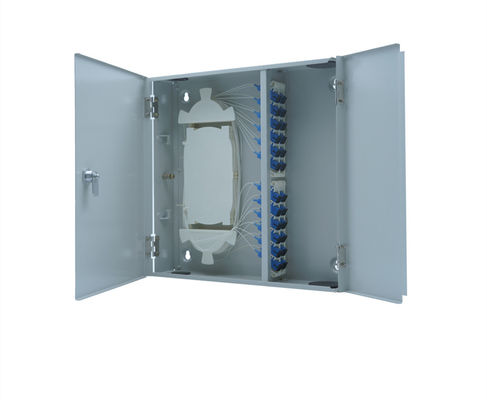

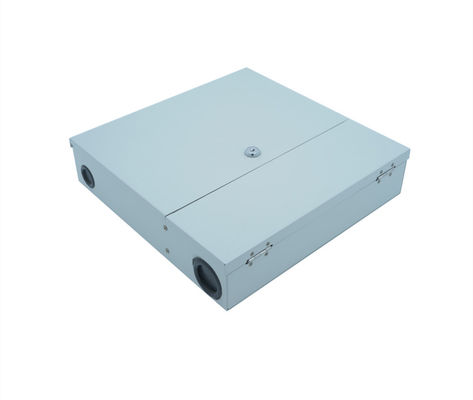

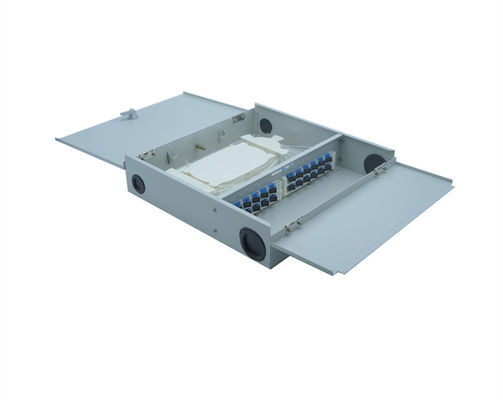

GP(05)A-24A 24 Ports SC/LC Wall Mount Fiber Enclosure Fiber Optic Terminal Boxes apply to the connection and termination of fibers and serve as protector for fiber fusion and storage.

Features:
* Splice & distribution in one unit
* Easy installation and operation of the components inside
* Adapters covered with plastic covers and easily removed and mounted
* Excellent seal performance for outdoor application
* Material: cold rolled steel.

Specification:
Parameters	Specifications
Dimension	350x350x80mm
Max capacity	24cores
Lateral pressure-resistance	500N
Relative Humidity (%)	≤85 (30°C)
Temperature range	-40℃～+60℃
Fiber length left in tray	≥1.6m
Shock resistance	750N
Fiber Movable Connector	Up to GB/T 12507 standard
Fiber Cable	Up to GB/T 11819 & GB/T 7424 standards
