| Product: | 12 24 48 Cores Fiber Optic Patch Panel 19 Inch Rack Mount | Material: | Metal Cold Rolled Steel |
|---|---|---|---|
| Color: | Gray | Capacity: | 12 24 48 Core |
| Connector: | SC/LC/FC/ST | Height: | 1U Or 2U |
| Highlight: | ROHS Fiber Optic Patch Panel,2U Fiber Optic Patch Panel,SC APC Rack Mount Patch Panel |
||

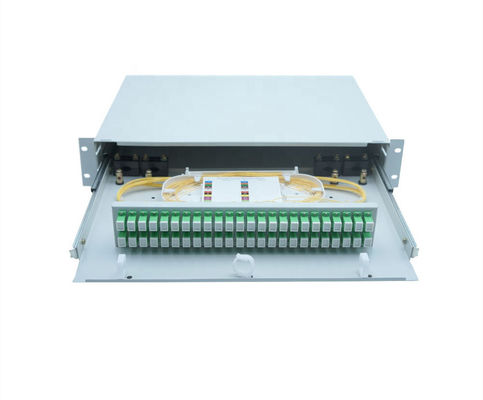

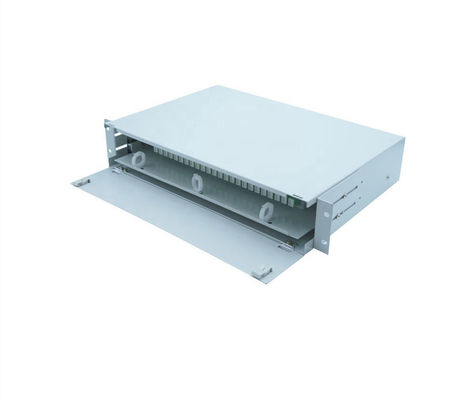

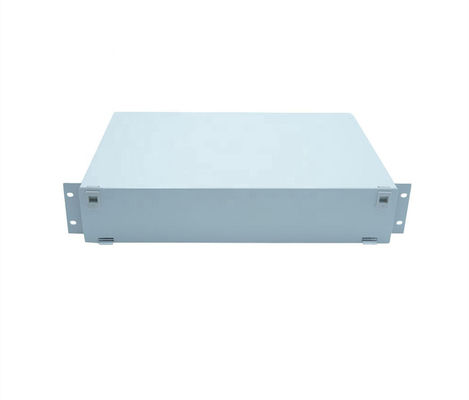

24 48 Cores 2U Fiber Optic Patch Panel can be used on the terminal of the optical cables, 19 "standard structure, rack type installation;Suitable for FC, SC, ST, LC adapter..
Features:
1. All property indexes are in accordance with National YD/T925—1997 Standard.
2. Unique 1～4 inlets and 1～24 outlets to enhance the flexibility of use;
3. The body is made of high quality cold-rolled steel, and the surface is treated with matte plastic spray.
4. 19 "standard structure, rack type installation, suitable for FC, SC, ST, LC adapters, pull structure and easy to operate.
Technical index:
Fiber radius curvature:≥40mm
Splice tray additional loss:fiber in the tray has no additional loss
Fiber length coiled in the tray:≥1.6m
Working temperature:-40℃～+60℃
Anti lateral pressure:500N
Shock resistance:750N
