Wall Mount 1.6m 500N Fiber Optic Patch Panel SC APC 24 Port

Large Image : Wall Mount 1.6m 500N Fiber Optic Patch Panel SC APC 24 Port

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	GP(05)D

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Features:	Two Frount Doors With Lock	Product:	24 Port Wall Mount Fiber Optic Patch Panel Enclosure
Material:	Cold Rolled Steel	No Of Ports:	24 Ports
Connector:	SC/APC	Installation:	Wall Mount
Highlight:	500N Fiber Optic Patch Panel , 1.6m Fiber Optic Patch Panel , SC APC Fiber Optic Enclosure

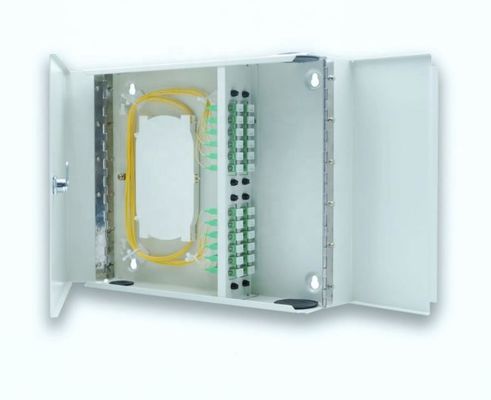

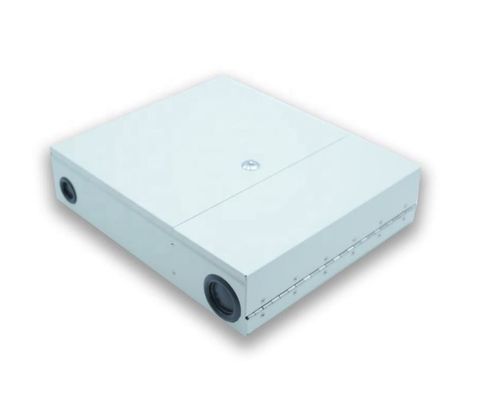

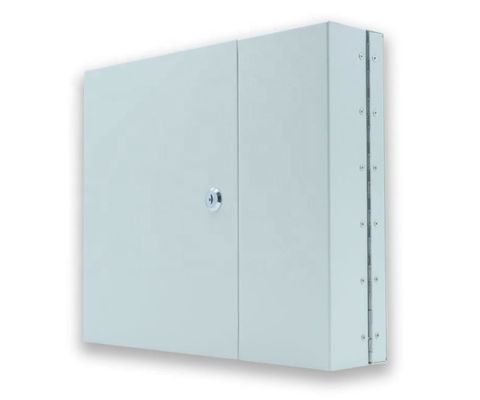

24 Port Wall Mount Fiber Optic Patch Panel Enclosure apply to the connection and termination of fibers and serve as protector for fiber fusion and storage.

Features:
* Easy installation and operation of the components inside
* Adapters covered with plastic covers and easily removed and mounted
* Excellent seal performance for outdoor application
* Material: cold rolled steel.

Specification:
Parameters	Specifications
Dimension	350x300x80mm
Max capacity	24cores
Lateral pressure-resistance	500N
Relative Humidity (%)	≤85 (30°C)
Temperature range	-40℃～+60℃
Fiber length left in tray	≥1.6m
Shock resistance	750N
Fiber Movable Connector	Up to GB/T 12507 standard

Wall Mount 1.6m 500N Fiber Optic Patch Panel SC APC 24 Port 0
