Product Details:
Payment & Shipping Terms:
|
| Product: | C Band FWDM Filter With 5% Tap Splitter | Transmittion Wavelength: | 1550nm(1530-1565nm) |
|---|---|---|---|
| Reflection Wavelength: | 1610nm | Tap Coupler: | 2% Or 5% |
| Fiber Type: | SMF-28e With 900um Loose Tube | Connector: | LC/UPC |
| Highlight: | LC UPC FWDM Filter,R1610nm FWDM Filter,1565nm DWDM Demux Multiplexer |
||

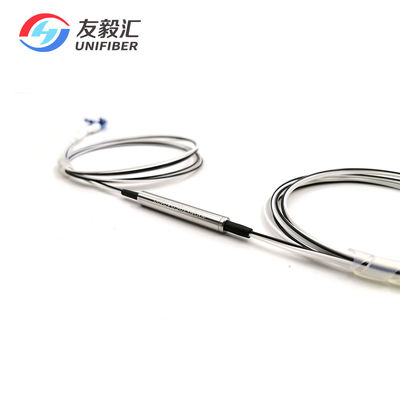

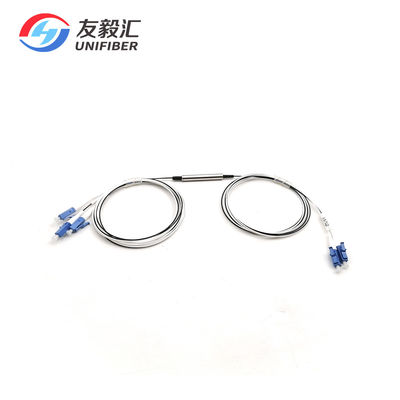

T1550(1530-1565nm) R1310+R1610+Tap2% or 5%,5.5x38mm,900um,1m, LC/UPC utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.

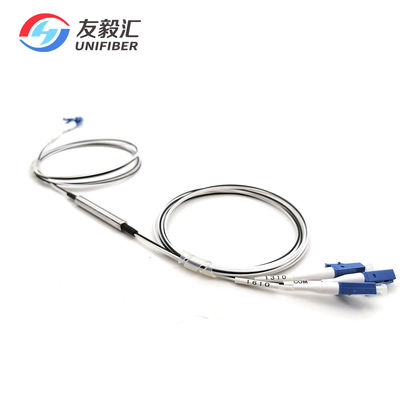

Number ring: Com,1310,1610,1550,2%Tap or 5% Tap
| Parameters | Specifications | Unit | |||
| Pass Band | 1530~1565 | nm | |||
| Reflection Band | 1260~1360,1580~1620 | nm | |||
| Insertion Loss | 1310 | ≤1.3 | dB | ||
| 1610 | ≤1.3 | dB | |||
| 1550+98% | 1550+95% | ≤1.9 | ≤2.0 | dB | |
| 2% | 5% | ≤19.25 | ≤14.8 | dB | |
| Isolation | Pass Channel | ≥30 | dB | ||
| Reflection Channel | ≥15 | dB | |||
| Directivity | ≥50 | dB | |||
| Return Loss | ≥45 | dB | |||
| Polarization Dependent Loss | ≤0.2 | dB | |||
| Polarization Mode Dispersion | ≤0.2 | ps | |||
| Fiber Length | 1.0±0.03 | m | |||
| Fiber Type | SMF-28e with 900um Loose Tube | / | |||
| Connector | LC/UPC | / | |||
| Operating Temperature | -10 ~ +70 | ℃ | |||
| Storage Temperature | -40 ~+ 85 | ℃ | |||
| Package size | Φ5.5*38 | / | |||
