Product Details:
Payment & Shipping Terms:
|
| Product: | Rack Mount Rotary Fiber Optic Patch Panel | Ports: | 24 |
|---|---|---|---|
| Connector: | SC/UPC | Material: | Cold Rolled Steel |
| Painting Color: | Silvery | Name: | Fiber Optic Patch Panel 2 |
| High Light: | 750N Fiber Optic Patch Panel,SC 19" Fiber Optic Patch Panel,YD/T925 Rack Mount Patch Panel |
||

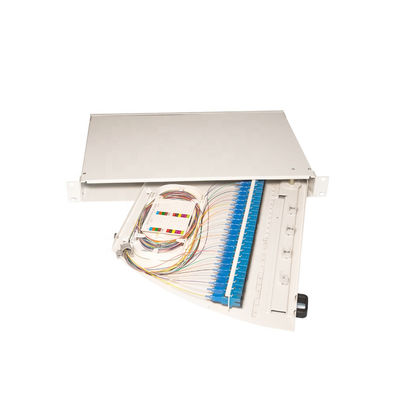

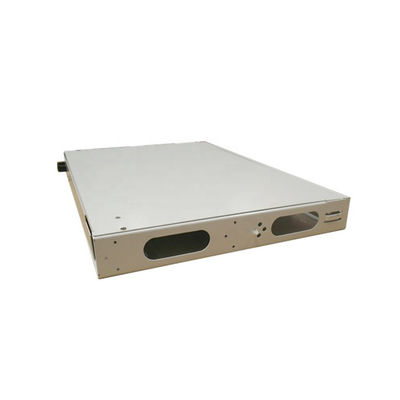

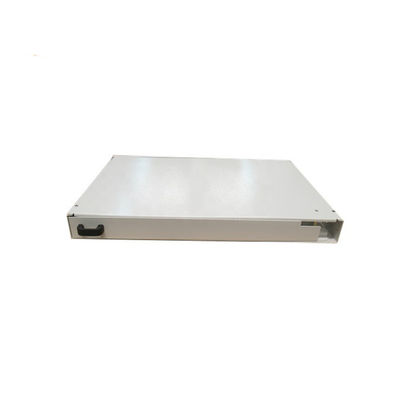

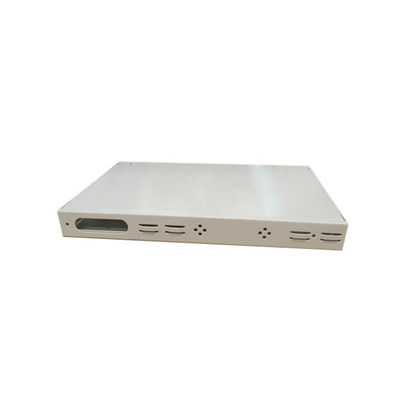

19" Rack Mount Rotary Fiber Optic Patch Panel 24 Port SC can be used on the terminal of the optical cables, 19 "standard structure, rack type installation;Suitable for FC, SC, ST, LC adapter.
Features:
All property indexes are in accordance with National YD/T925—1997 Standard.
Unique 1～4 inlets and 1～24 outlets to enhance the flexibility of use
The body is made of high quality cold-rolled steel, and the surface is treated with matte plastic spray.
19 "standard structure, rack type installation, suitable for FC, SC, ST, LC adapters, pull structure and easy to operate.
Technical index:
Fiber radius curvature:≥40mm
Splice tray additional loss:fiber in the tray has no additional loss
Fiber length coiled in the tray:≥1.6m
Working temperature:-40℃～+60℃
Anti lateral pressure:500N
Shock resistance:750N
