Product Details:
Payment & Shipping Terms:
|
| Product: | 1550 Nm Polarization Maintaining Bandpass Filter | Wavelength: | 1550nm |
|---|---|---|---|
| Fiber: | SMF-28e Fiber, PM1550,or Other | Max. Power Handling: | 0.5, 1, 2, 3, 5, 10W |
| Package: | Ф5.5×L35 Steel Tube With 900um Loose Tube | Application: | EDFA Or Fiber Laser Systems |
| High Light: | 1550nm Polarization Wavelength Division Multiplexer,EDFA Wavelength Division Multiplexer,900um Loose Tube CWDM Module |
||

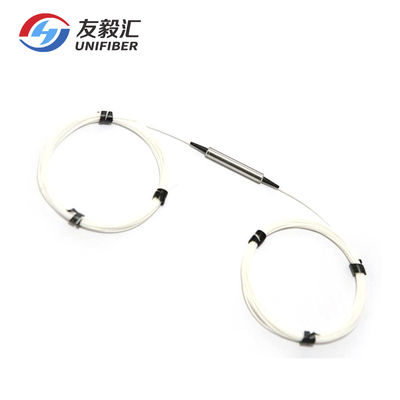

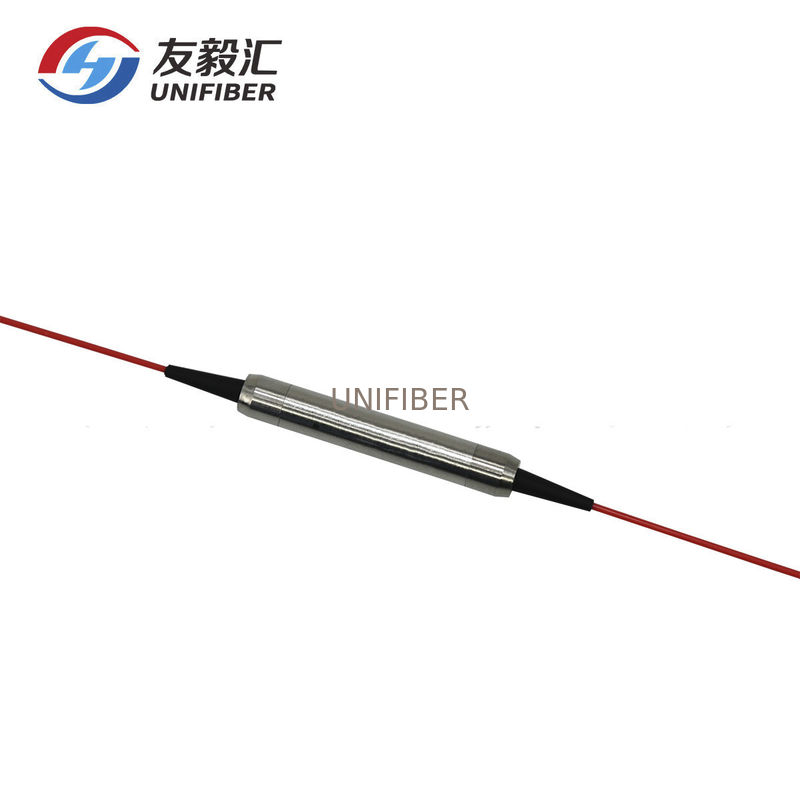

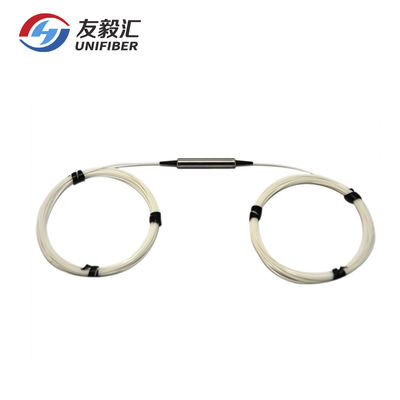

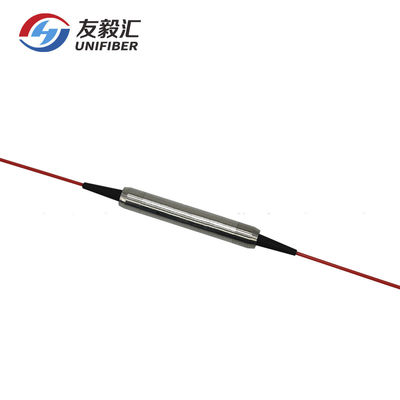

The Bandpass Filter is a micro optics device based on environmentally stable thin film filter technology. It is used to block out unwanted noise signals in EDFAs and fiber laser systems. The components are characterized with high isolation, low insertion loss, high return loss, excellent environmental stability and high power handling capability.
Features
Low Insertion Loss
High isolation
High power handling
High Stability and Reliability
Applications
Fiber laser
Fiber amplifier
EDFA
| Specifications | ||
| Parameter | Unit | Value |
| Wavelength Range | nm | 1550 |
| Min. Pass Bandwidth @ -0.5 dB | nm | 2 |
| Max. Insertion Loss | dB | 1 |
| Min. Isolation @ 1520 - 1547 nm, 1553 -1570 nm | dB | 25 |
| Min. Return Loss | dB | 50 |
| Thermal Stability | dB/℃ | ≤ 0.005 |
| Max. Optical Power (Continuous Wave) | mW | 300 |
| Max. Tensile Load | N | 5 |
| Fiber Type | - | Fijikura PM 1550 panda fiber |
| Operating Temperature | ℃ | - 5 to + 70 |
| Storage Temperature | ℃ | - 40 to + 85 |
