18 Channel Wavelength Division Multiplexer Ultra Compact CWDM TFF Free Space 20nm

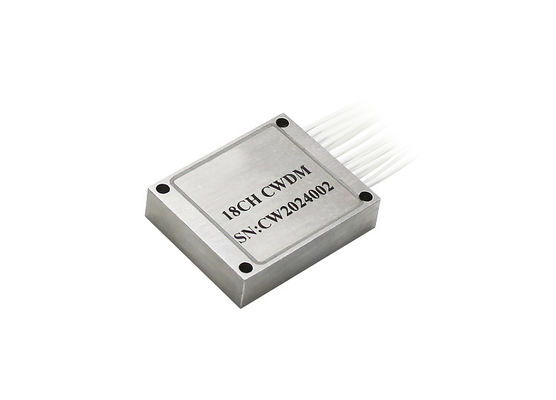

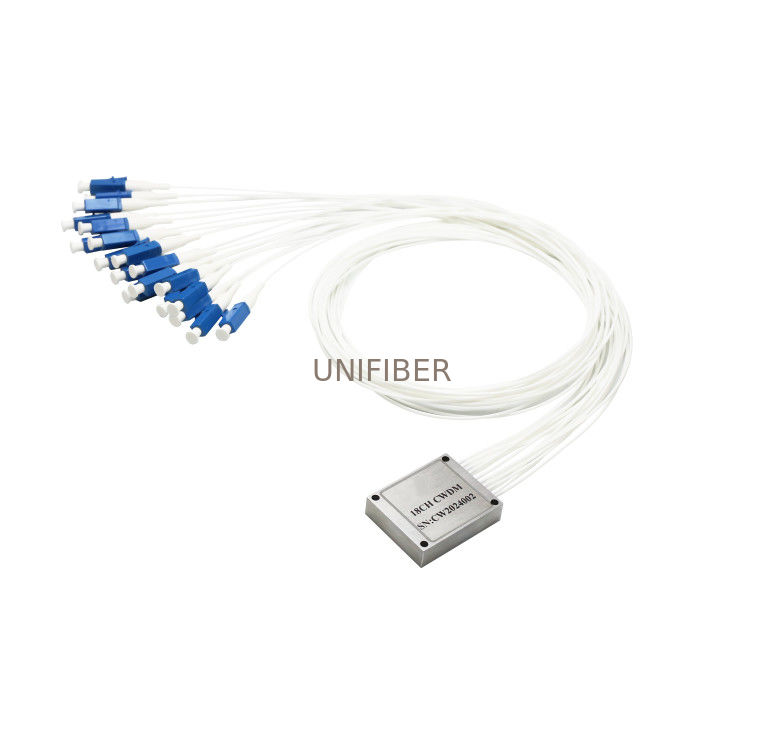

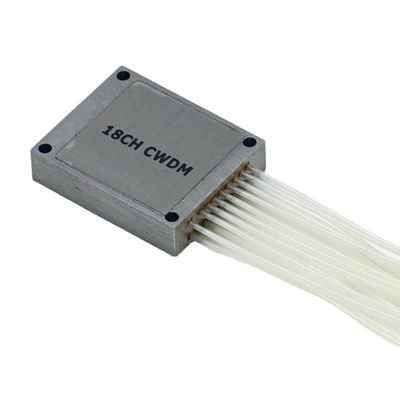

Large Image : 18 Channel Wavelength Division Multiplexer Ultra Compact CWDM TFF Free Space 20nm

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	18 Channel Ultra Compact CWDM

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	18 Channel Ultra Compact CWDM	No Of Channels:	18
Technology:	TFF Free-space	Channel Spacing:	20nm
Package:	Metal Module	Connector:	LC/UPC
High Light:	18 Channel Wavelength Division Multiplexer , CWDM TFF Wavelength Division Multiplexer , 20nm DWDM Demux Multiplexer

Features
♦ Ultra-compact
♦ Based on TFF technology
♦ Ultra-low Insertion loss
♦ Stable at wide range of operating temperatures
♦ One side fiber feedthrough

Application
♦ CWDM networks

♦ CATV networks
♦ High speed multi-wavelength CWDM transceivers, line-card, portable testing equipment

Specification

Parameters	Units	18 Channels
Insertion Loss	dB	≤2.2
Ripple	dB	≤0.5
Polarization Dependent Loss	dB	≤0.3
Dimension	mm	28 x 22.8 x 6.5
Channel Center Wavelengths	nm	1271 - 1611
Channel Spacing	nm	20
Channel Passband	nm	λc ± 6.5(Min.)
Isolation-Adjacent	dB	≥30
Isolation-Non-adjacent	dB	≥40
Return Loss	dB	≥45
Directivity	dB	≥50
