Product Details:
Payment & Shipping Terms:
|
| Product: | High Density MPO Patch Panel | Capacity: | 1U-144F 2U-288F |
|---|---|---|---|

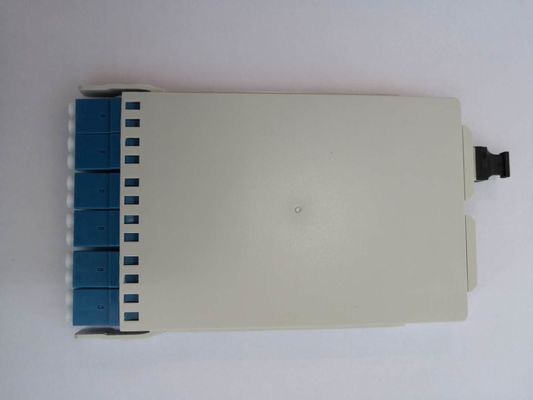

| Cassettes: | 12* 12F Cassettes | Fiber Type: | Multimode OM3 |
| Adapter: | Duplex LC Or Quad LC | Installation: | 19 Inch Rack Mount |
| High Light: | Multimode OM3 MPO Patch Panel,144F MPO Patch Panel,12x12F Rack Fiber Patch Panel |
||

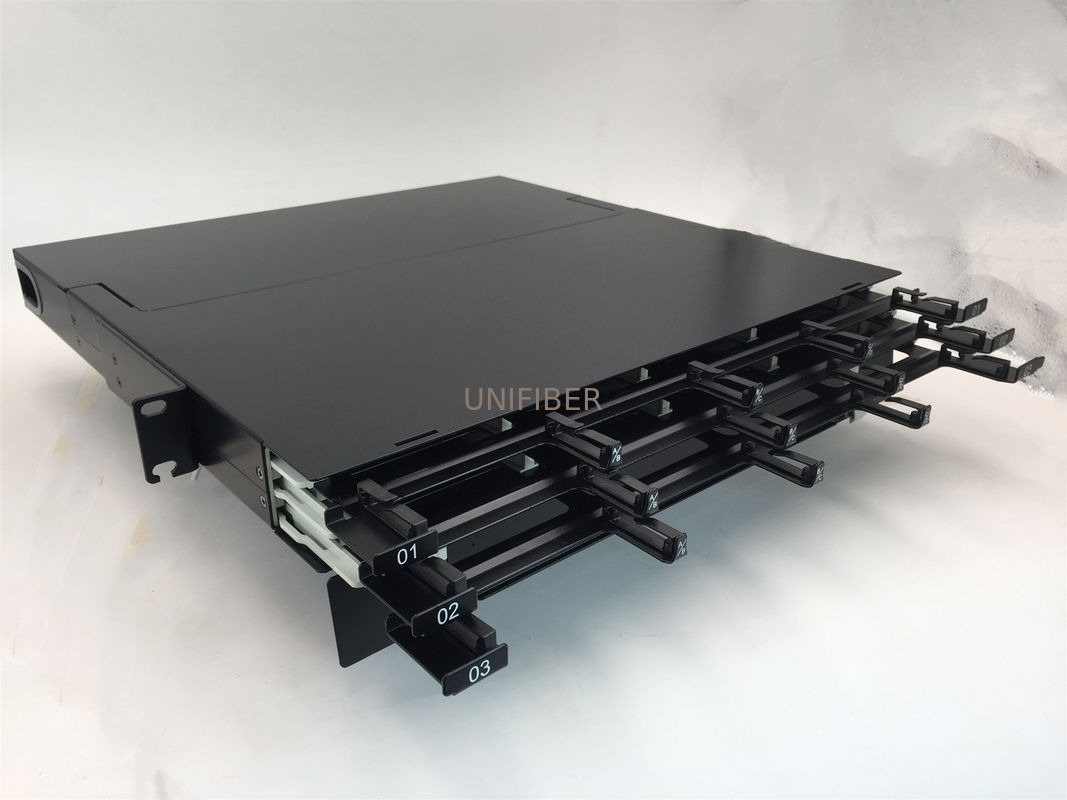

High Density (HD) Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU footprint. This design has been accomplished by staggering the mounting ears. The HD patch panels are ideal for high fiber count applications and will fit into any standard 19” or 23” rack by rotating the panel’s mounting ears.
APPLICATIONS
Data centers,pre-terminated installations
Telecommunication networks
Storage area networking fiber channel
High denisty architectures
FEATURES
Finishing: powder coated
Fits into 19 inch installations
Max capacity up to 144 fiber for 1U
Sliding tray design
Easy to operate and maintain
