Product Details:
Payment & Shipping Terms:
|

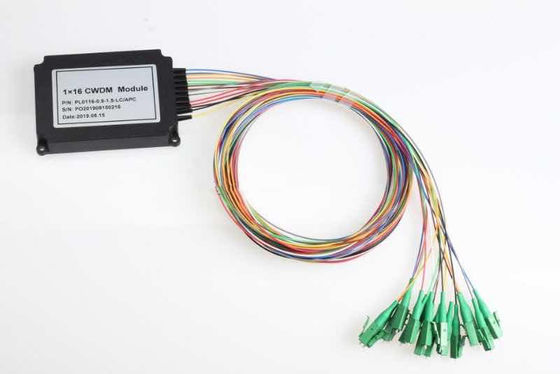

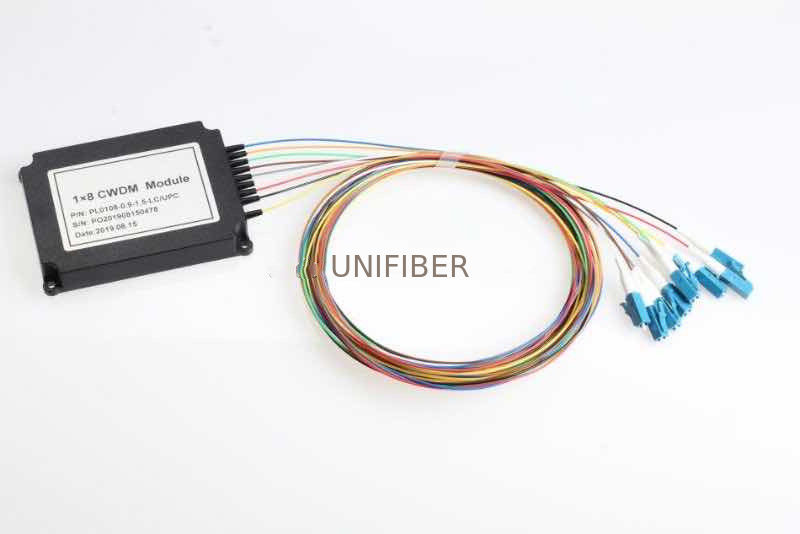

| Product: | 4/8/16 Channels CWDM | Channel Space: | 20nm |
|---|---|---|---|
| Wavelength: | 1470,1490…1590,1610 | Package: | ABS Module |
| Connector: | LC/UPC Or LC/APC | Name: | CWDM Mux Demux |
| High Light: | 16 Channels CWDM Mux Demux,LC APC CWDM Mux Demux,OADM DWDM Demux Multiplexer |
||
Features
*Low Insertion Loss
*Excellent thermal stability
*No epoxy in the optical path
*RoHS compliant
Applications
*CWDM system
*CATV network
*Access networks
Parameters Specifications
| Parameters | Unit | Specifications | |
| Center Wavelength | nm | 1470,1490…1590,1610 | |
| Channel Passband | nm | λc ±7.5/± 6.5 | |
|
Maximum Add/Drop Channel Insertion Loss
|
dB | ≤1.0(2 Channel) | |
| dB | ≤1.6(4 Channel) | ||
| dB | ≤2.7(8 Channel) | ||
| dB | ≤3.5(16Channel) | ||
| Isolation | Adjacent Channel | dB | ≥30 |
| Non-Adjacent Channel | dB | ≥40 | |
| Express Channel | dB | ≥12 | |
| Ripple in Passband | dB | ≤0.3 | |
| Temperature Stability | dB/℃ | ≤0.005 | |
| PDL | dB | ≤0.1 | |
| PMD | dB | ≤0.1 | |
| Return Loss | dB | ≥45 | |
| Directivity | dB | ≥55 | |
| Maximum Power Handling | mW | 500 | |
| Operating Temperature | ℃ | -20~75 | |
| Storage Temperature | ℃ | -40~85 | |
| Packaging Dimensions | mm | A&B:(L)100X(W)80 X(H)10 ABS box | |
| mm | A&B:(L)120X(W)80 X(H)18 ABS box | ||
| mm | L&R: 19” Rack, Standard | ||
All values exclude connector loss, if with connector, insertion loss will increase 0.3dB.
