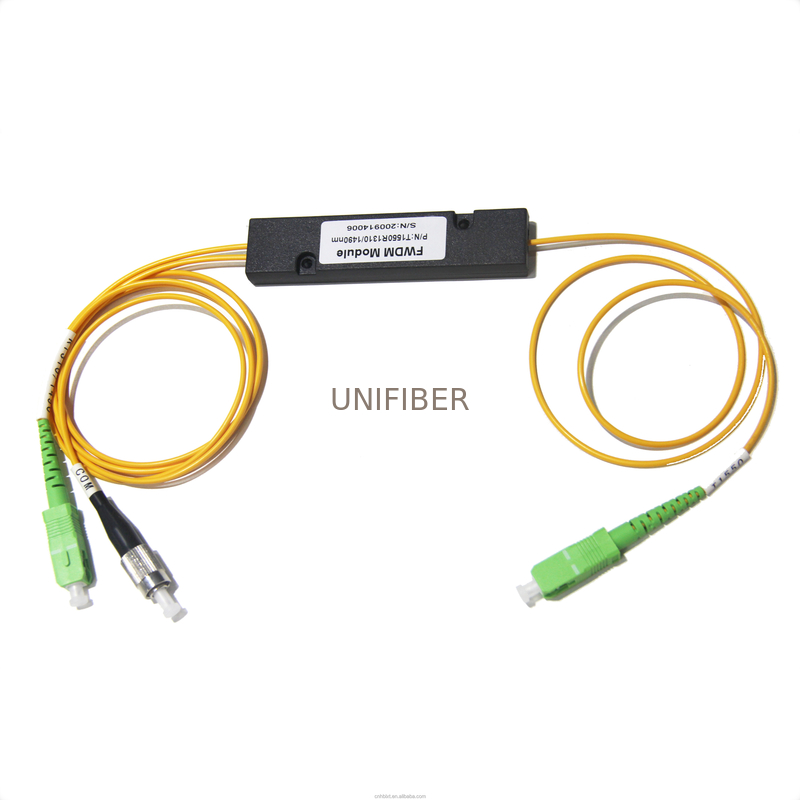

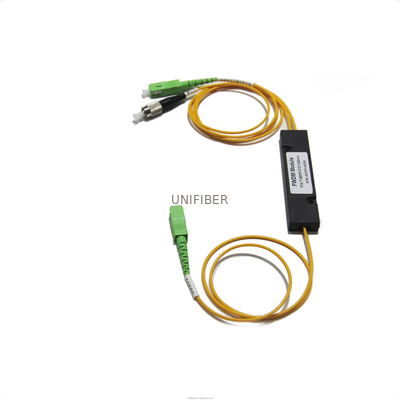

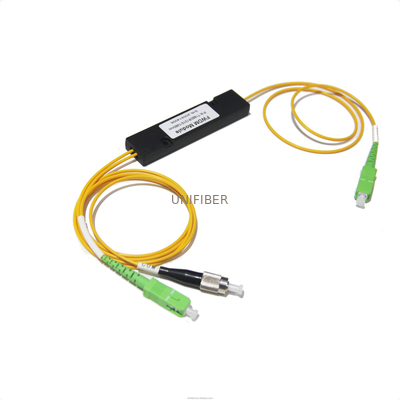

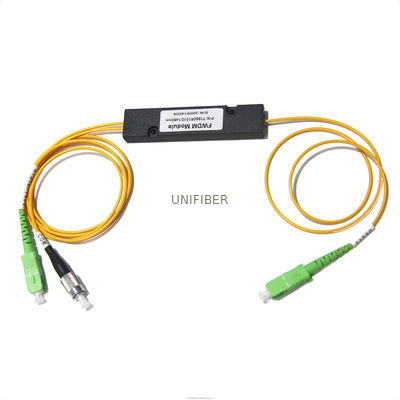

3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module

3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module
3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module 3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module 3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module

Large Image :  3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER or OEM
Certification: ROHS
Model Number: T1550 R1310/1490nm FWDM Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Blister case
Delivery Time: 3-5days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: 1x2 FWDM Splitter 1310/1490/1550nm Wavelength: T1550 R1310/1490nm
Operating Wavelength Range(nm): 1260-1620 Pass Wavelengths Band(nm): 1260-1500
Reflection Wavelengths Band(nm): 1530~1620 Package: ABS Module
Connector: SC/APC Application: FTTH Or CATV
High Light:

FTTH FWDM Splitter

,

3 Ports FWDM Splitter

,

SC APC CWDM Module

Filter WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.



Features

Wide Wavelength Range
Low Insertion Loss
High Channel Isolation
High stability and reliability



Applications

System Monitoring
Transmitters and Fiber
Fiber optical amplifier

CATV System

FTTH System

Detailed Image
Name
FWDM
Parameter
5/34 4/35 34/5
Unit
Pass band wavelength
1550+-10 1490+-10 1310+-10
1490+-10
nm
Reflection band 1 wavelength
1310+-40 1310+-40 1550+-10
nm
Reflection band 2 wavelength
1490+-10 1550+-10 1550+-10
nm
Insertion loss
Pass channel <0.6
Reflection channel <0.6
dB
Pass band rippler
Pass channel ≤0.3
Reflection channel ≤0.3
dB
Isolation
Pass channel <0.6 ≥40
Reflection channel <0.6 ≥40
dB
Return loss
>50
dB
Temperature dependent
<0.005
dB/℃
Polarization dependent loss
<0.10
dB
Polarization mode dispersion
<0.10
PS
Directivity
≥50
dB
Maximum optical powder
500
dB
Operating temperature
-20 - +70
Storage temperature
-40 - +85
