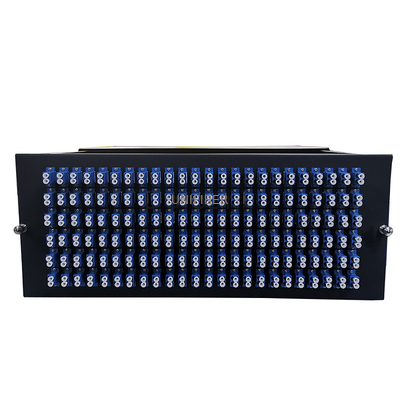

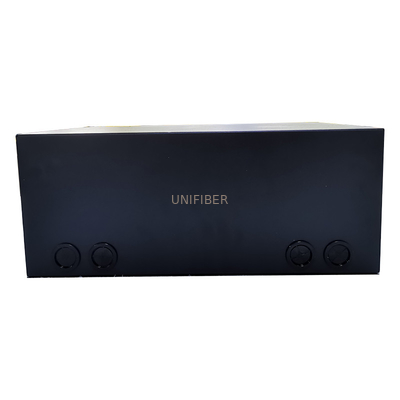

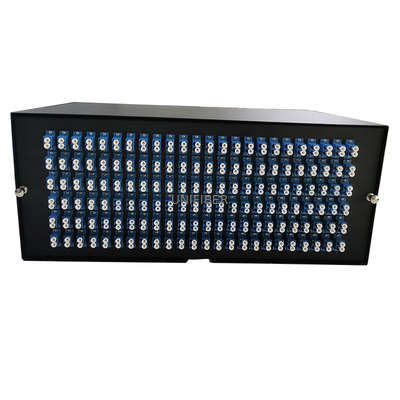

FTTB LC Duplex Rack Mount ODF 3U 19/23" 144 Ports Cold Rolled Steel

Large Image : FTTB LC Duplex Rack Mount ODF 3U 19/23" 144 Ports Cold Rolled Steel

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER or OEM
Certification:	ROHS
Model Number:	144 Ports Rack Mount ODF

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton Box
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	LC Duplex 144 Ports Rack Mount ODF	Capacity:	144 Ports
Connector:	LC Duplex	Installation:	19 Inch Rack Mount
Material:	Cold Rolled Steel	Painting Color:	Black Or Grey
Highlight:	FTTB Rack Mount ODF , LC Duplex Rack Mount ODF , 3U Fiber Patch Panel Enclosure

3U 19 inch LC Duplex 144 Ports Rack Mount ODF/Patch Panel(OTB) is mainly used as terminal equipment of fiber optical cable for optical fiber wiring, fixation, fusion, and patching.

Features

Capacity: 12-24-36-48-72-96-144 fibers, etc.

19/23inches: 1U to 5U standard installation

Color: Black, White, and grey, or customized

Several adapters can be installed: FC, SC, ST, LC

Cable ports suitable for single, ribbon and bunchy fiber cables

Size: 19 inch X3U X400mm

Application

- FTTH, FTTx, FTTB

- LAN

- Data centers

- Local area network etc

P/N	Installation	Connector Ports	Size	Weight(kg)
Rack Mount ODF-12	19" or 23"	12	30030060mm	17.1
Rack Mount ODF-24	19" or 23"	24	35038070mm	11
Rack Mount ODF-48	19" or 23"	48	400400100mm	9
Rack Mount ODF-96	19" or 23"	72	550450140mm	7
Rack Mount ODF-144	19" or 23"	96	550* 450*160mm	5.7
