Product Details:
Payment & Shipping Terms:
|

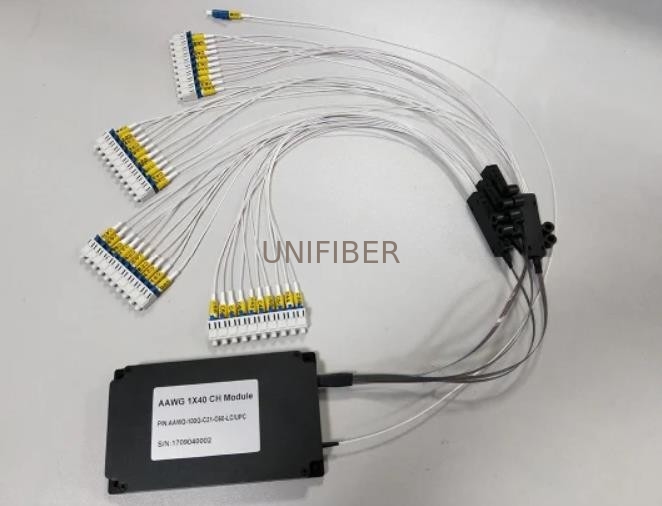

| Product: | 100GHz 40CH C21-C60 Athermal AWG DWDM Module LC/UPC | Channels: | 40 Channels |
|---|---|---|---|
| Channel Space: | 100GHz | Filter Shape: | Gaussian, Broad Gaussian, Flat Top Is Optional |
| Package: | Module, Rack, Special Is Optional | Connector: | LC/UPC |
| High Light: | 40CH AWG DWDM Module,LC UPC DWDM Module,250mW DWDM Division Multiplexer |
||
Athermal AWG (Arrayed Waveguide Grating) is a highperformance DWDM mux/demux device operating on 100GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics. These AWG offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. Angnet’s athermalization technology simplifies deployment of AWG multiplexers/demultiplexers by DWDM network providers.
Features:
~ 40CH 100G AWG Moduie (40CH 100G DWDM Mux Demux)
~ lnsertion Loss Ripple:1.0db
~ Optical Returnloss:40db
~ Band: C-Band, L-Band, C+L-Band, Customize is optional
~ Number of Channeis:16CH,32CH,40CH,48CH,Special is optional
~ Spacing:50G,100G,200G,Special is optional
~ Filter Shape: Gaussian, Broad Gaussian, Flat Top is optional
~ Package: Module, Rack, Special is optional
~ Fiber Length:0.5m,1m,1.5m,2m,2.5m,3m,Specify is optional
~ ln/Out Connector:None,FC/APC,FC/PC,SC/APC,SC/PC,LC/APC,LC/PC,ST/UPC,Specify is optional
Specifiation:
| Parameter | Specifications | Unit | Comment | ||
| Min | Max | ||||
| Input Channel | 1 | ||||
| Output Channel | 40 | 32, 48 channels available | |||
| Channel Spacing | 100 | GHz | |||
| Reference Passband | -12.5 | 12.5 | GHz | ||
| Wavelength Accuracy | -50 | 50 | pm | Relative to ITU Grid | |
| 1dB Bandwidth | 0.2(G) 0.4(F) |
nm | G-Gaussion Type F-Flat top Type | ||
| 3dB Bandwidth | 0.4(G) 0.6(F) |
nm | |||
| I.L | 6 | dB | Worst case in ITU passband | ||
| I.L UNI. | 1 | dB | |||
| Ripple | 0.7 | dB | Loss variation in ITU passband | ||
| PDL | 0.5 | dB | Max. value in ITU passband | ||
| Adjacent Crosstalk | 25 | dB | Worst case in ITU passband | ||
| Non-Adjacent Crosstalk | 30 | dB | Worst case in ITU passband | ||
| Total Crosstalk | 22 | dB | Cumulative crosstalk of all other channels | ||
| Return Loss | 40 | dB | |||
| Maximum Continuous Optical Power | 250 | mW | Maximum input optical power | ||
| Chromatic Dispersion(CD) | -20 | +20 | ps/nm | ||
| PMD | 0.5 | ps | |||
