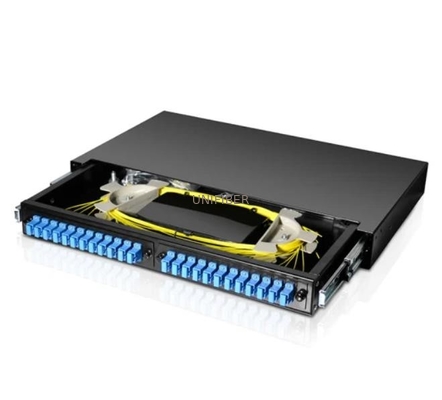

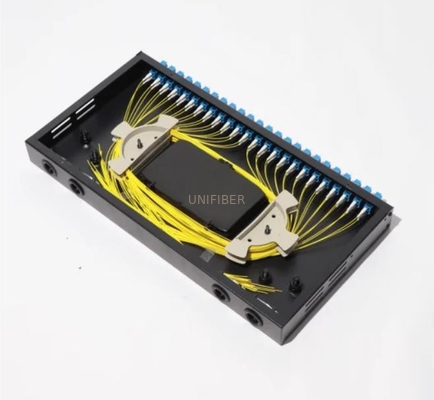

FTTB SC Fiber Optic Patch Panel 19" 1U Rack Mount ODF 24 Port FTTB

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

FTTB SC Fiber Optic Patch Panel 19" 1U Rack Mount ODF 24 Port FTTB

FTTB SC Fiber Optic Patch Panel 19" 1U Rack Mount ODF 24 Port FTTB
FTTB SC Fiber Optic Patch Panel 19" 1U Rack Mount ODF 24 Port FTTB FTTB SC Fiber Optic Patch Panel 19" 1U Rack Mount ODF 24 Port FTTB FTTB SC Fiber Optic Patch Panel 19" 1U Rack Mount ODF 24 Port FTTB

Large Image :  FTTB SC Fiber Optic Patch Panel 19" 1U Rack Mount ODF 24 Port FTTB

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: 1U 19" Rack Mount ODF 24 Port
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Product: 1U 19" Rack Mount ODF 24 Port Fiber Optic Patch Panel SC No Of Ports: 12 Or 24 Ports
Connector: SC/UPC Dimension: Standard 1U 19"
Installation: Rack Mount Color: Black Or Gray
High Light:

FTTB SC Fiber Optic Patch Panel

,

19" 1U Fiber Optic Patch Panel

,

FTTB Rack Mount Patch Panel

Unifiber supply fiber optic patch panel ODF with different adapter types, wall mounted & rack mount, 12 port, 24 port, 48 port,72 port, 96 port and even 144 port. it with individual front adapters easy to assemble and exchange, the metal frame is made by cold rolled steel and in stander 1U finished height. Fiber Optic Patch Panels also called fiber optic distribution box,can be categorized into Pre-Loaded Fiber Optic Patch Panels and Unloaded patch panels, most of them are designed for rack mounted use on fiber optic cabinet .





APPLICATION
fiber to the building (FTTB)
optical network
local area networks
wide area networks

FEATURES
19'' ,1~4 U standard structure, rack mounting
Applicable in the termination
Available for FC,LC,SC,ST adapter
Adapter and related plates easy to assemble and exchange



Item OTB-001 OTB-002 OTB-003 OTB-004 OTB-005 OTB-006 OTB-007 OTB-008
Size(H*W*D)mm 280*130*1U 485*200*1U 485*305*2U 485*200*1U 485*305*1U 430*300*1U 430*300*1U 436*300*2U
Adapter port 8 24 48 24 24 24 24 96
Max splice capacity 8 24 48 24 24 24 24 96
Suitable adapter FC,ST,SC,LC
Weight (KG) 1.5 2.6 3.4 3.5 3.7 3.9 4.5 5.5
Material Stainless steel
Type Fixed Slide Slide Fixed Slide Slide





FTTB SC Fiber Optic Patch Panel 19" 1U Rack Mount ODF 24 Port FTTB 0FTTB SC Fiber Optic Patch Panel 19" 1U Rack Mount ODF 24 Port FTTB 1
