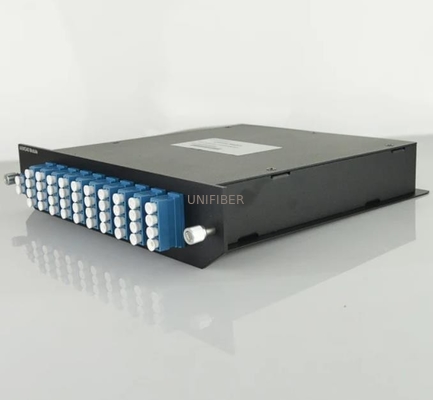

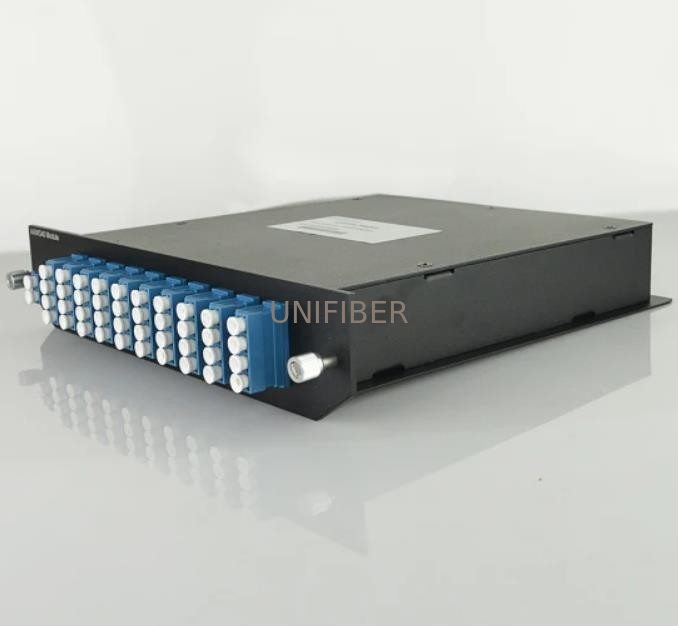

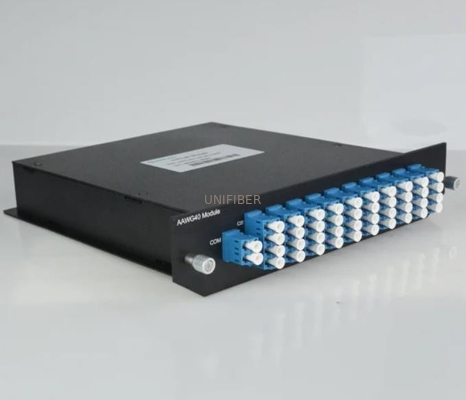

40 Channel DWDM Mux Demux Athermal AWG Rack Mount Cassettes Module

40 Channel DWDM Mux Demux Athermal AWG Rack Mount Cassettes Module
40 Channel DWDM Mux Demux Athermal AWG Rack Mount Cassettes Module 40 Channel DWDM Mux Demux Athermal AWG Rack Mount Cassettes Module 40 Channel DWDM Mux Demux Athermal AWG Rack Mount Cassettes Module

Large Image :  40 Channel DWDM Mux Demux Athermal AWG Rack Mount Cassettes Module

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: 40 Channel Athermal AWG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Product: 40 Channel Athermal AWG Rack Mount Cassettes Data Rate: 50G/100G/200G
No Of Channels: 40 Channels Connector: LC/UPC
Package: Rack Mount Cassettes Application: DWDM Transmission
High Light:

40 Channel DWDM Mux Demux

,

Athermal AWG DWDM Mux Demux

,

Cassettes Module Rack Mount Multiplexer

Athermal AWG(AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available, also suitable for outdoor applications over -30 to +70 degree in access networks



Features
High isolation
Excellent wavelength stability
High durability
 DWDM wavelengths up to 48
5V power driving



Application
DWDM
 Metro networks



Parameter Specification Units Comments
MIN TYP MAX
Number of output Channels 16/32/40/44/48   Customer define
Channel Spacing 100/200 GHz Customer define
Wavelength Accuracy -0.050   0.050 nm BOL
ITU band -0.1   0.1 nm ITU definition
1st wavelength 1528.77 nm or Customer define
Insertion Loss     5.0 dB Including COM connector, BOL
insertion Loss Uniformity     1.2 dB
PDL     0.5 dB
Ripple     0.5 dB
0.5dB Bandwidth 0.2     nm
1dB Bandwidth 0.4     nm
3dB Bandwidth 0.6     nm
20dB Bandwidth     1.2 nm
Adjacent channel isolation 25     dB
Non-Adjacent Channel Isolation 30     dB
Total Isolation 22     dB
Return Loss 45     dB Including connector
Directivity 45     dB
PMD     0.5 ps
Group Delay Ripple     1 ps
Chromatic Dispersion -20   20 ps/nm



40 Channel DWDM Mux Demux Athermal AWG Rack Mount Cassettes Module 0
