1x2 Channel Wavelength Division Multiplexer FWDM Splitter SC UPC

Large Image : 1x2 Channel Wavelength Division Multiplexer FWDM Splitter SC UPC

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	1x2 High Isolation FWDM Splitter

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable

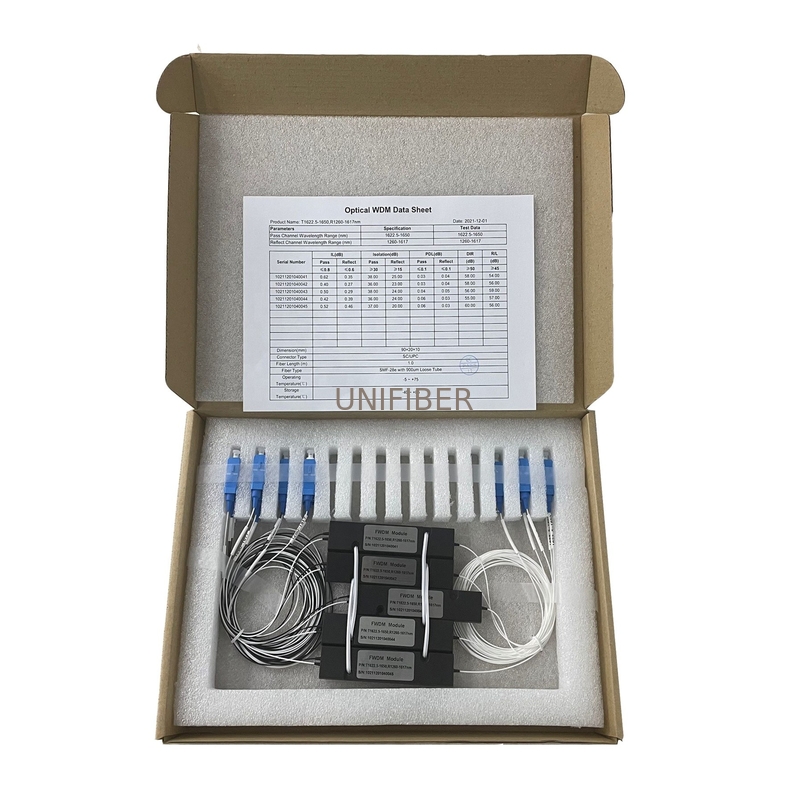

Packaging Details:	Blister case
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	1x2 High Isolation FWDM Splitter	Pass Channel Wavelength Range:	1622-1650nm
Reflect Channel Wavelength Range:	1260-1617nm	Package:	90x20x10mm
Ports:	1x2 Ports	Connector:	SC/UPC
Highlight:	1x2 Channel Wavelength Division Multiplexer , FWDM Splitter Wavelength Division Multiplexer , SC UPC Rack Mount Multiplexer

Features
l Low insertion loss
l Flat and wide bandwidth
l High channel isolation
l High stability and reliability
l Epoxy-free optical path

Applications
1. Line monitoring
2. WDM system
3. Telecommunication network system
4. Triple-Play FTTH

Specification

Parameters	Specification	Test Data

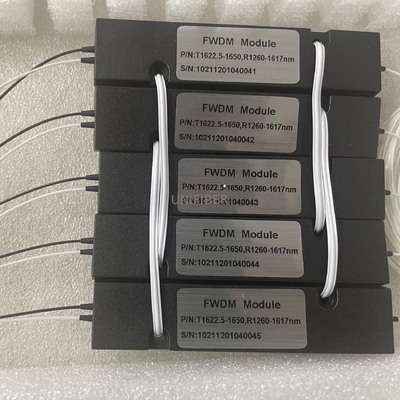

Pass Channel Wavelength Range (nm)	1622.5-1650	1622.5-1650
Reflect Channel Wavelength Range (nm)	1260-1617	1260-1617

Serial Number	IL(dB)		Isolation(dB)		PDL(dB)		DIR	R/L
	Pass	Reflect	Pass	Reflect	Pass	Reflect	(dB)	(dB)
	≤0.8	≤0.6	≥30	≥15	≤0.1	≤0.1	≥50	≥45
Dimension(mn)	90x20x10

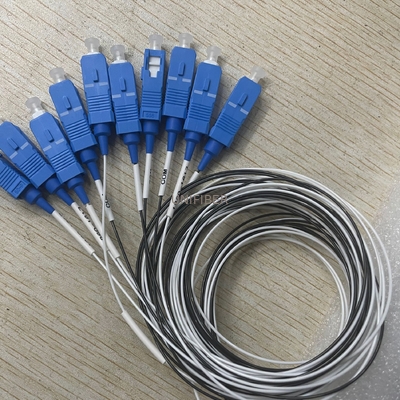

Connector Type	SC/UPC
Fiber Length (m)	1
Fiber Type	SMF-28e with 900um Loose Tube
Operating Temperature (℃)	-5 〜+75
Storage Temperature (℃)	-40~+85
