Product Details:
Payment & Shipping Terms:
|
| Product: | CWDM MUX Demux ABS Module | No Of Channels: | 4/6/8/12/18 Channels |
|---|---|---|---|

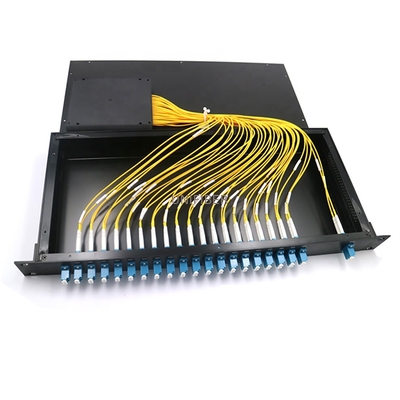

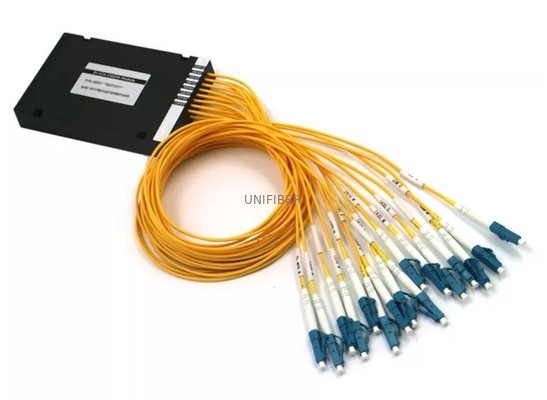

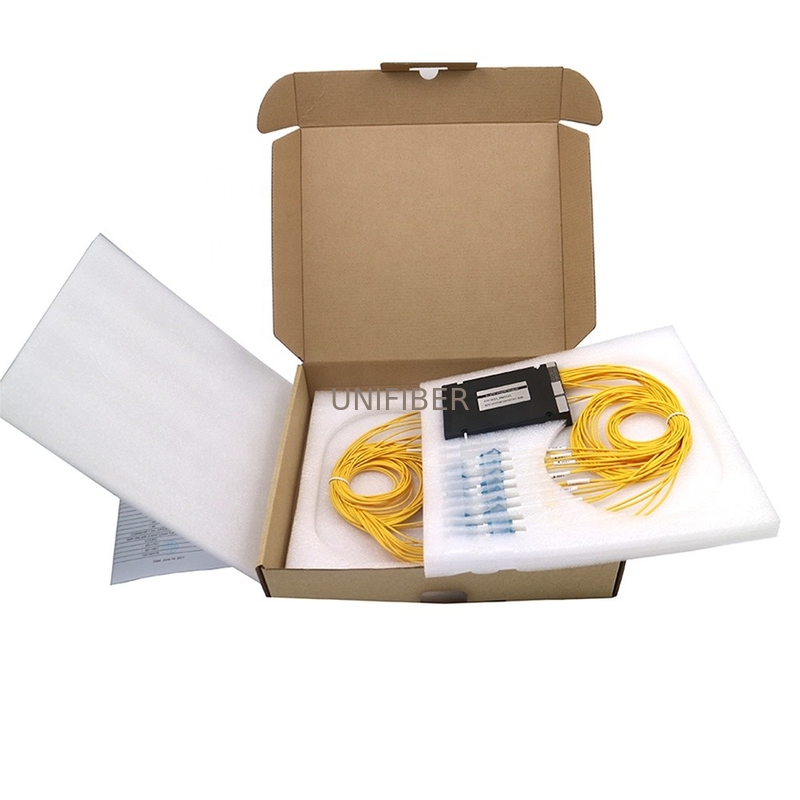

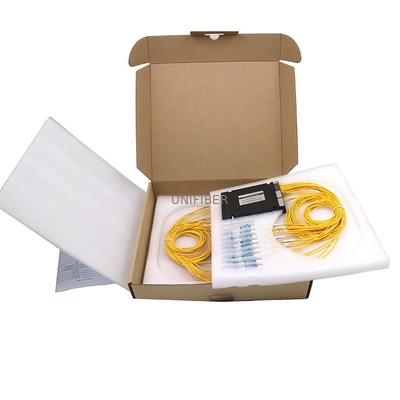

| Package: | ABS Module Or Rack Mounted | Connector: | LC/UPC |
| Configuration: | Mux/Demux | Wavelength: | 1270nm To 1610nm(1261nm-1611nm) |
| High Light: | LC UPC CWDM MUX Demux Module,Low PDL CWDM MUX Demux Module,ABS Wavelength Division Multiplexer |
||
Coarse Wavelength Division Multiplexing (CWDM) is the use of the Fiber Optical Multiplexer to different wavelengths of light signals multiplexed to a single optical fiber for transmission, at the receiving end of the link, with the Fiber Optical Multiplexer fiber mixed signal is decomposed into different wavelengths signal, connected to the respective receiving apparatus.100GHz CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.
Features
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1620nm
Wide Operating Temperature:
From -40°C to 85°C
High Reliability and Stability
Applications
CWDM System
PON Networks
CATV Links
| Parameters | Unit | CWDM Module | ||||
| Wavelength Range | nm | 1260 ~ 1620 | ||||
| Channel Center Wavelength | nm | 1270 / 1290 / … / 1610 or 1271 / 1291 / … /1611 | ||||
| Channel Spacing | nm | 20 | ||||
| Channel Passband | nm | λc ± 7.5 | ||||
| Channel No. | λ | 18 | ||||
| Insertion Loss | dB | ≤0.8 | ≤1.5 | ≤2.5 | ≤5.2 | ≤6.4 |
| Adjacent Channel Isolation | dB | ≥ 30 | ||||
| Non-adjacent Channel Isolation | dB | ≥ 40 | ||||
| Wavelength thermal stability | nm/°C | ≤ 0.003 | ||||
| Insertion loss thermal stability | dB/°C | ≤ 0.005 | ≤ 0.007 | ≤ 0.008 | ||
| PDL | dB | ≤ 0.1 | ≤0.15 | ≤ 0.15 | ≤ 0.20 | ≤ 0.25 |
| Polarization mode dispersion | ps | ≤ 0.1 | ≤ 0.15 | |||
| Directivity | dB | ≥ 50 | ||||
| Return loss | dB | ≥ 45 | ||||
| Optical Power | mW | ≤ 500 | ||||
