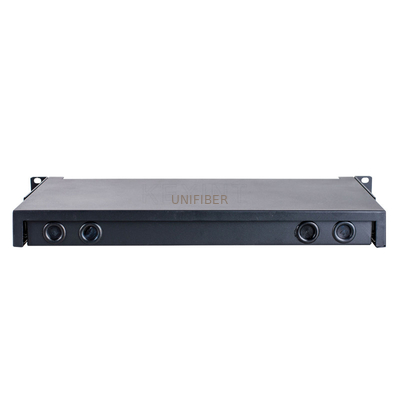

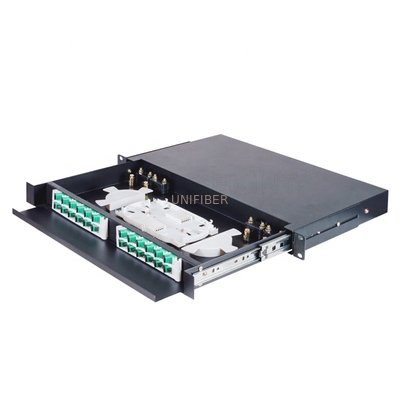

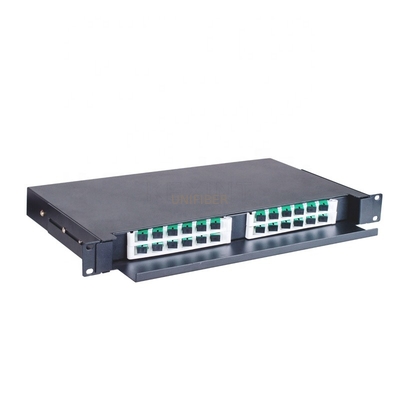

OEM 19 Inch Rack Mount Chassis 1U Angled SC LC Fiber Optic Patch Panel

Large Image : OEM 19 Inch Rack Mount Chassis 1U Angled SC LC Fiber Optic Patch Panel

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	Fiber Patch Panel 12 Ports

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	19 Inch Rackmount Chassis 1U 12/24 Ports SC/LC	Material:	Cold Rolled Steel
No Of Ports:	12 Or 24 Ports	Connector:	Angled SC Or LC
Painting Color:	Black Or Gray	Brand OEM:	Support
Highlight:	OEM 19 Inch Rack Mount Chassis , 1U 19 Inch Rack Mount Chassis , Rack Mount Fiber Optic Patch Panel

19 inch Rackmount Chassis 1U 12/24 Ports Angled SC/LC

Features:

19-inch standard size, fit for 19-inch rack, 23-inch size is available on request.

Standard size is 1U, 2U, or 4U are available on request

12,24,48,96Port optional

Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.

Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation

Provide termination, protection, connection, management of fiber optic cable

RoHS compliant

Full assembly (loaded) or empty panel optional

Black or White color

Applications:
1. Fiber Optic Transmission System
2. CATV Networks
3. Local Area Network
4. Testing/Measurement Instruments

Advantage:

UL certificate makes the quality lever be the best.

Independent research and development, Can be modified according to customer requirements

OEM package available, we can print your colored logo, print your OEM box, OEM Carton

We support fiber capacity	12/24/48/72/96/144 cores
Fiber Port	FC, SC, ST and LC
Number of ODF disks	12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12
Working temperature	-10 °C ~ +40 °C
Storage temperature	-25 ° C ~ +55 ° C
Relative humidity	≤ 85% (+30 ° C)
Atmospheric pressure	70Kpa~106Kpa
Nominal operating wavelength	850nm, 1310nm, 1550nm
Insertion loss	≤ 0.5dB
Return loss	PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB
Electrical strength	≥3KV(DC)/1min without breakdown
Insulation resistance	≥1000MΩ/500V (DC)
Life	≥1000 times
Application range	Small and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station

OEM 19 Inch Rack Mount Chassis 1U Angled SC LC Fiber Optic Patch Panel 0
