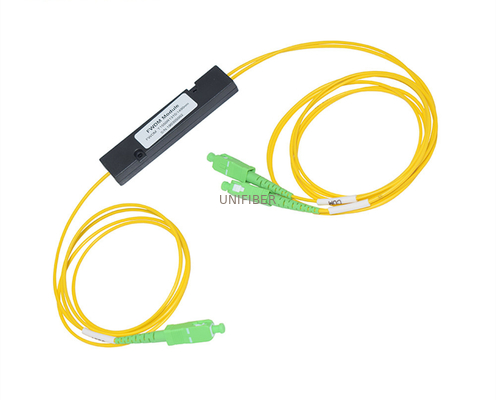

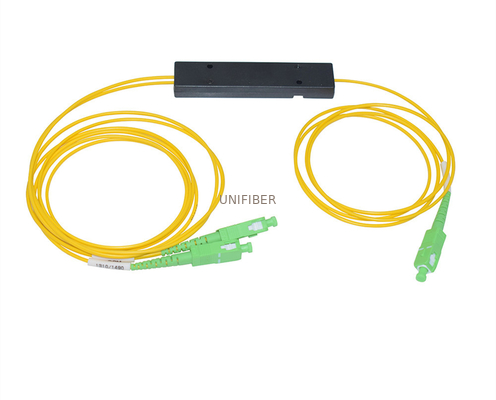

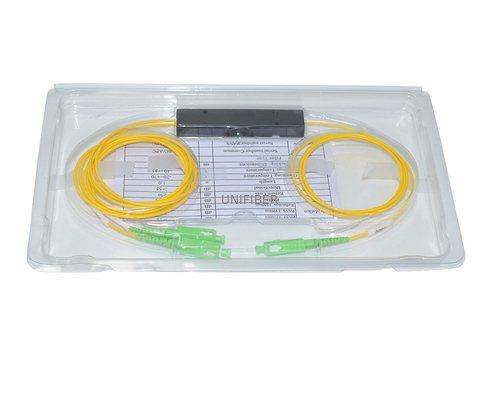

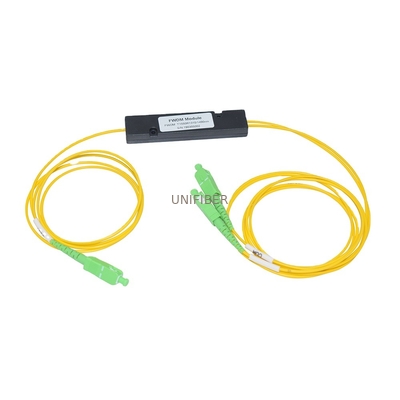

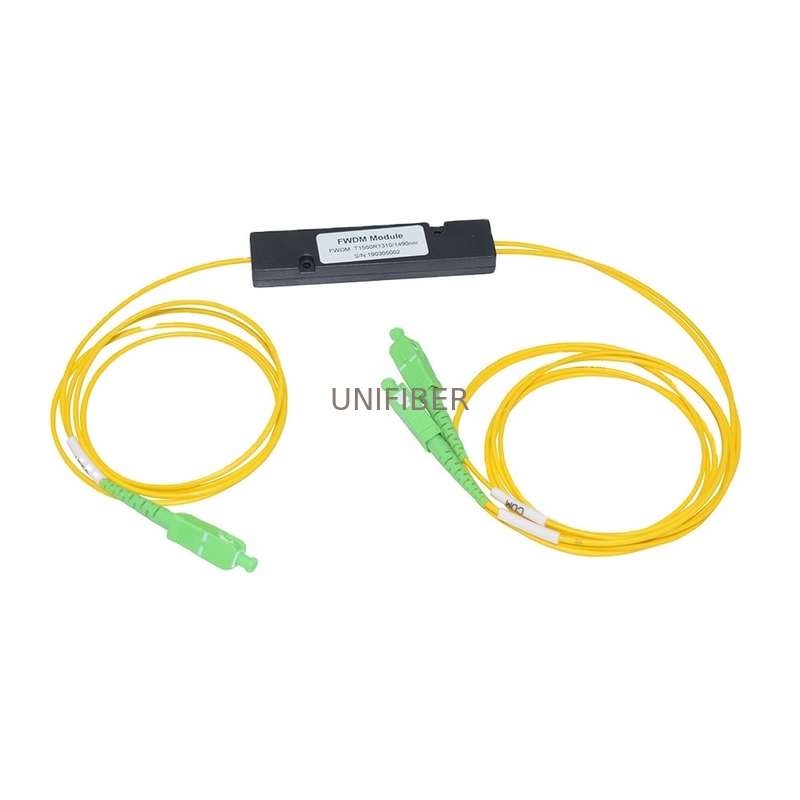

Product: | 1x2 FWDM Splitter | Operating Wavelength: | 1310nm 1490nm 1550nm |
---|---|---|---|
Ports: | 3 | Connector: | SC/APC |
Package: | ABS Module | Application: | CATV |
High Light: | 1550nm Wavelength Division Multiplexer,CATV Wavelength Division Multiplexer,SC APC FWDM Splitter |
Features
Wide Wavelength Range
Low Insertion Loss
WDM system
High Channel Isolation
High stability and reliability
Applications
System Monitoring
WDM system
Transmitters and Fiber
Fiber optical amplifier
Fiberoptic lnstruments
Parameter | FWDM 4/35 | FWDM 5/35 | FWDM 35/5 | |
Pass Band Wavelength Range (nm) | 1480~1500 | 1540~1560 | 1260~1360 & 1480~1500 | |
Reflection Band1 Wavelength Range (nm) | 1260 ~ 1360 | 1260 ~ 1360 | 1540~1560 | |
Reflection Band1 Wavelength Range (nm) | 1540~1560 | 1480~1500 | ||
Insertion Loss (dB) | Reflect Channel | ≤0.6 | ||
Pass Channel | ≤0.8 | |||
Pass Band Rippler(dB) | <0.3 | |||
Isolation (dB) | Reflect Channel | > 15 | ||
Pass Channel | >30 | |||
Insertion Loss Temperature Sensitivity (dB/°C) | <0.005 | |||
Polarization Dependent Loss (dB) | <0.1 | |||
Polarization Mode Dispersion (ps) | <0.1 | |||
Directivity (dB) | >50 | |||
Return Loss (dB) | >50 | |||
Maximum Power Handling (mW) | 500 | |||
Operating Temperature (°C) | -20 ~+70 | |||
Storage Temperature (°C) | -40 ~+85 | |||
Package Dimension (mm) |
1. Φ5.5 x L34(for 900um Loose tube or bare fiber )) 2. L90xW20xH9.5(for 2.0 or 3.0mm Cable) |
