4 Channel CWDM Mux Demux Module Ultra Compact 1270nm 1610nm

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

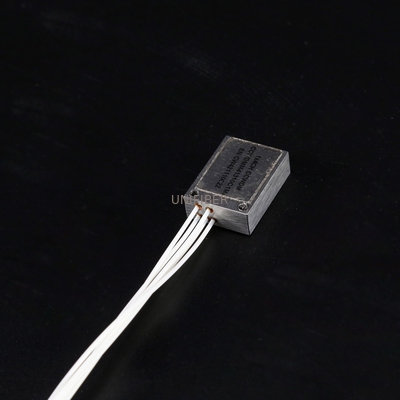

4 Channel CWDM Mux Demux Module Ultra Compact 1270nm 1610nm

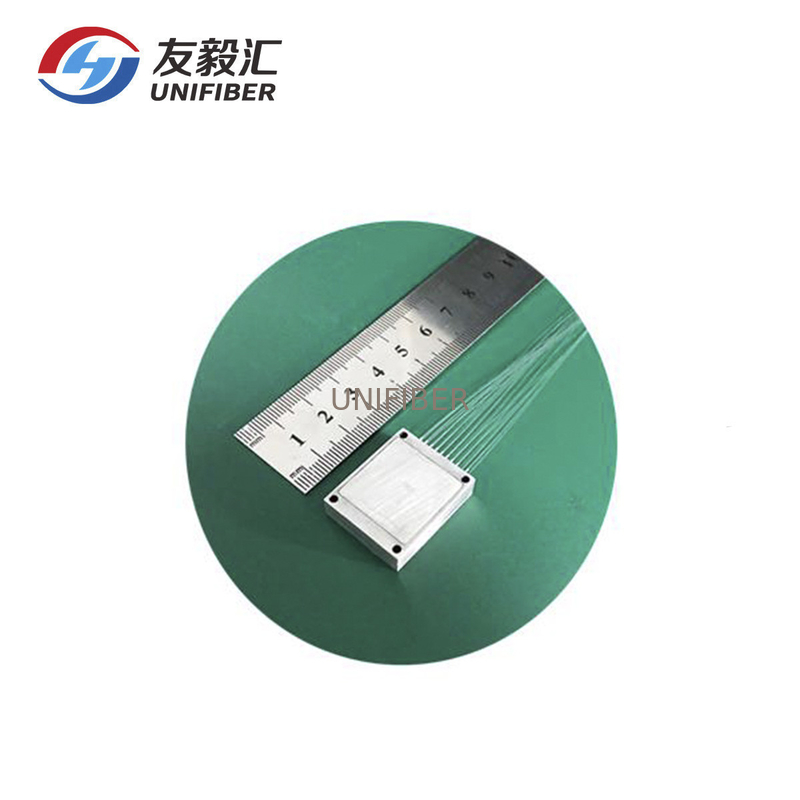

4 Channel CWDM Mux Demux Module Ultra Compact 1270nm 1610nm
4 Channel CWDM Mux Demux Module Ultra Compact 1270nm 1610nm 4 Channel CWDM Mux Demux Module Ultra Compact 1270nm 1610nm 4 Channel CWDM Mux Demux Module Ultra Compact 1270nm 1610nm 4 Channel CWDM Mux Demux Module Ultra Compact 1270nm 1610nm

Large Image :  4 Channel CWDM Mux Demux Module Ultra Compact 1270nm 1610nm

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: Ultra Compact CWDM Mux Demux
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Product: Ultra Compact CWDM Mux Demux Configuration: Mux Demux
No Of Channels: 4 8 16 18 Channels Channel Center Wavelengths: 1270~1610nm
Operating Wavelength: 1260~1620nm Channel Spacing: 20nm
Fiber: 250um Corning Clear Curve Fiber, Or 0.9mm Loose Tube Dimension: Ultra Compact
High Light:

4 Channel CWDM Mux Demux Module

,

CWDM Mux Demux Module1610nm

,

Ultra Compact CWDM Mux Demux

4/8/16/18 Channel Ultra Compact CWDM Mux Demux 1270~1610nm

4/8/16/18 Channel Ultra Compact CWDM Mux Demux Module series products are based on thin film filtering technology and free space optical path compression technology Unifiber’ Ultra compact CWDM products are of ultra-small size, ultra-low insert loss, ultra-high reliability and ultra-wide operating temperature range, which are widely applied in transceivers and CWDM network system. With the capability of optical simulation, finite element analysis and fine manufacturing, Unifiber can not only provide products with excellent performance, but also provide customers with unique solutions.



Features

Low insertion loss.

High wavelength accuracy

Extended temperature range

Excellent thermal stability

Extremely small size


Applications

High speed transceivers

CWDM systems

Metro and Access networks

CATV network



Main specifications

Parameters specifications Unit
通道数/ Channel number 4 8 16 18
中心波长/ Channel Center Wavelengths 1270~1610 nm
工作波长范围/ Operating Wavelength 1260~1620 nm
通道间隔/ Channel Spacing 20 nm
带宽/ Channel Passband lc ± 6.5 nm
插入损耗/ Insertion Loss <=1.2 <=1.5 <=2.0 <=2.5 dB
抖动/ Ripple over Pass Band <= 0.5 dB
隔离度/ Isolation 相邻通道/ Adjacent >= 30 dB
非相邻通道/Non-adjacent >= 40 dB
偏振损耗/ Polarization Dependent Loss <= 0.2 dB
方向性/ Directivity >= 50 dB
回波损耗/ Return Loss >= 45 dB
工作温度/ Operating Temperature -40 ~ +85 °C
存储温度/ Storage Temperature -40 ~ +85 °C
尺寸/ Dimension 20x8x6.5 21*15.5*6.5 25*22.8*6.5 28x22.5x6.5 mm
光纤类型/ Fiber 250um Corning Clear Curve Fiber, Or 0.9mm loose tube

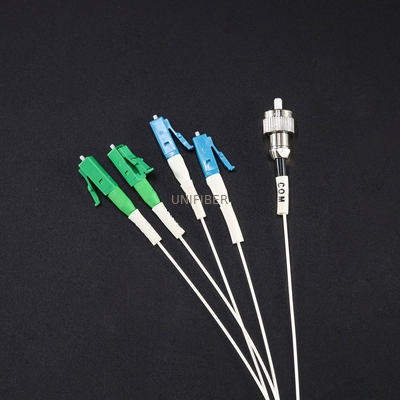

4 Channel CWDM Mux Demux Module Ultra Compact 1270nm 1610nm 0

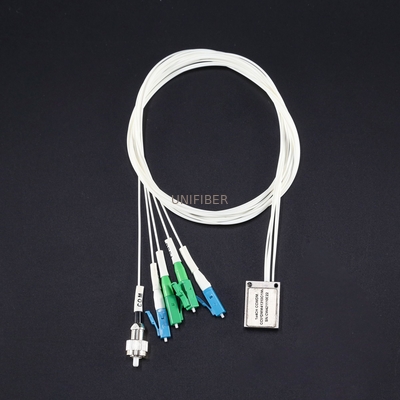

4 Channel CWDM Mux Demux Module Ultra Compact 1270nm 1610nm 1
