Features: | Ultra Compact Dimension | Product: | Ultra Compact DWDM Mux Demux |
---|---|---|---|
Channels: | 4/6/8/12/16 | Channel Spacing: | 100G 200G |
Initial WavelengSpecifyth: | Specify | Fiber Length: | 0.5m 1m Or Others |
Connector Type: | Specify | ||
High Light: | Ultra Compact DWDM Mux Demux Module,200G DWDM Mux Demux Module,16 Channels Passive DWDM Mux Demux |

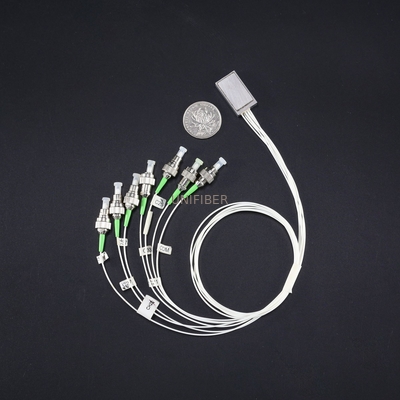

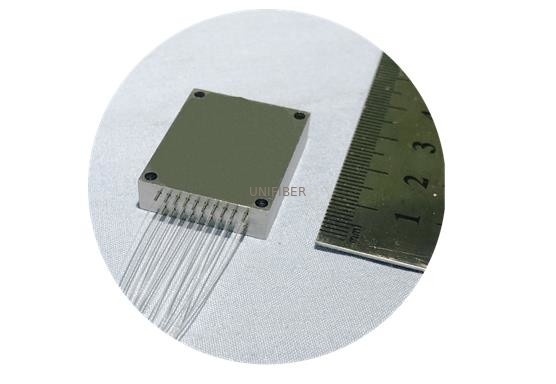

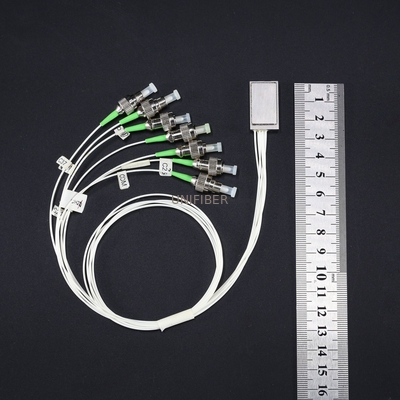

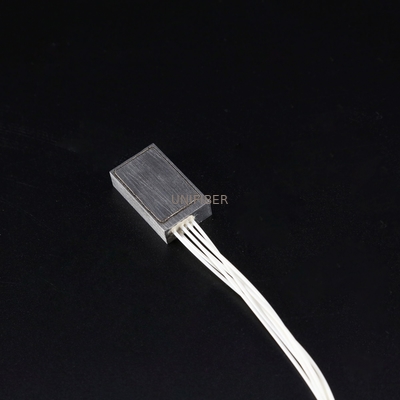

ITU 100G 200G Ultra Compact DWDM Mux Demux 4/6/8/12/16 Channels Passive Module
Based on TFF and Free-space technology, taking patent advantage of optical path Zig-Zag design of multi-layers and all glass structure, Unifiber’ UC-DWDM devices are of ultra-small size, extreme low insert loss, high reliability and excellent performance in comparing with traditional Three-port cascaded DWDM modules, they’re truly idea WDM gadgets which totally meet demand of new generation communication trend: smaller footprint, higher performance and energy efficient.
Features
Extreme small footprint and fiber in and out on the same side, easily to manage;
Extreme low insertion loss, to improve quality and to extend transmission distance;
Excellent thermal stability to work at wide operating temperature range;
Each channel can be adjusted individually, to get high wavelength accuracy;
Extremely compressed optical path, avoiding dispersion problems caused by optical path compensation between channels, excellent channel-to-channel uniformity;
Stainless steel house, laser welding package, metal tube to protect fiber, suitable for harsh environment
Application
Long-haul transmission, including 10/1G Ethernet, SDH/SONET,
16/8/4/2/1G Fibre Channel, FTTx and CATV, and for its small footprint
UC -DWDM is also used to be integrated inside DWDM transceiver to save space for laser and PD devices.
Specification
Parameters | specifications | Unit | |||||
通道数/ Channel number | 4 | 6 | 8 | 12 | 16 | ||
中心波长/ Channel center wavelengths (nm) | ITU | nm | |||||
通道间隔/ Channel spacing | 100/ 200 | GHz | |||||
带宽/ Channel passband | lc ± 0.11 | lc ± 0.25 | nm | ||||
插入损耗/ Insertion loss | <=1.5 | <=1.5 | <=2.0 | <=2.5 | <=3.0 | dB | |
纹波/ Ripple over pass band | ≤0.5 | dB | |||||
隔离度/ Isolation | 相邻通道/Adjacent | >= 30 | dB | ||||
非相邻通道/Non-adjacent | >= 40 | dB | |||||
偏振损耗/ Polarization dependent loss | <= 0.3 | dB | |||||
方向性/ Uniformity | <=0.5 | <=1 | <=1 | <=1.5 | dB | ||
回波损耗/ Return loss | >= 45 | dB | |||||
工作温度/ Operating temperature | -40 ~ +85 | °C | |||||
最大拉伸载荷/ Max Tensile Load | 5 | N | |||||
波长温度灵敏度/ Wavelength Temperature Sensitivity |
<= 0.003 | Nm/℃ | |||||
存储温度/ Storage temperature | -40 ~ +85 | °C | |||||
尺寸/ Dimension | 25x10.8x6.5 | 28x14.4x6.5 | 30x23x6.5 | mm | |||
连接器类型/ Connector | Customer Specified | ||||||
光纤类型/ Fiber type | Corning Clear Curve Fiber, 900um jacket | Corning Clear Curve Bare fiber |
