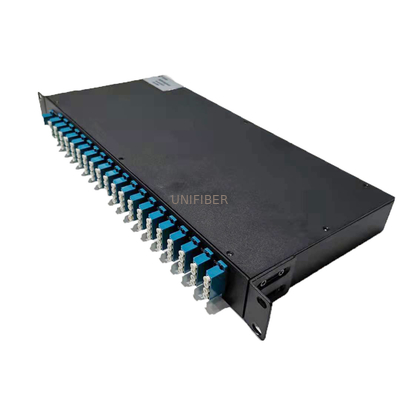

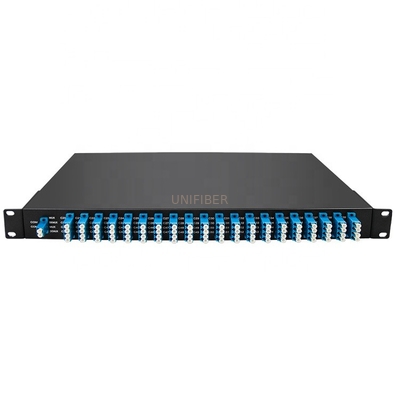

Rack Mount Passive CWDM Mux Demux Module AAWG Athermal 40CH 48CH 100GHz 200GHz LC UPC

Large Image : Rack Mount Passive CWDM Mux Demux Module AAWG Athermal 40CH 48CH 100GHz 200GHz LC UPC

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	DWDM Athermal AAWG Module Mux Demux

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	DWDM Athermal AAWG Module Mux Demux	Channel Spacing:	50/100/200Ghz
Channels:	40/48/96 Channels	Pass Band Type:	Flat-top Or Gaussian
Package:	Rack Mounted	Connector:	LC Duplex
Wavelength:	C20~C60	Fiber:	G657A1
Application:	DWDM Systems
Highlight:	Passive CWDM Mux Demux Module , LC UPC CWDM Mux Demux Module , AAWG Athermal CWDM Mux Demux

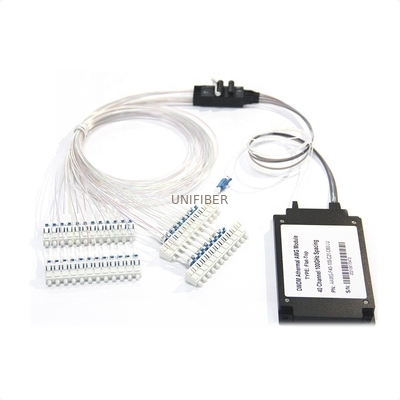

Rack Mount DWDM Athermal AAWG Flat-top/Gaussian Mux Demux Passive Module 40CH 48CH 100GHz 200GHz LC/UPC

Features

100G/200G ITU channel spacing

Low Insertion Loss

High channel isolation

High stability and reliabilityEpoxy-free optical patch

Application:

DWDM system

Router

Fiber optical amplifier

CATV System

Specification:

			Parameter

			Unit

			Value

			Pass Band Type

			Flat-top

			Gaussian

			Channel Spacing

			GHz

			100

			Channel Number

			48/40

			Wavelength Accuracy

			nm

			±0.05

			1dB Pass Band

			nm

			≥0.38

			0.2

			3dB Pass Band

			nm

			≥0.58

			0.4

			Insertion Loss

			dB

			≤6.0

			5.0

			Ripple

			dB

			≤0.5

			Uniformity

			dB

			≤1.5

			Adjacent Crosstalk

			dB

			≥23

			Non-adjacent Crosstalk

			dB

			≥29

			Total Crosstalk

			dB

			≥21

			Polarization Dependent Loss (PDL)

			dB

			≤0.5

			PMD2

			ps

			≤0.5

			Chromatic Dispersion2

			ps / nm

			±20

			Return Loss

			dB

			≥40

			Fiber fiber

			Input Port

			mm

			Φ0.9

			Output Ribbon

			-

			-

			Fan Out

			mm

			Φ0.9

			Operation Temperature

			°C

			-5～+65

			Storage Temperature

			°C

			-40～+85

Rack Mount Passive CWDM Mux Demux Module AAWG Athermal 40CH 48CH 100GHz 200GHz LC UPC 0

Tag:

Contact Person: Kerry Sun

Tel: +86-135-9019-2305

Fax: 86-755-29239581

Other Products

8 Channel CWDM Mux Demux Wavelength Division Multiplexer Single Dual Fiber

Product: CWDM Mux Demux Passive Module

Channel Spacing: 20nm

No of Channels: 4/8/12/18 Channels

Wavelength: 1270~1610nm

1U Rack Mount 8 Channel Multiplexer CWDM Mux Demux LGX Single Fiber

Product: Passive CWDM Module

No of Channels: 8

Wavelength: 1270-1610nm

Channel Spacing: 20nm

100Ghz 40CH Wavelength Division Multiplexer DWDM AAWG Mux Demux

Product: Rack Mount DWDM AAWG

Channels: 40

Wavelength: CH21~CH60

Connector: LC/UPC

Low Loss 18 Channels CWDM Mux Demux 1U 19 Inch Rack Mount Chassis LC/UPC

Product: CWDM Rack Mount Chassis

No of Channels: 18

Wavelength: 1260~1620nm

Channel Spacin: 20nm

Compact CWDM mux/demux, 8+1CH (UPG), 1270-1410nm, 0.9mm, with LC/APC

Rack Mount Passive CWDM Mux Demux Module AAWG Athermal 40CH 48CH 100GHz 200GHz LC UPC

Rack Mount Passive CWDM Mux Demux Module AAWG Athermal 40CH 48CH 100GHz 200GHz LC UPC

Passive CWDM Mux Demux Module

LC UPC CWDM Mux Demux Module

AAWG Athermal CWDM Mux Demux

fiber optic multiplexer,

cwdm passive multiplexer,

coarse wavelength division multiplexer

Parameter		Unit	Value
Pass Band Type			Flat-top	Gaussian
Channel Spacing		GHz	100
Channel Number			48/40
Wavelength Accuracy		nm	±0.05
1dB Pass Band		nm	≥0.38	0.2
3dB Pass Band		nm	≥0.58	0.4
Insertion Loss		dB	≤6.0	5.0
Ripple		dB	≤0.5
Uniformity		dB	≤1.5
Adjacent Crosstalk		dB	≥23
Non-adjacent Crosstalk		dB	≥29
Total Crosstalk		dB	≥21
Polarization Dependent Loss (PDL)		dB	≤0.5
PMD2		ps	≤0.5
Chromatic Dispersion2		ps / nm	±20
Return Loss		dB	≥40
Fiber fiber	Input Port	mm	Φ0.9
	Output Ribbon	-	-
	Fan Out	mm	Φ0.9
Operation Temperature		°C	-5～+65
Storage Temperature		°C	-40～+85
