Product Details:
Payment & Shipping Terms:
|
Product: | 1U 96 Core Rack Mount Patch Panel | No Of Ports: | 48/96 Ports |
---|---|---|---|
Connector: | Duplex LC | Tray Capacity: | 48 Core |
No Of Trays: | 2 | Material: | Cold Rolled Steel |
Color: | Black | ||
High Light: | Sliding Rack Mount Patch Panel,96 Core Rack Mount Patch Panel,2 Splice Trays Fiber Optic Patch Panel |

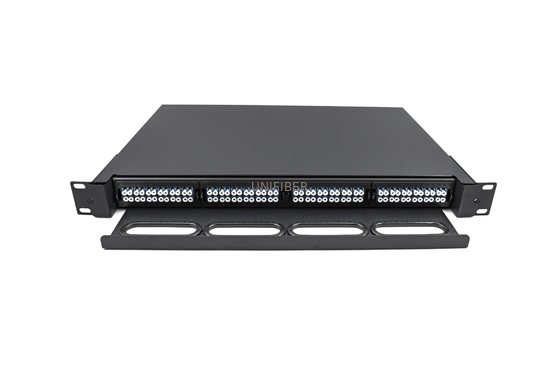

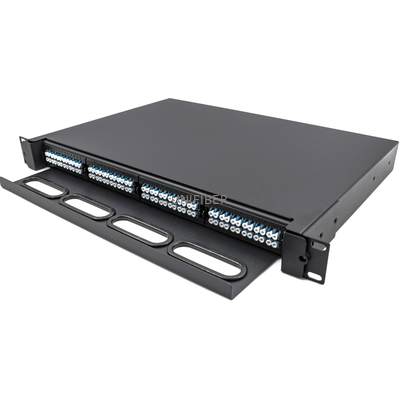

The HD rack mount patch panel made of cold rolled steel sheet,available for adapters installation such as FC,SC,ST,LC etc.it support onsite equipment connect and using immediately, and finish data center development fast. It’ ideal solution for increasingly high-density cable management of data center. The design of enclosure allows for easy connection to the LC adapters using multi-fiber optical patch cords (sold separately) and is slidable in a standard 19in rack or cabinet frame. MPO/MTP Cassatte Module is also optional.
Feature
-This patch panel support up to 96 single fiber splicing;

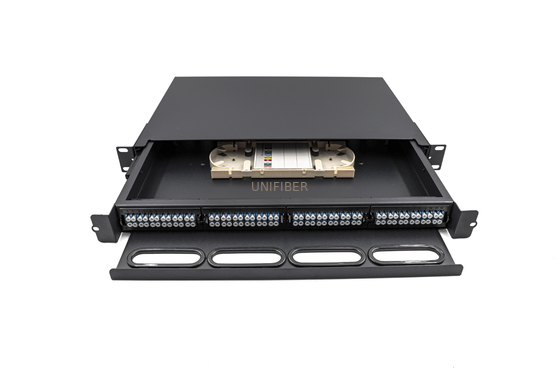

-The rack mount ODF loaded with 2 splice trays, each trays support 48 fiber splicing;
-The fiber enclosure with 4 separate changeable adapter plates;
- It can also support with MPO/MTP cassette modules;
-It adopts standard unit structure size and is suitable for the installation of various cabinets and racks;
-The back and side support multiple optical cables to enter, the optical cable inlet is enlarged to facilitate multiple optical
cables to enter, and fixed with optical cable fixing column or metal reinforcement.
Application
-Data Center infrastructure;
-Storage Area Network;
-Fiber Channel;
-Emerging 40 and 100Gbps protocols compatible.
Specificaiton
