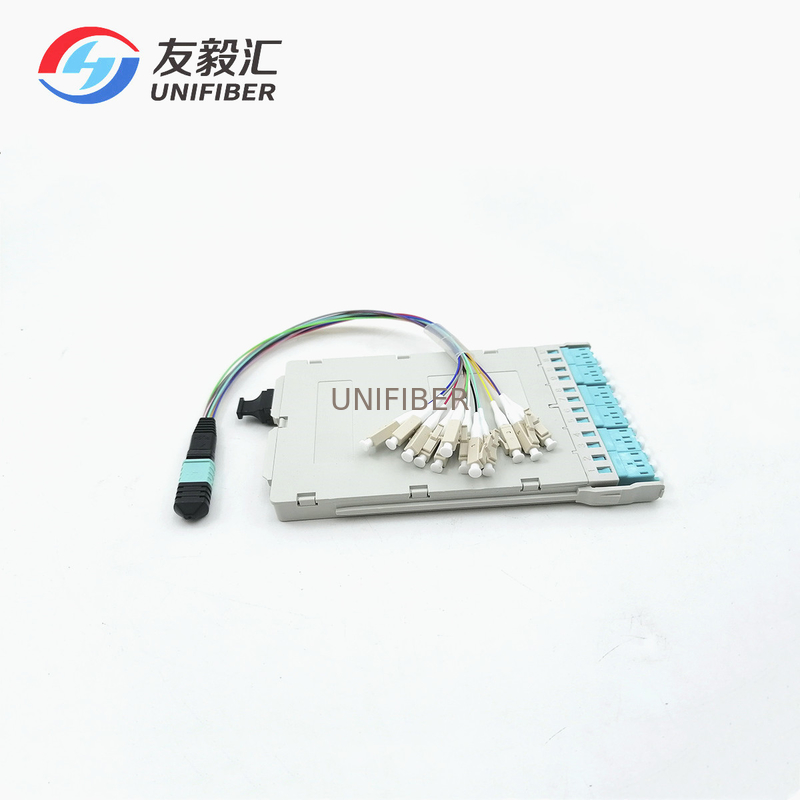

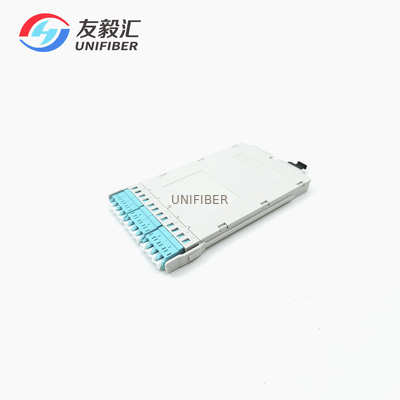

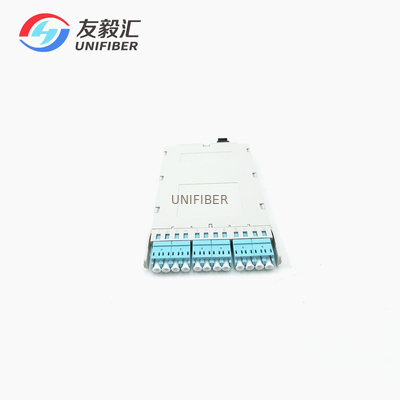

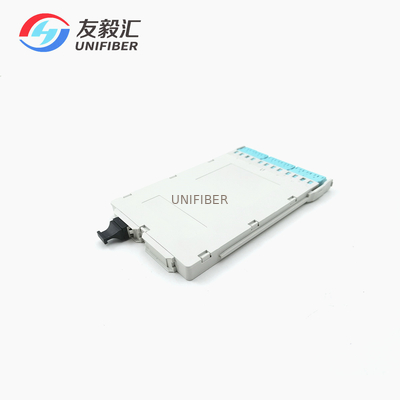

Product: | Ultra High Density 12 Fiber MPO-LC Cassette Module | Capacity: | 12 Core |
---|---|---|---|
Fiber Type: | Om3 | Connector: | MPO Male To LC Duplex |
Polarity: | Type B | Application: | High Density MPO Patch Panel |
High Light: | 500N MPO Cassette Module,12 Fiber MPO Cassette Module,Om3 Fiber Optic Cassette Module |
MPO/MTP Fiber Cables assemblies are terminated with MPO/MTP connector on both end.MPO cables are best choice for high density fiber networks.It's specifically designed for fast ethernet, fiber channel, data center and gigabit ethernet applications.The harness cable is used for connecting 10G SFP+ into a MPO adapter panel and MPO trunk.
Application:
MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.
· The data center application with high density environment
· The optical fiber to the building
· The internal connector application in fiber equipment such as Splitter,
· 40G / 100G SFP and SFP
Features:
High Performance in IL & RL
4,8,12 and 24 fiber connector terminations and assemblies
Designed for low loss and standard loss SM and MM applications
Economical solution for mass-termination of fiber
Suitable for MPO/MTP application
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Connector Type | 12-Fiber Or 24Fiber MPO/MTP (non-pinned) |
Polish | PC(MM); APC(SM) |
Housing Colour | MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow) |
Insertion Loss, Typical (MTP/MPO) | ≤ 0.10 dB |
Insertion loss, max. (MTP/MPO) | ≤ 0.3 dB |
Return loss (MTP/MPO SM) | PC >55dB; APC> 60dB |
Durability(500 Matings) | < 0.2dB |
Fiber Cable Performance | |
Fiber Type | OS2, OM1, OM2, OM3, OM4 OM5 |
Fiber Count | 12,24,48,72,96,144 cores |
Fiber Attenuation dB (OS2) | ≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm) |
Fiber Attenuation dB (OM1) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm) |
Fiber Attenuation dB (OM2) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
Fiber Attenuation dB (OM3) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
Fiber Attenuation dB (OM4) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
Min.Bandwidth:Overfilled Launch[Mhz-km] | OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm)≥500(1300nm)OM4≥3500(850nm) ≥500(1300nm) |
Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km] | |
OM3 ≥2000(850nm) OM4 ≥4700(850nm) | |
Outer diameter | 12fiber:3.0 or 5.5mm ; 24fiber:3.0 or 5.5mm |
Outer jacket Colour | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple or Aqua) |
Outer jacket material | LSZH,OFNP,OFNR |
Tensile strength | >500N |
Operating Temperature | -40 ~ +85°C |
