CATV Usage 3 Port FWDM Splitter 1550nm With SC / UPC Connector

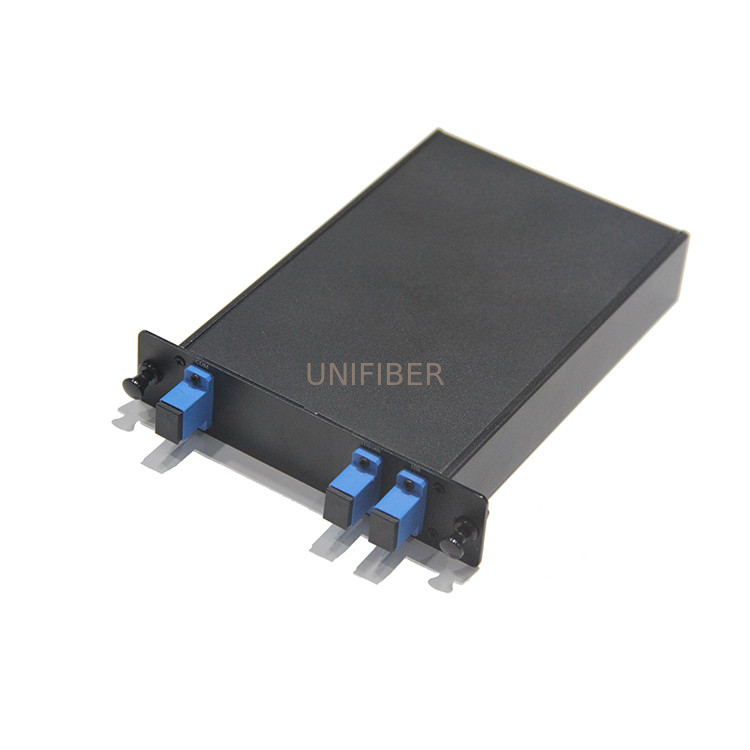

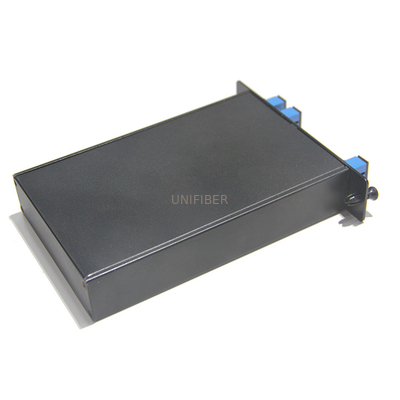

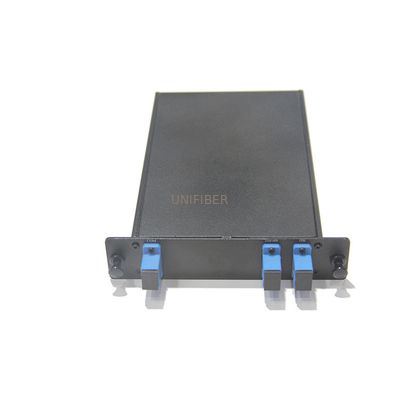

Large Image : CATV Usage 3 Port FWDM Splitter 1550nm With SC / UPC Connector

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	T1550 R1310/1490nm FWDM splitter

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Product:	3 Port FWDM Splitter Metal LGX Module	Wavelength:	T1550 R1310/1490nm
Connector:	SC/UPC	Fiber Type:	G657A1
Package:	Metal LGX Box	Application:	CATV
Highlight:	3 Port FWDM Splitter , 1550nm FWDM Splitter , FWDM Wavelength Division Multiplexer

Features:
1. Low Insertion Loss
2. Flat and Wide Bandwidth
3. High Isolation4. High Stability And Reliability
4. Epoxy- Free on Optical Path

Applications:

1. FTTH; LAN
2. WDM system
3. Fiber optical amplifier
4. CATV system

5. Line Monitoring
6. Telecommunication

Parameters		T1550 R1310&1490
Pass wavelengths band[λc] (nm)		1515-1620
Reflection wavelengths band[λc] (nm)		1260-1500
Pass Channel Insertion Loss (dB)		≤0.6
Reflection Channel Insertion Loss (dB)		≤0.5
Channel Ripple (dB)		＜0.3
Isolation (dB)	Pass Channel	＞30
	Reflection Channel	＞20
Insertion Loss Temperature Sensitivity (dB/℃)		＜0.005
Polariation Dependent Loss (dB)		＜0.1
Polarization Mode Dispersion (ps)		＜0.1
Return Loss (dB)		＞50
Directivity (dB)		＞55
Connector Type		SC/APC; SCUPC or Customized
Fiber Length (m)		1M / 1.5M / 2M or Customized
Fiber type		0.9mm 2.0mm 3.0mm
Maximum Optical Power (mw)		300
Operating Temperature (℃)		-20～+75
Storage Temperature (℃)		-40～+85
Package Dimension (mm)		902010 ; 1008010mm; 34*5.5mm; Customized LGX Case
