Product Details:
Payment & Shipping Terms:
|
| Product: | 1U 96 Core MPO To LC Rack Mount Fiber Patch Panel | Material: | Cold Rolled Steel |
|---|---|---|---|
| Ports: | 96 Core | Connector: | Duplex LC |
| Fiber TYPE: | Multimode OM3 | No Of Cassettes: | 4 |
| Application: | Data Center | ||
| High Light: | om3 rack mount fiber enclosure,96 core rack mount fiber enclosure |
||

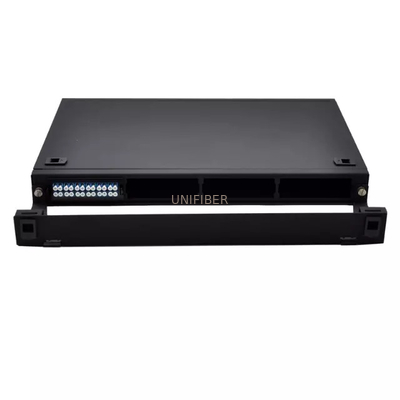

This MPO 1U Patch Panel is used in the data center cabling region and connected the ports with cable to the back of the panel. it is usually assembled in 19 inch frame rack and cabinet.
Features:

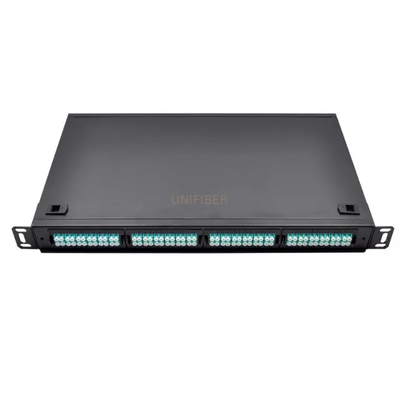

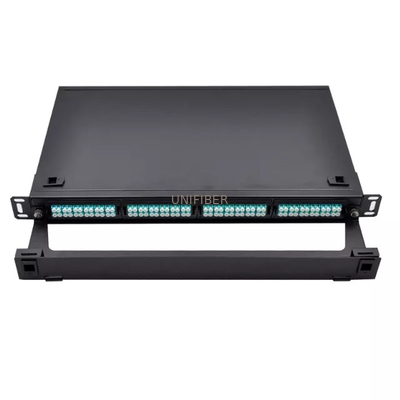

Can install 4pcs MPO cassettes,and manage 96 cores max;
Can install 4pcs MPO adapter panels,and manage 288 cores max;
Produced with high-quality cold-rolled steel sheet, the main body's depth is 1.5mm;
Removable cable management, look elegant and use conveniently;

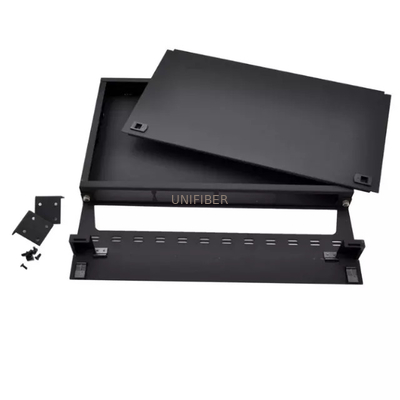

No fur, no bubble, no screw to fasten, snap-in top cover can be opened without any tools.
|
Item
|
Parameter
|
|
Model Number
|
MPB-1U / 2U
|
|
Max Capacity
|
1U - 96~192 Core / 2U - 192~384 Core
|
|
Cassettes compatible
|
1U - 4* 12/24 Duplex LC | 2U- 8*12 / 24 Duplex LC
|
|
Connector Type
|
MPO MTP LC SC FC ST
|
|
Pre-Connection
|
Optional
|
|
Material
|
SPCC(Cold Rolled Steel Sheet)
|
|
Finishing
|
Powder Coated Matt Black
|
|
Dimension (mm)
|
482.6*363.2*1U/2U
|
|
Operation Temperature
|
-20℃ ~ 70℃
|
