1u Rack Mount Fiber Patch Panel 12/24 Ports Sc / Apc

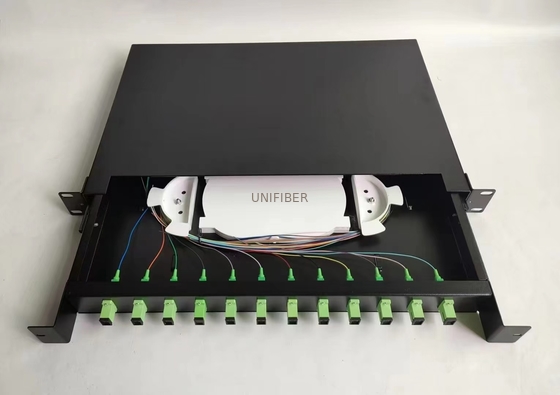

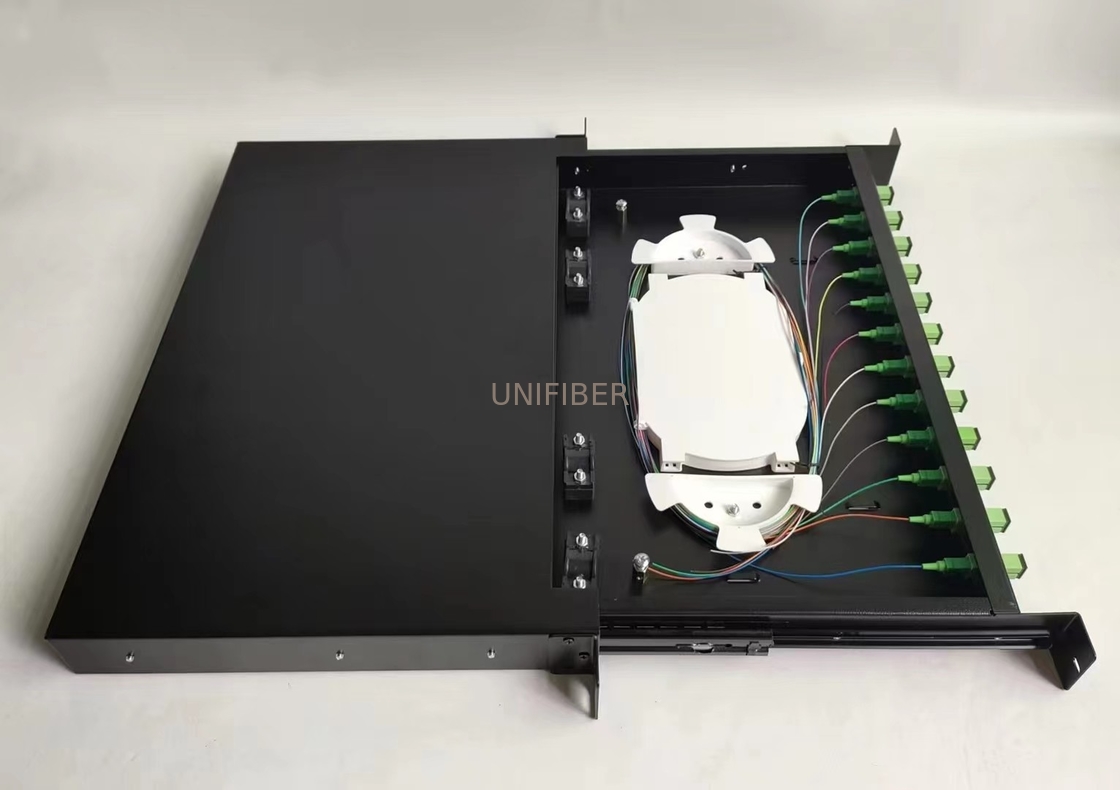

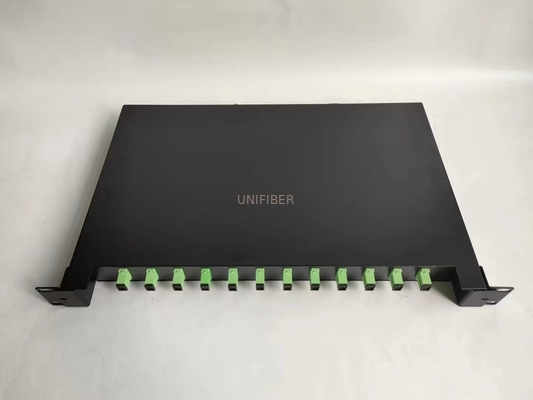

Large Image : 1u Rack Mount Fiber Patch Panel 12/24 Ports Sc / Apc

Product Details:

Place of Origin:	China
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	rack mount ODF

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	3~5 days
Payment Terms:	L/C, T/T
Supply Ability:	500pcs/day

Contact Now

Detailed Product Description

Material:	Cold Rolled Steel	Tickness:	1.2mm
Ports:	12/24 Ports	Connector:	SC Or LC
Color:	Black	Installation:	Rack Mounted
Highlight:	1u rack mount fiber patch panel , crs rack mount fiber patch panel

Fiber Optical Patch Panel is a box for protecting the optical cable and pigtail splice in the cable laying. It is mainly used for the straight-through connection and branch connection of the indoor optical cable and the fixing of the cable terminal, and functions as a pigtail storage and protection joint.

Product Features

- Standard size, light weight and reasonable structure;

- Splice tray inside changeable;

- Can be used in 19” standard distribution frame;

- Suitable for ribbon and single fiber;

- Various panel plate to fit different adapter interface;

- Front mark on the plate is easy for identification and operation;

- Come with fiber optic pigtails and adapters;

- High Quality SlideWay

- Easy for management and operation.

Product Application

- Telecommunications subscriber loop;

- Fiber to the home (FTTH);

- LAN/WAN and metro networks;

- CATV Networks;

- Other applications in Fiber optical systems.

Specification

Model	Fiber Quantity	Height	Dimension(cm)	Weight(Kg)
ODF-RS12	12	1U	45x 32x4.45	4
ODF-RS24	24	1U	45x 32x4.45	4.2
ODF-RS48	48	2U	48x32x8.9	4.31
ODF-RS96	96	2.5U	48x32x11	5.05

1u Rack Mount Fiber Patch Panel 12/24 Ports Sc / Apc 0
