Product Details:
Payment & Shipping Terms:
|
| Product: | Three Port Fiber Optic Circulator | Configuration: | Port 1 To Port 2 To Port 3 |
|---|---|---|---|
| Operating Wavelength: | 1310nm 1550nm C Band L Band C+ L Band | Fiber Type: | Corning SMF-28 |
| No Of Ports: | 3 Port Or 4 Port | Connector: | FC/UPC FC/APC Or Custom |
| High Light: | Polarization Insensitive 3 Port Optical Circulator,3 Port Optical Circulator 1310nm,Fiber Optical Circulator 1550nm |
||
Description of Polarization Insensitive 3-Port Optical Circulator
1310nm, 1550nm 3 Port Polarization Insensitive Optical Circulator that couple light from Port 1 to 2 and Port 2 to 3 and have high isolation in other directions. it widely used in bi-direction optical network communication system.
Features
Small Package Size
Low PDL
Low Insertion Loss
High Channel Isolation
Highly Stable & Reliable
Epoxy-free Optical Path
Application
Wavelength Add/Drop
Optical Amplifier
Metro Area Network
Dispersion Compensation
Parameters
|
Product
|
Polarization Insensitive 3-Port Optical Circulator
|
|
|
Configuration
|
Port 1 to Port 2 to Port 3
|
|
|
Operation Wavelength (nm)
|
1310±30 or 1550±30
|
|
|
Insertion Loss (dB)
|
Typical
|
0.6
|
|
Maximum
|
0.8
|
|
|
Typical Isolation (dB)
|
≥50
|
|
|
Minimum Isolation (dB)
|
≥40
|
|
|
Cross Talk (dB)
|
≥50
|
|
|
Polarization Dependent Loss (dB)
|
≤0.15
|
|
|
Polarization Mode Dispersion(dB)
|
≤0.1
|
|
|
Return Loss(dB)
|
≥50
|
|
|
Power Handling (mW)
|
300
|
|
|
Opterating Temperature (℃)
|
-10~+75
|
|
|
Package dimension (mm) (Steel tube)
|
Φ5.5xL50
|
|
|
Package dimension (mm) (ABS box)
|
90x20x10
|
|

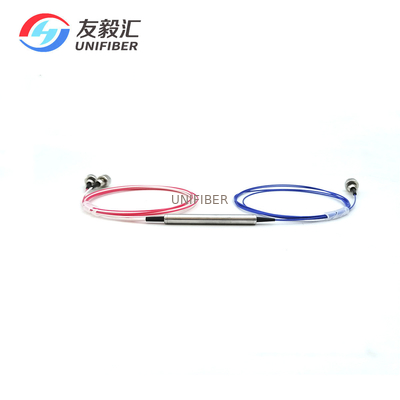

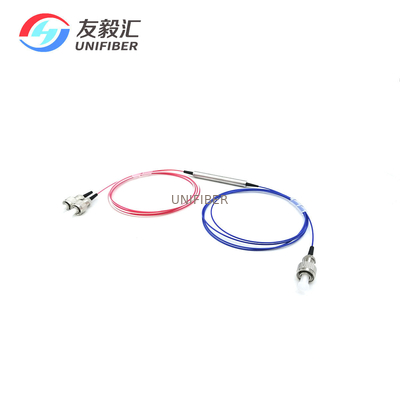

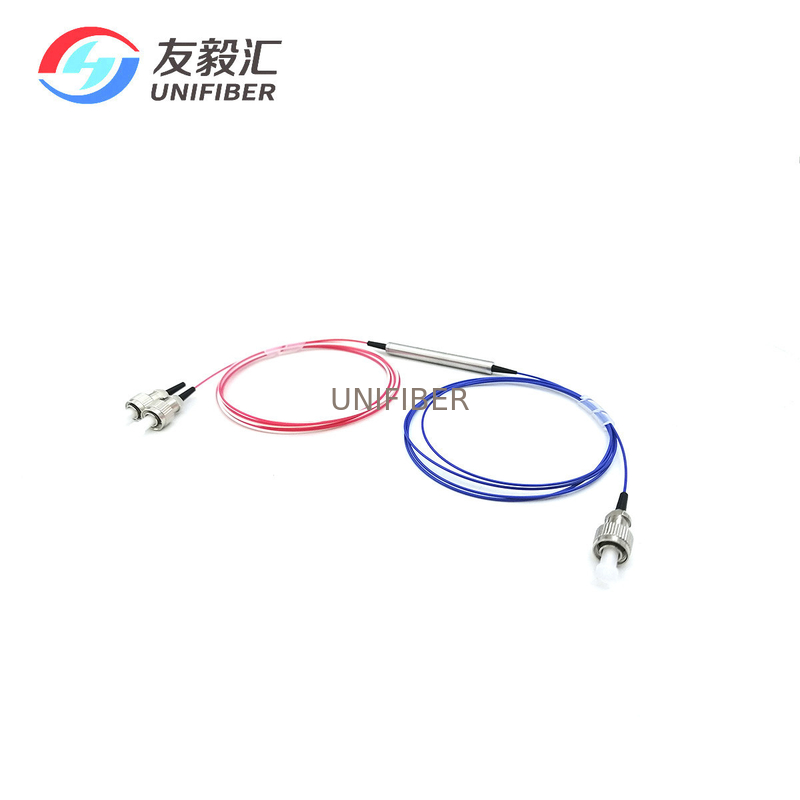

Picture of 1310nm 1550nm 3-Port Polarization Insensitive Fiber Optical Circulator
